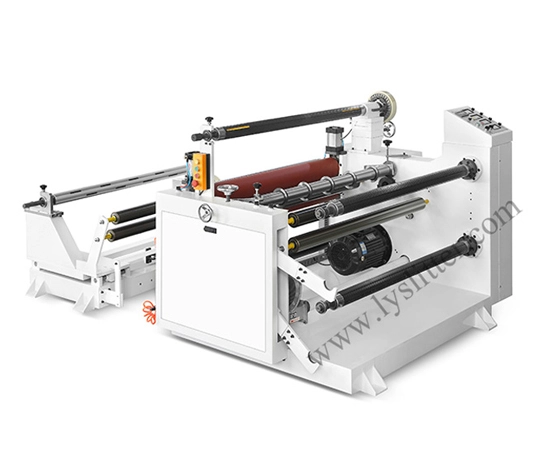

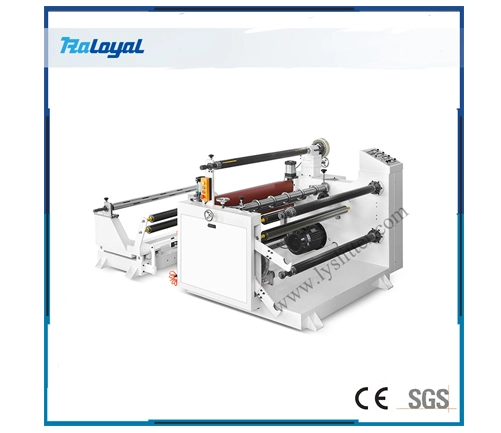

Basic series multifunctional laminating slitting machine is specially designed for protective film materials slitting. It can be custom-made peeling and rewinding function, and multilayer lamination as client requirement.
Protective film
PET, PVC, etc. film
Optical film
Lithium battery pole pieces
Raw paper, release paper, paper board
Adheisve paper
Others (bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, etc.)
Uncoated papers & boards
Inkjet resin coated inkjet paper
Inkjet paper
Polyester pet film
BASIC SERIES is specially designed for protective film materials slitting. It has options like laminating, peeling, PLC/touch screen system, and friction shaft rewinding.
| Machine model | HC-1300 | HC-1600 |
| Unwinding width | 1300mm | 1600mm |
| Machine speed | 100m/min | 100m/min |
| Slitting precision | ±0.03mm | ±0.03mm |
| Unwinding diameter | Φ800mm | Φ800mm |
| Laminating diameter | Φ300mm | Φ300mm |
| Rewinding diameter | 2×Φ450mm | 2×Φ450mm |
| Main motor power | 3kw, 6 pole | 3kw, 6 pole |
| Installation dimension | 2900×2000×1300mm | 3000×2400×1300mm |
| Machine weight | 2000kg | 2300kg |
