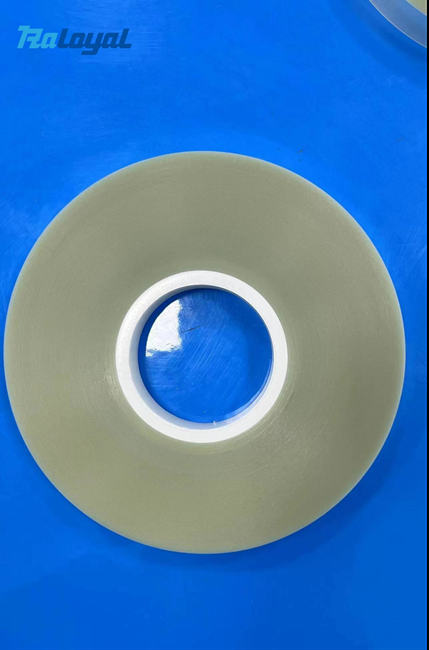

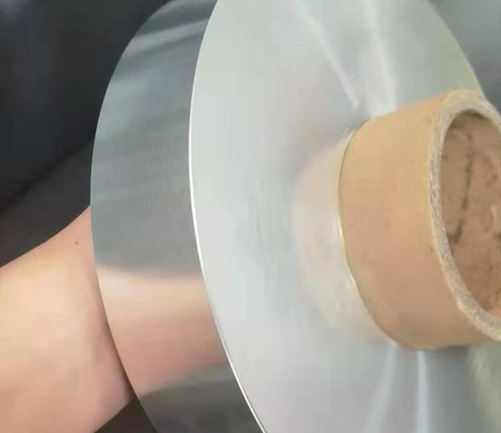

The surface of the rolled plastic core should be flat, without wear and tear, and the height should be consistent.
-
- en
-
-

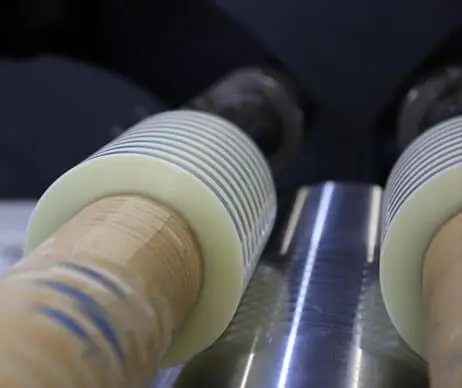

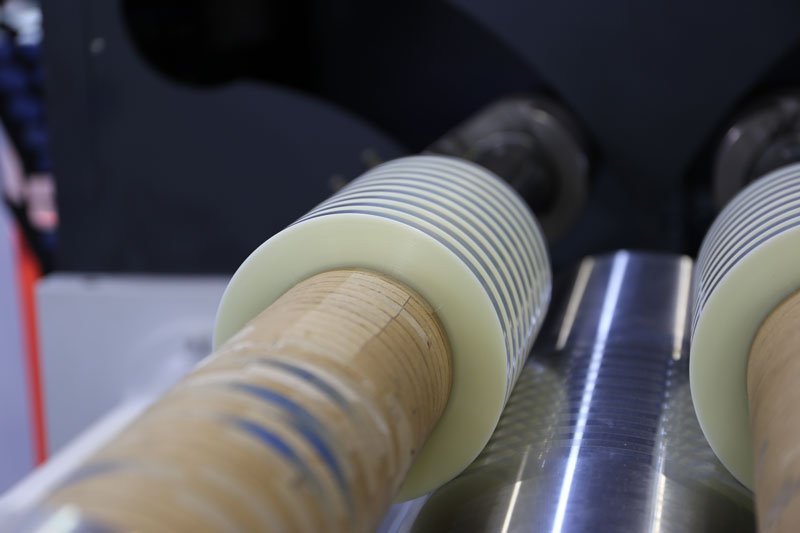

This PI film slitting machine is suitable for the slitting of metallic material: aluminum foil, copper foil, PET CCL, PPE, Personal protective gowns, medical gowns, BOPP, PET, CPP, PE, PVC, film, paper, PSP DPP Paper,etc.

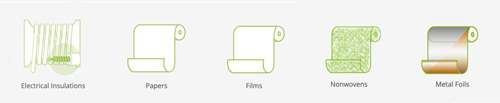

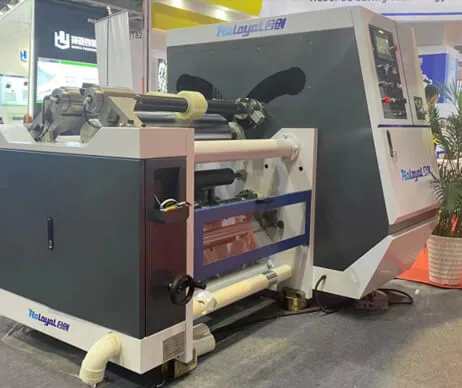

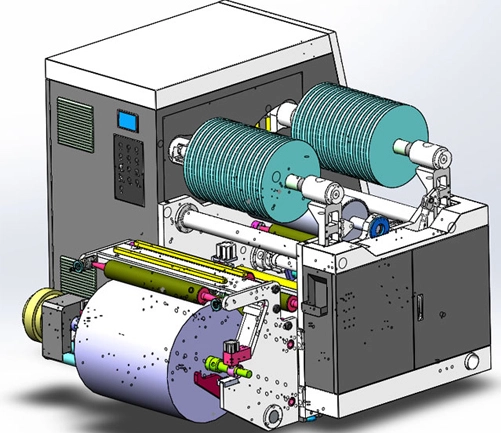

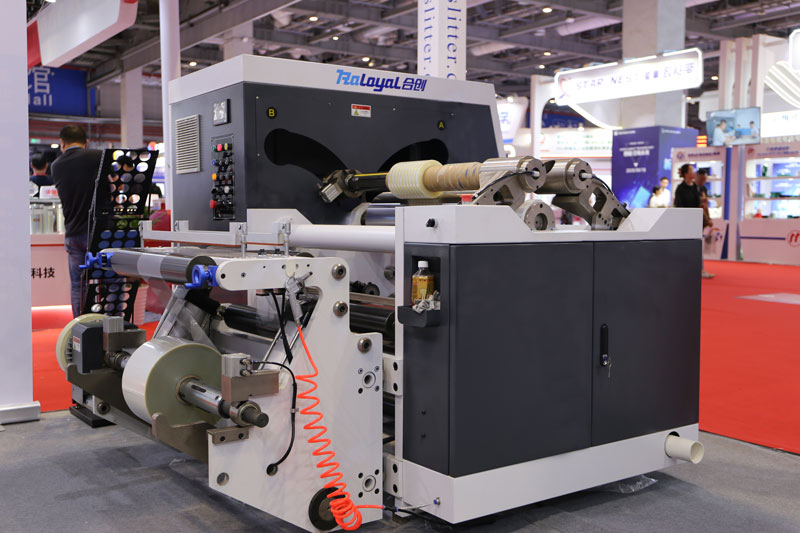

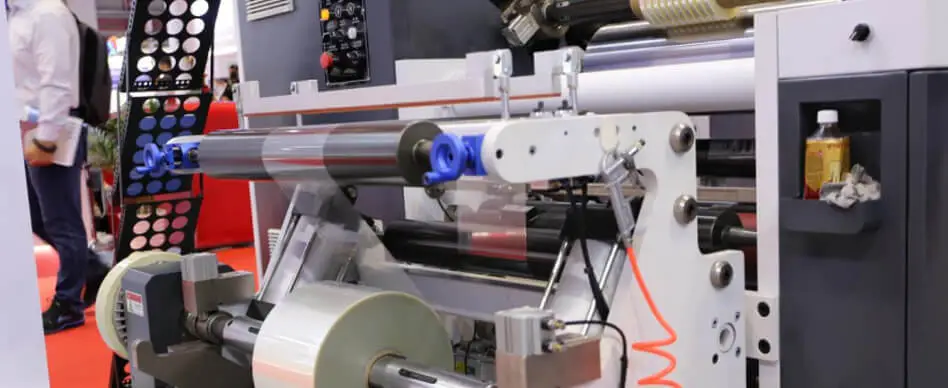

Use of CORE SERIES Surface Coiling Slitting Machine
This machine is suitable for the slitting of straw paper, aluminum foil, copper semiconductor, PET CCL, PPE, Personal protective gowns，medical gowns，BOPP, PET, CPP, PE, PVC, film, paper, DPP Paper,PSP Paper, Edge band, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, processing mica tape, presspaper, carrier tapes, and composite insulation materials.etc.

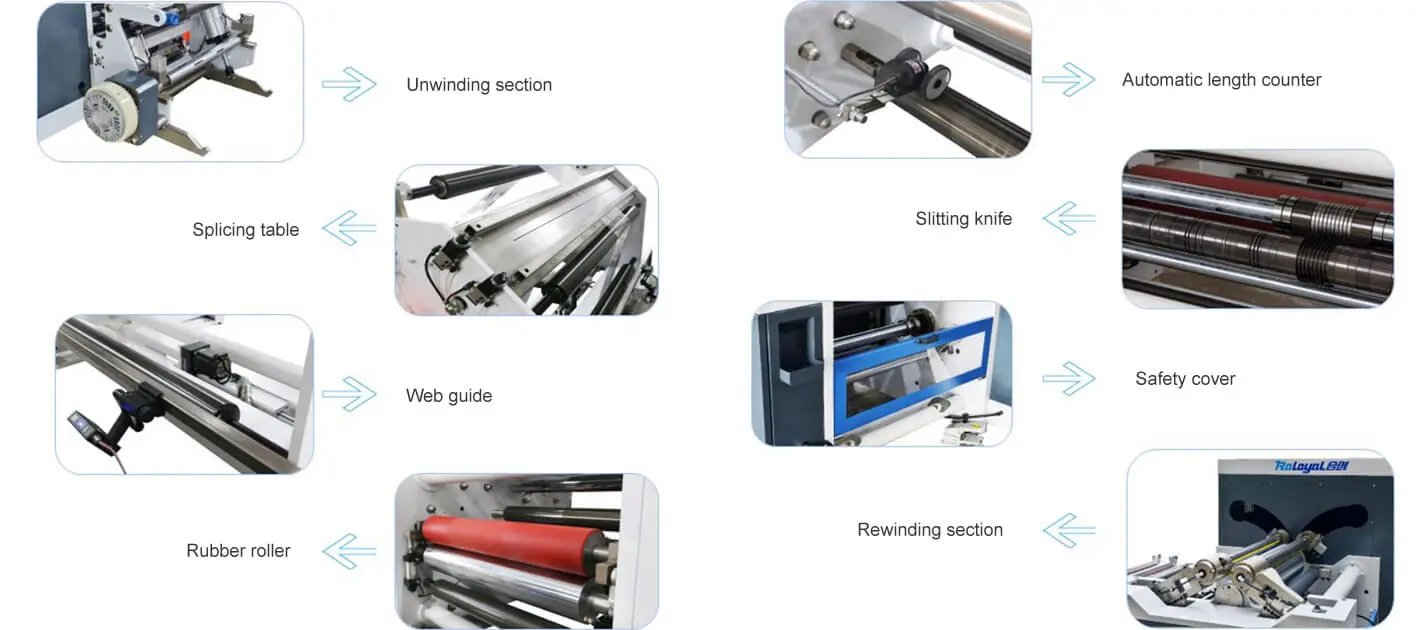

- Servo motor control, automatic taper tension, the center surface coiling method;
- Frequency control, to maintain smooth operation in the acceleration;
- Automatic meter, alarm and other functions;

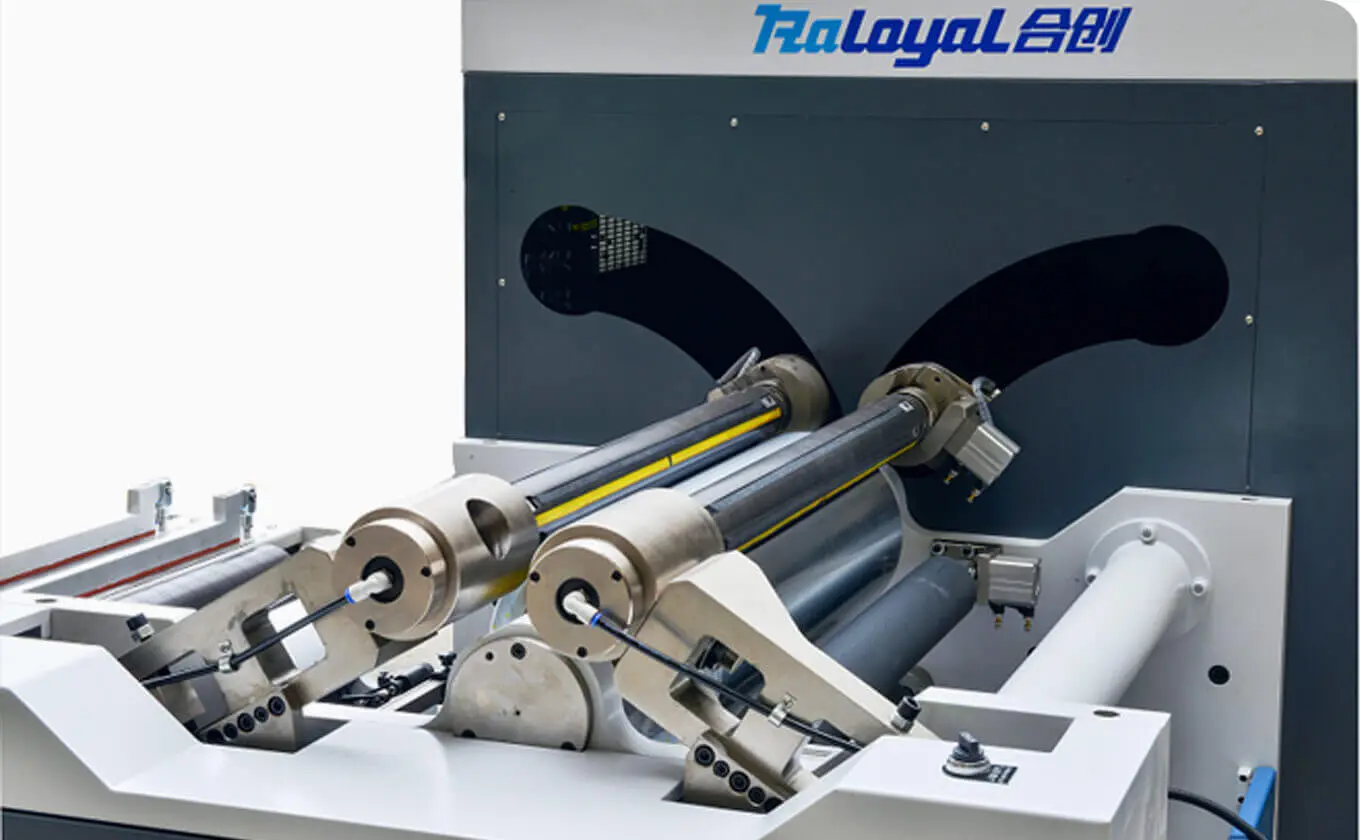

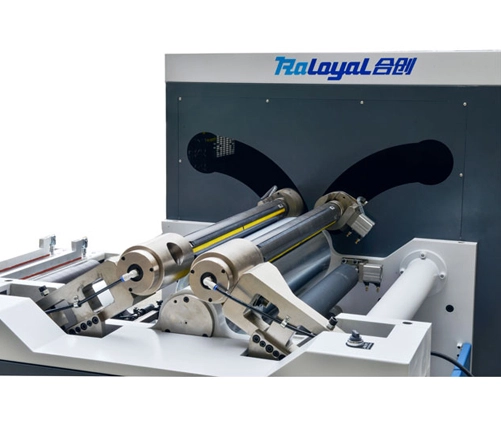

- Rewinding using A, B inflatable shaft structure, back-style rewinding, loading and unloading
easy operation;
- Unwinding using optical edge correction method;
- round knife (film using flat knife structure) slitting waste automatic discharge device;
- pneumatic automatic shaft / hydraulic automatic shaft-free structure (customers choose
their own configuration).
| Machine model | HC-C650B | HC-C1300B | HC-C1600B |
| Unwinding width | 650mm | 1300mm | 1600mm |
| Slitting thickness | 12g/m2~300g/m2 | 12g/m2~300g/m2 | 12g/m2~300g/m2 |
| Standard slitting width | 5~650mm | 5~1300mm | 5~1600mm |
Max slitting apeed（depend on material） | 300m/min | 300m/min | 300m/min |
| Unwinding roll diameter | Φ600mm | Φ1000mm | Φ1000mm |
| Rewinding roll diameter | Φ600mm | Φ600mm | Φ600mm |
| Main motor power | 3kw | 7.5 kw | 7.5 kw |
| Rewinding motor power | 2×3kw | 2×7.5kw | 2×7.5kw |
| Machine weight | 2500kg | 3000kg | 3500kg |
| Installation dimension | 2500*1850*1800mm | 3150*2500*1800mm | 3150*2800*1800mm |

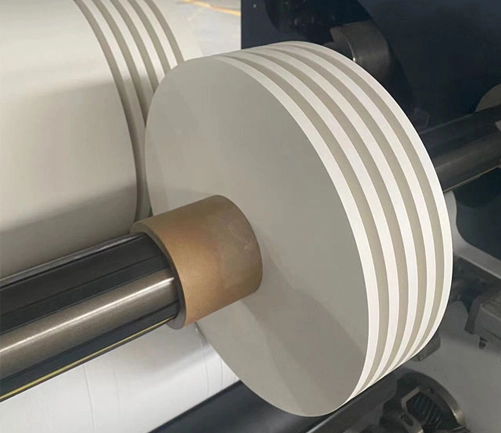

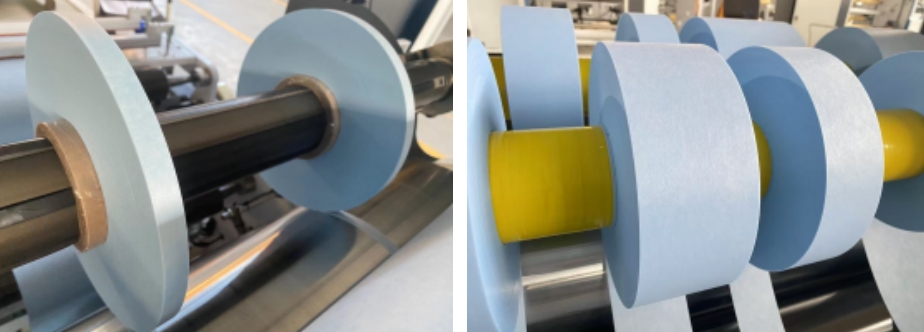

The surface of the rolled plastic core should be flat, without wear and tear, and the height should be consistent.

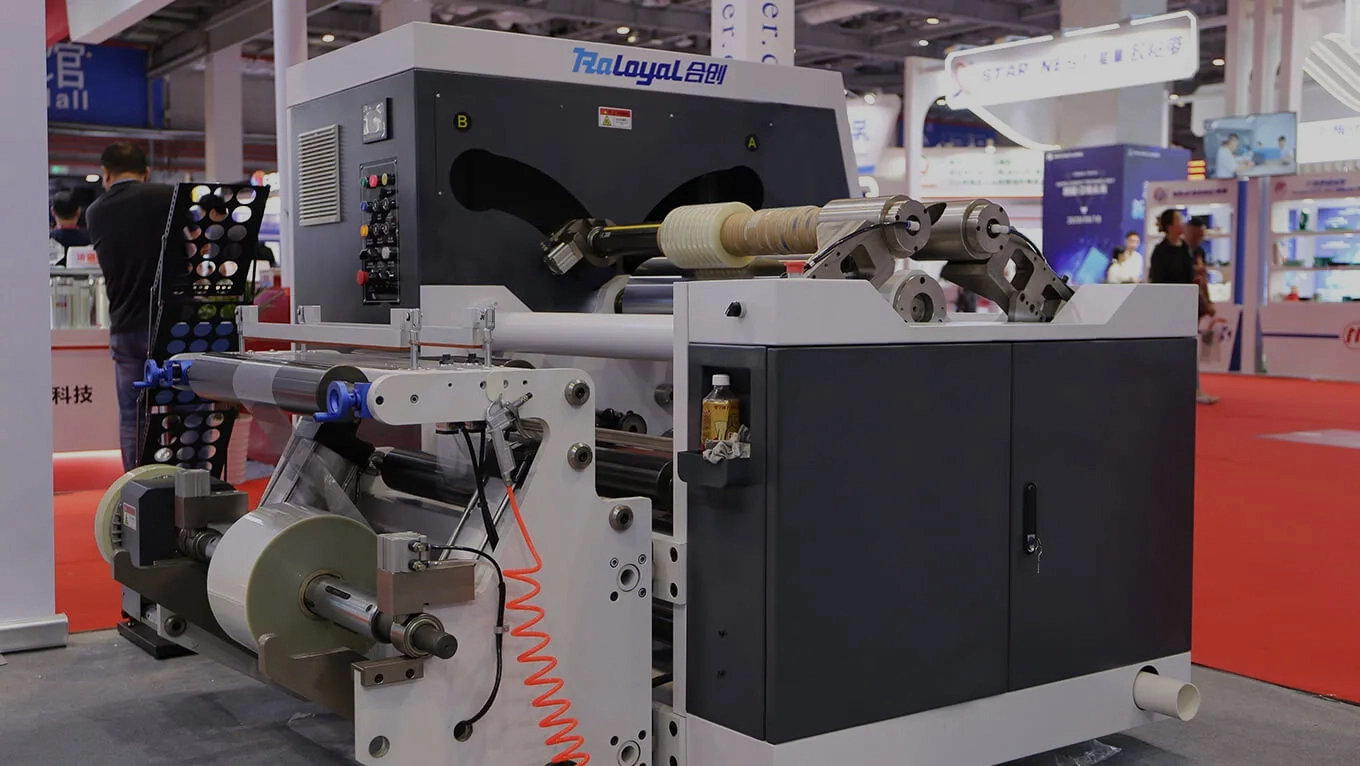

Meeting Rotas for the first time was at LABELEXPO exhibition in Shanghai. He came and stopped by our stand, with the classic and elegant smile. After short talk, we knew he is from Thailand and runs a very reputable company of release film and other materials. Also, he has built a new plant and plans to purchase a slitter to convert the flexible pet material. The inquiry for the slitter is to slit very narrow film width 5mm and also want to slit back side of the material.
Thanks for Rotas's detailed requirement, Raloyal, in the spot recommended HC-C series slitter, in the meantime, with the tailed solution for back slitting technology. We sent the solution files to Rotas after the exhibition. This solution can perfectly meet Rotas's demand, andprice is good.
After 2 months, the end of 2019, we have concluded the deal smoothly like water flowing to a channel formed.
After shipment, due to the epidemic, wecould not go to Thailand, so the training was online (by wechat group video) with our service engineer. They learned the machine operation very quickly, and ran very well only within 1 day. Thanks for our service engineer's profession and patience, also the operator's earnestness there.
The machine runs very well in our customer's factory, and he took a video for us below.

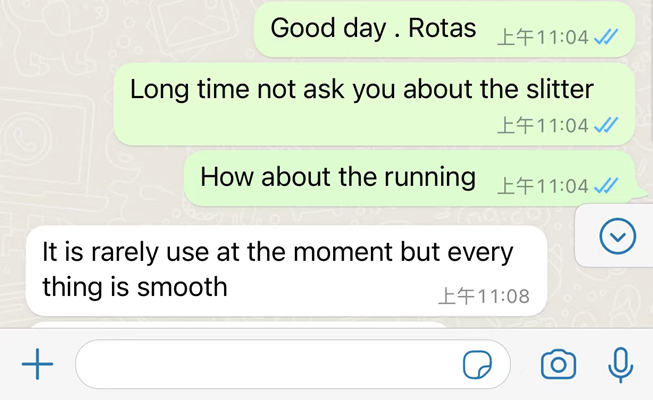

And 2 days ago, we made the after-sale service follow-up. This is their feedback.
