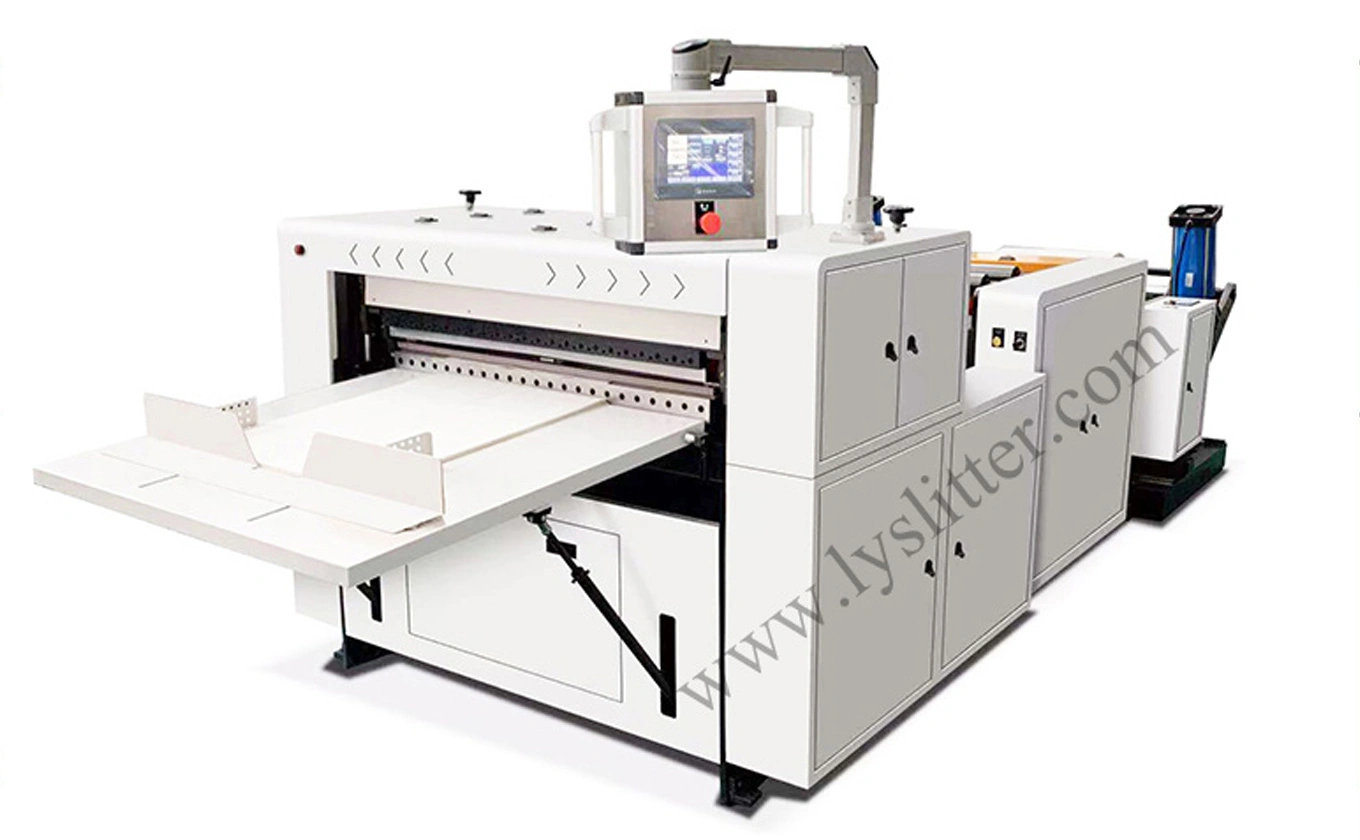

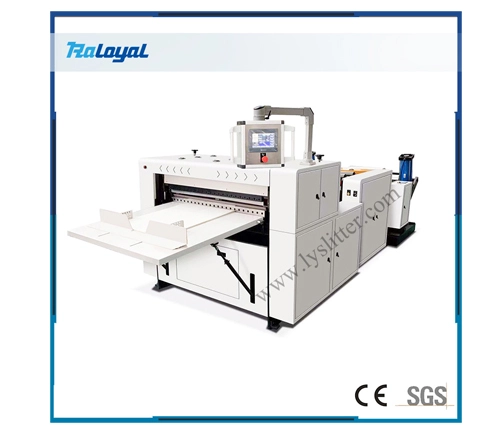

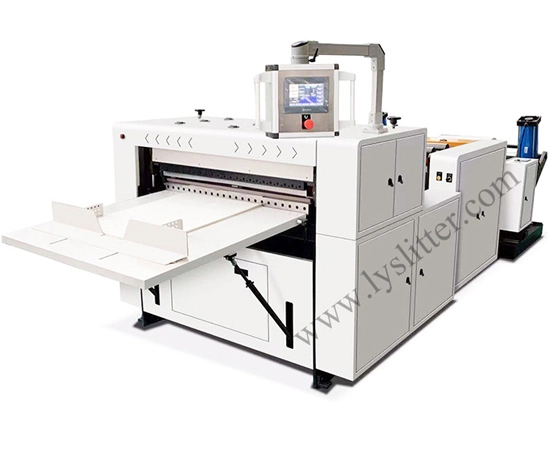

This roll to sheet paper cutting machine is a specialist for hamburger paper roll to sheet.
This paper cutter with packing is specialist for horizontal and vertical cutting paper rolling materials to A4 size. A3, A2 size paper is also avaliable.
Adopts down-up recurrent cutting with orderly finished products and without water caltrop; At the meantime, it can be used for horizontal cutting and vertical cutting at one time;
This Industrial Paper Roll Guillotine adopts servo motor for controlling constant-length cutting;
It adopts PLC control and contact screen operation;
It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it is of easy operation, high precision, good stability, low noise;
This Servo Precision High Speed Sheet Cutter Machine has the frequency converter timing device, automatic counting, stop working by alarm, magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste;
High speed and high-precision of cutting. The pneumatic structure combined with computer control is adopted for transmission section, making it much more steady in operation;
With automatic stacking and Photoelectric auto tracing subtense system.
| Machine model | LY-C1100 |
Max unwinding diameter | φ1400mm |
Reference weight of cutting paper | 40~500g |
Max cut width | 1100mm |
Cutting length | 20-1000mm |
Cutting speed | 110-130times/min |
Cutting precision | ±0.2mm |
Voltage | AC380V/220V x 50HZ |
Total power | 10KW |
Main function | 1) can be 1 roll, 2roll, 4 rolls loading (Optioanal) |
2) With paper stacker (include) | |
3) With round cutter for slitting (include) | |
4) With belt transferring (include) |
