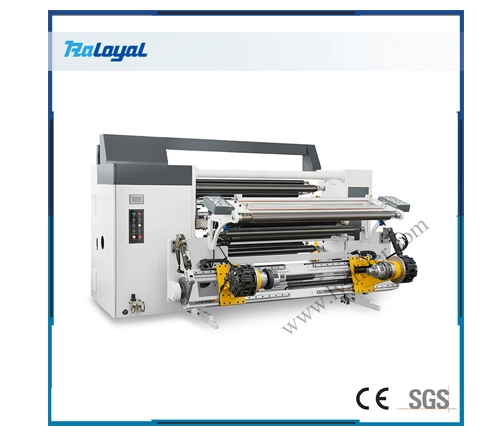

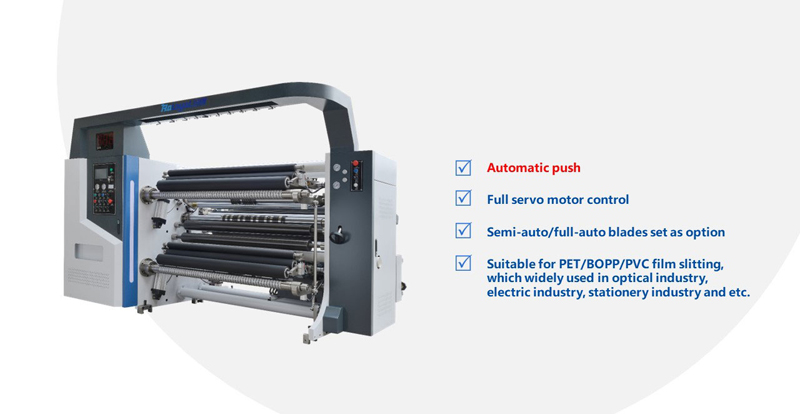

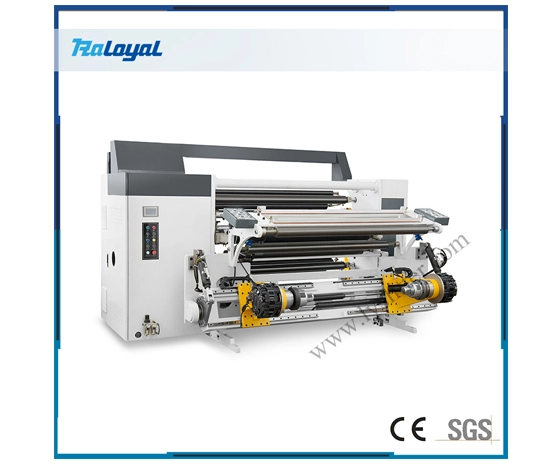

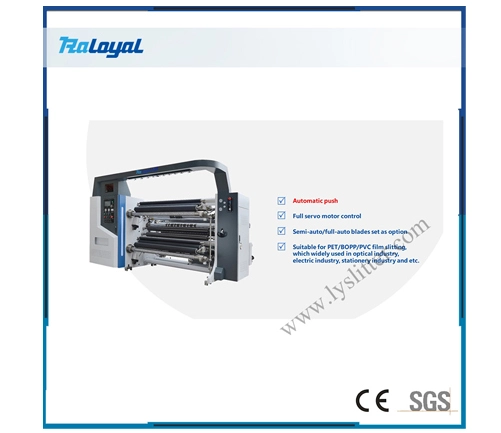

HCH3-1600A high speed slitting machine is our most popular and hot selling machine in the market, which can slit both label sticker, paper and flexible film in optical and electrical industry with the most competitive price.
Bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, etc.
Option: shaft-less loading, semi-auto blades set
Raw paper, release paper, paper board
Adhesive paper
Protective film
PET, PVC, etc. film
Release Liners (Paper/ Film) and Label Stocks
Release Paper Liners
Release Film Liners
Self Adhesive Paper Label Stocks (Cromo Art, Maplitho, Mirror Coat, Flourocent paper,Thermal Transfer, Aluminium foil paper( golden and silverl )
pvc film label stocks
vinyl film label stocks
polyester film label stocks
Self Adhesive Film Label Stocks (Polyster Film (metalized/Clear)
PVC Film(Color/ Transparent)
Vinyls(Colour/Transparent) and Specialty Adhesive Tapes / Label stocks
Uncoated papers & boards
Inkjet resin coated inkjet paper
Inkjet paper
Polyester pet film
This machine is more suit for the high demand of raw material slitting. Such as electronic protective film, optical film and other high-quality tapes, etc.

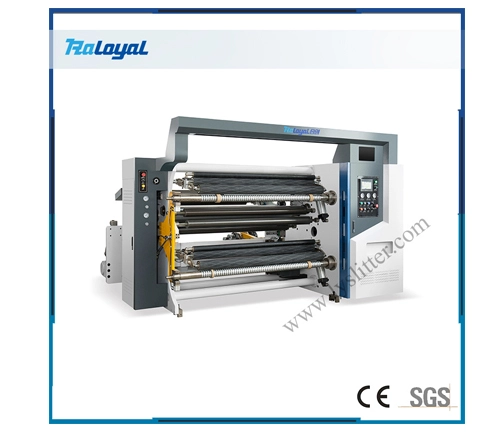

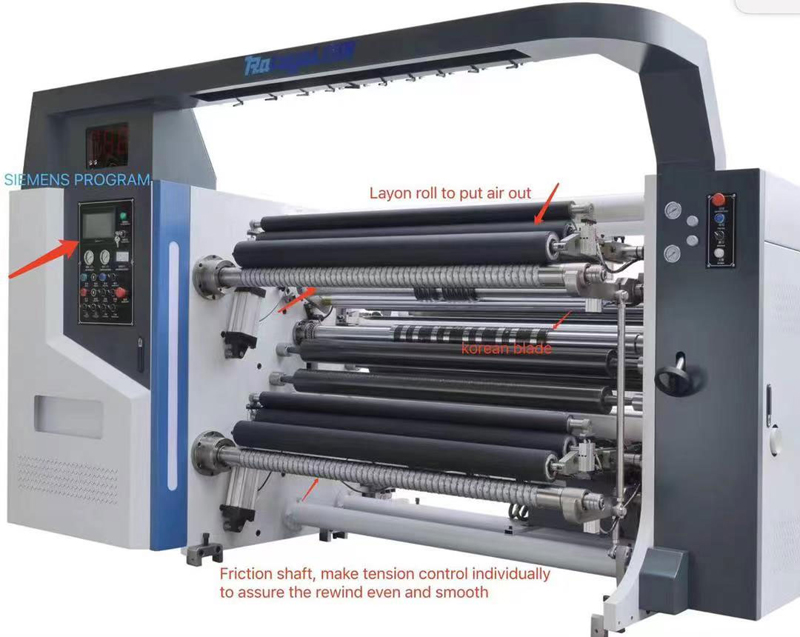

HCH3 series slitting machine adopted a German Siemens control system with a high level of automatic.

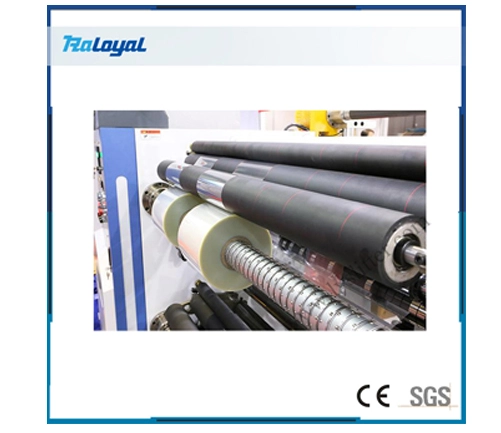

Double-bead friction shaft rewinding, sectional tension control, anti-scratch function.
2 servo motors control, high speed, and high quality.
1 | Model | HCH3-1600A |
2 | Max. Unwinding width | 1600mm |
3 | Total power | 21kw |
4 | Speed | 300~400m/min |
5 | Precision | ±0.03mm |
6 | Unwinding roller diameter | ∮1200mm |
7 | Rewinding roller diameter | ∮2*600mm |
8 | Machine weight | 4500kg |
9 | Machine overall dimension | 3274*2513*1890mm |

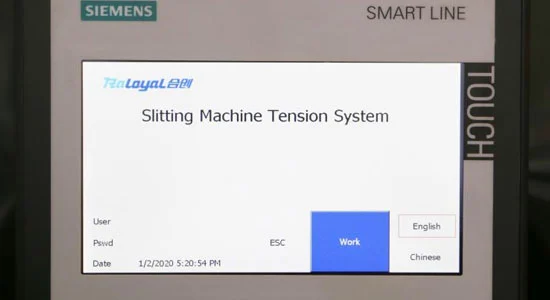

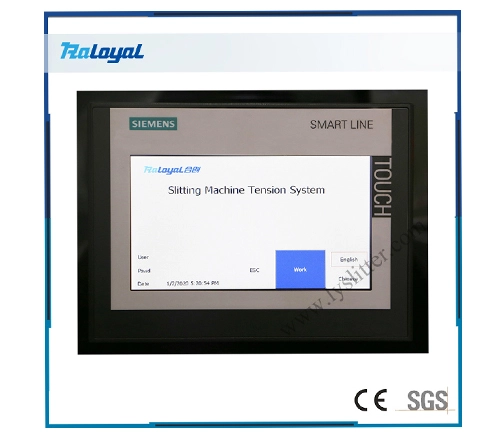

Touch screen on Human machine interface (HMI)

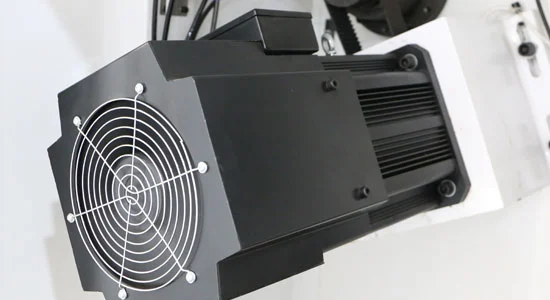

Servo motor drive

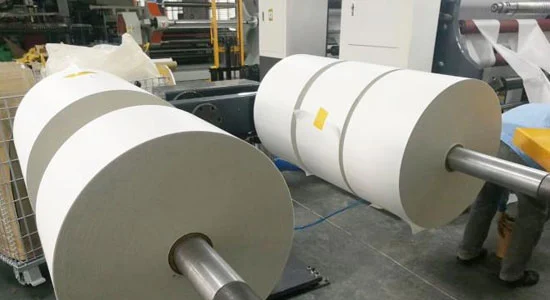

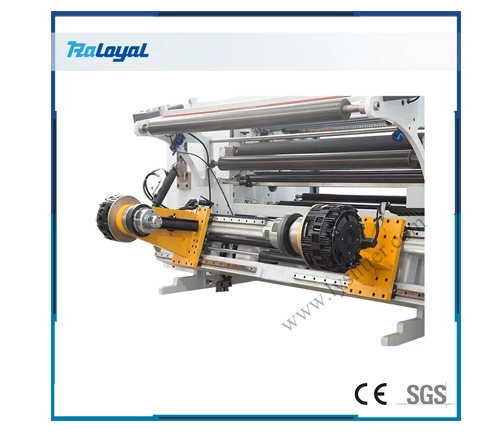

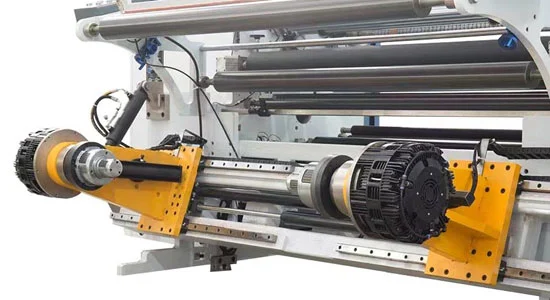

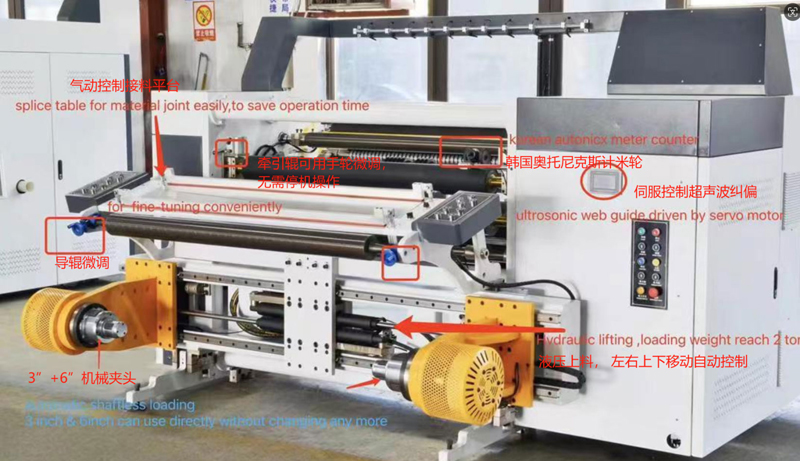

Shaft-less loading, caught taking raw materials fast, easy loading.

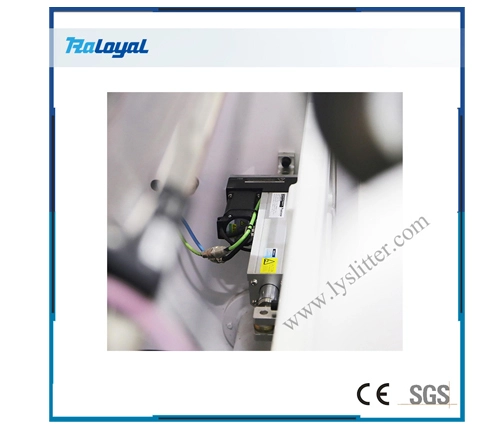

Web guide, ultrasonic correction, servo system for left/right movement

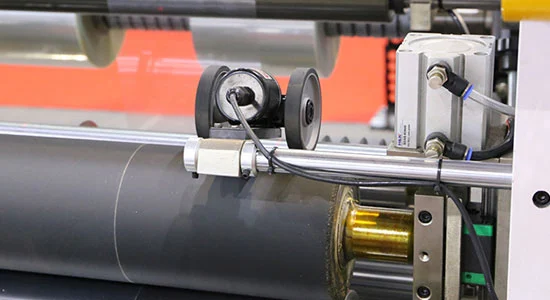

Automatic length counter, KOREA AUTONICS, Rotary encoder.

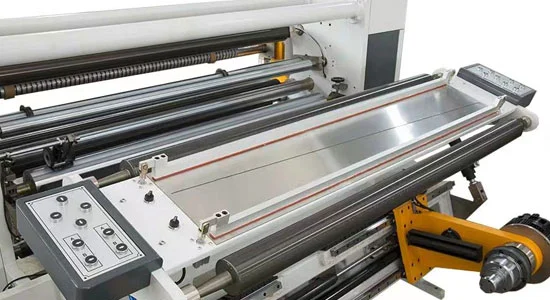

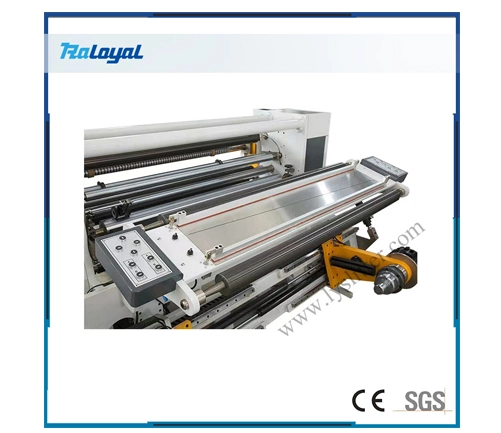

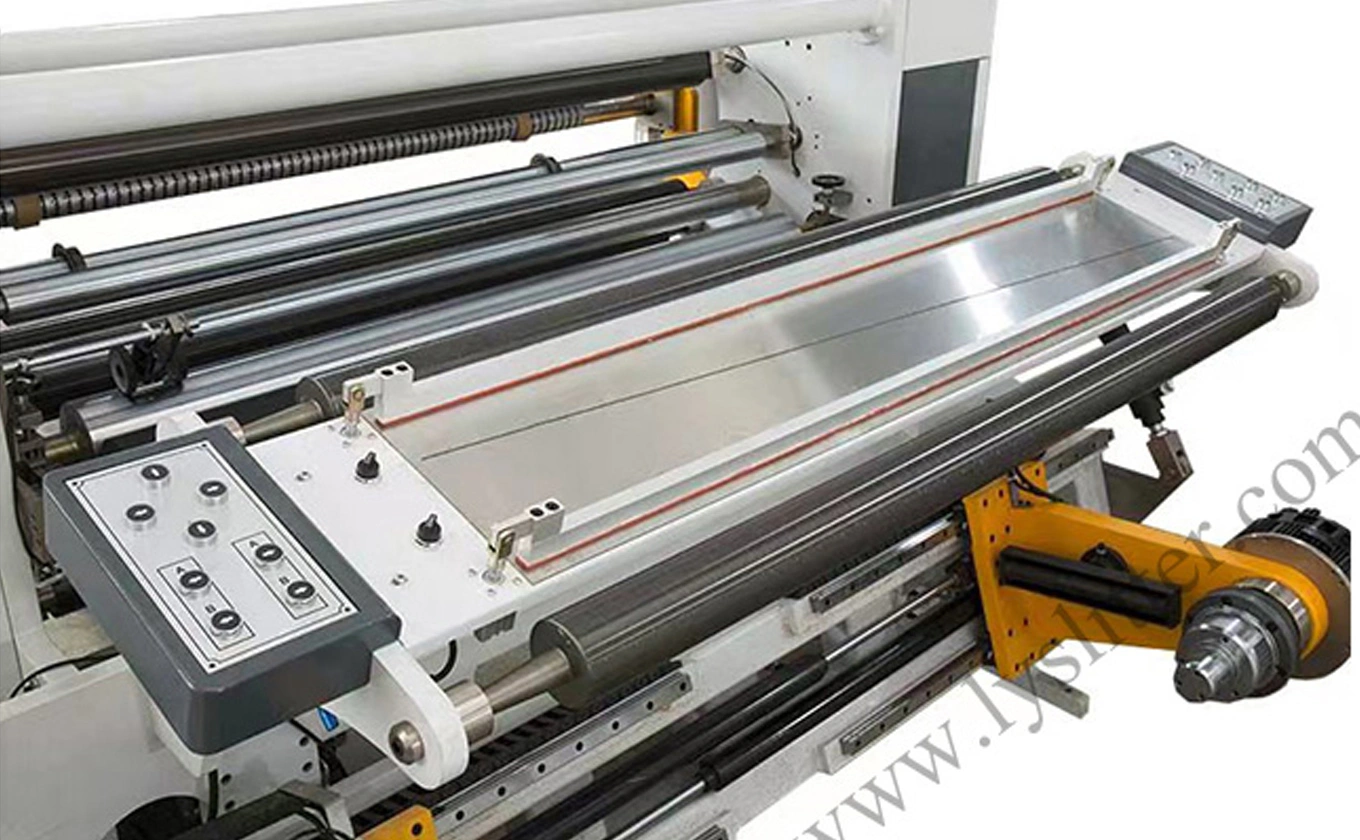

Outside designed splicing table for more friendly operating and increase productivity.

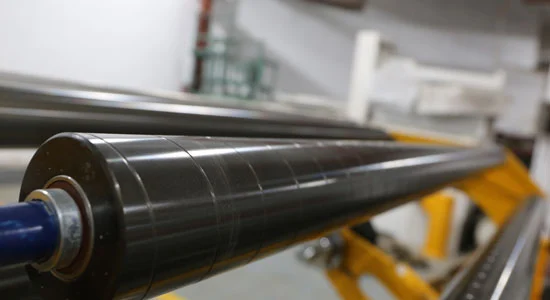

Rubber covered roller.

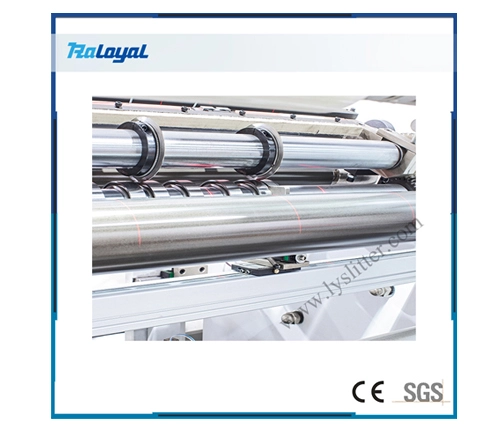

Guide roller for pulling material.

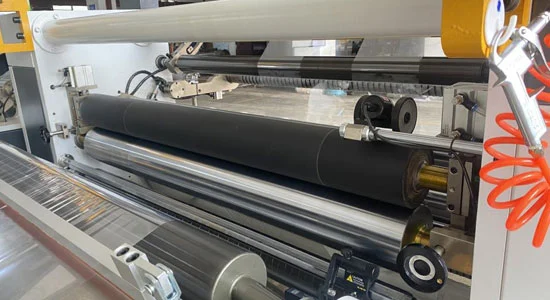

The movement be controlled by cylinder. Traction roller fine adjust by handwheel, different type or material adjustable can be done easily and conveniently.
Anti winkle type idler roller
Adhesive removal device for adhesive paper, film, ect. laminated material

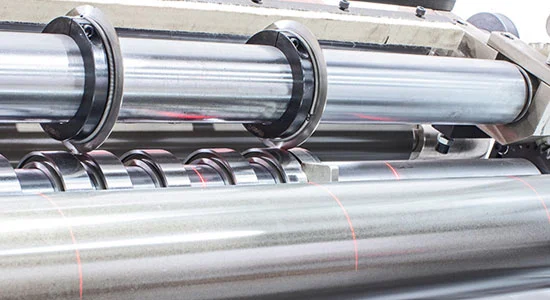

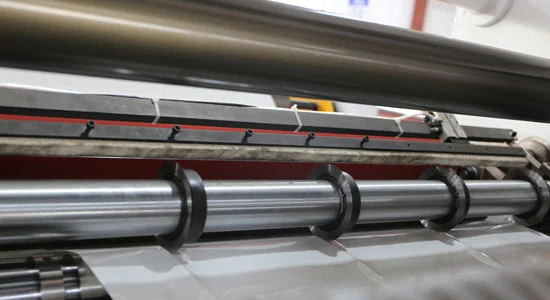

Semi-automatic blades set

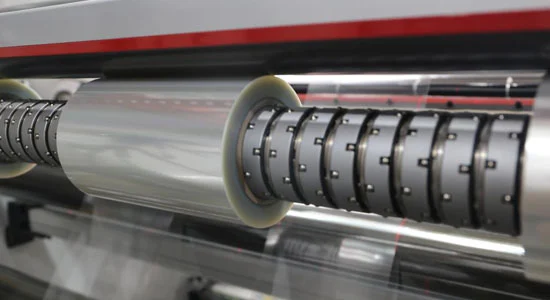

Double beads type friction shaft rewinding with separated tension control

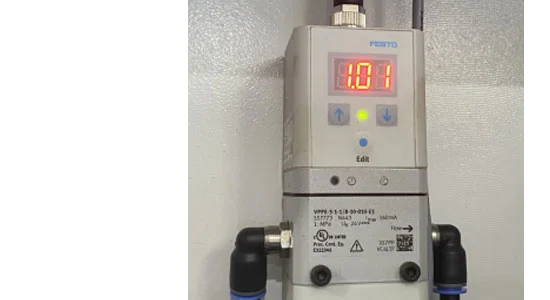

GERMANY FESTO, for rewinding tension control
Rotary double axle unloading frame, it can be fixed at 90°for easier unloading
