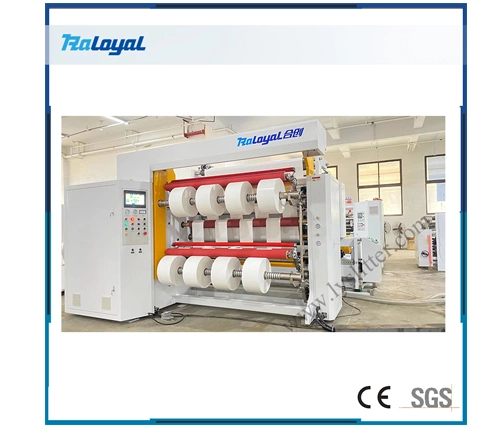

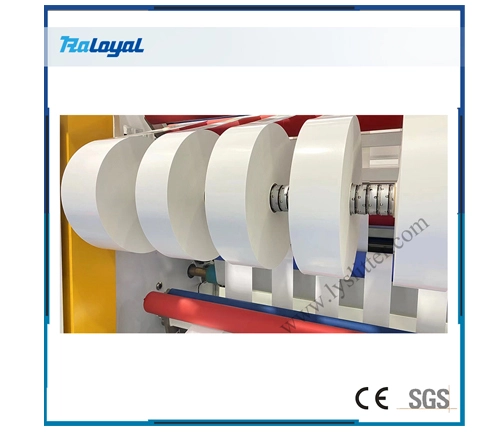

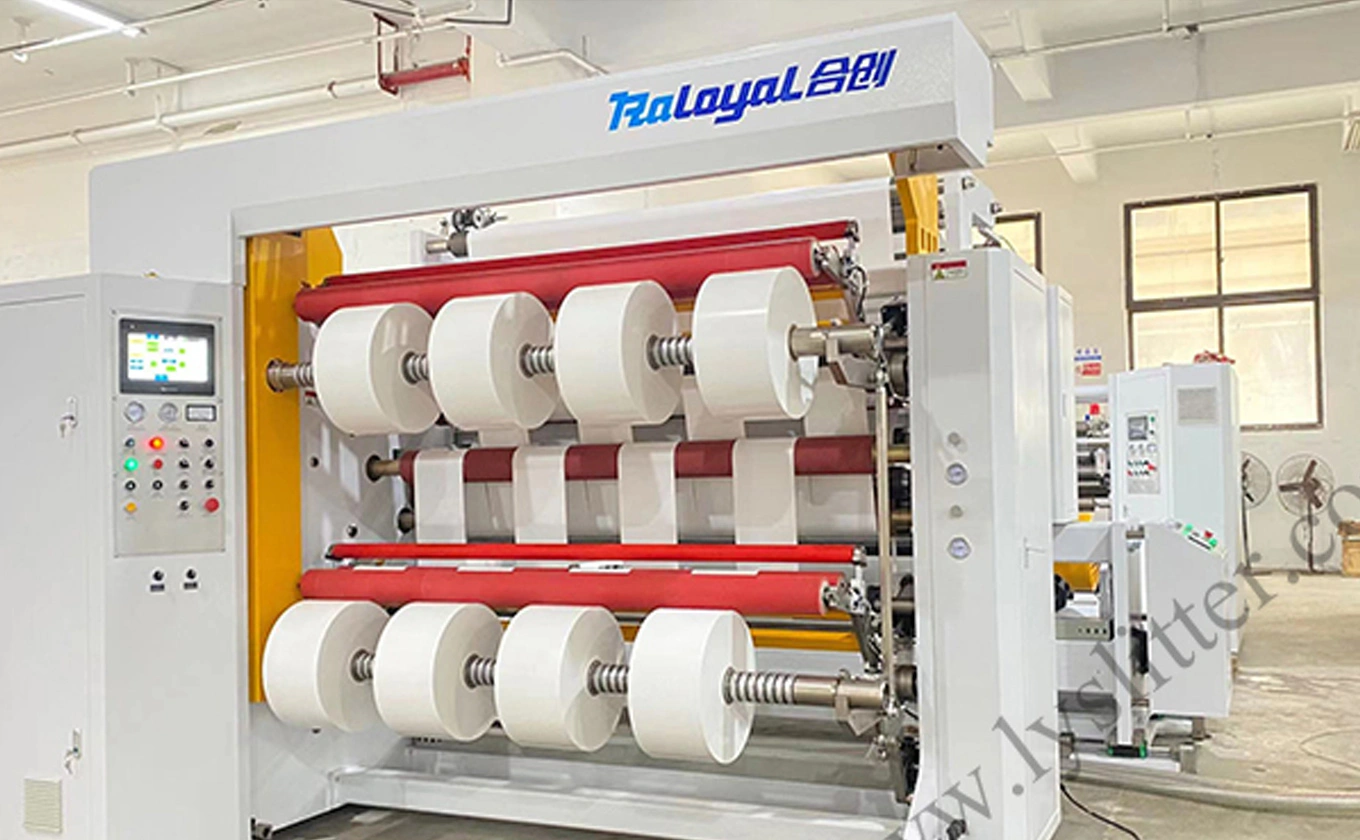

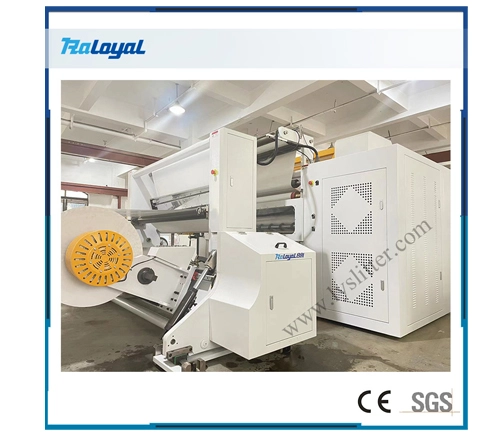

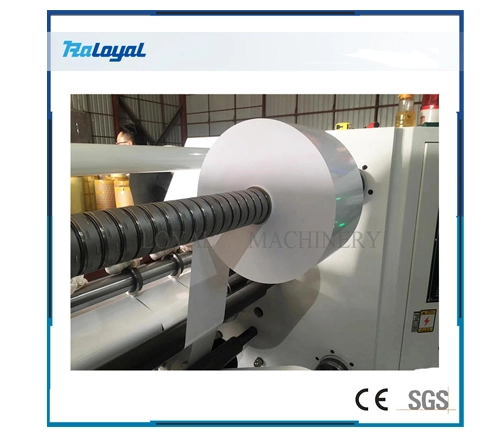

HCH3-1700 High Speed Slitting Machine with Shaftless Unwinding

Use the high speed slitting machine is applicable to PE, PP, PET, PVC, and other plastic films, paper, composite film, the aluminum film, color film. It is the ideal model of the film.
To get an instant quote Now

HCH3-1700 High Speed Slitting Machine with Shaftless Unwinding
This machine is the best suit for high-quality demand and mass production. It is ideal for large diameter heavy rolls. Strong stability and long service life.

  • Video 2024-12-17 QR code inkjet printing slitting solution
  • Success Cases 2024-12-17 Machine in AustraliaMachines in Dominican Republic
  • Parameters 2024-12-17 Machine modelHCHR-370Max paper width370mmUnwinding diameter700mm (27.5inches, unwinding shaft: 76mm)Min slitting width20mm (0.78inches)Machine speed350m/minTurret rewinding diameter2*φ450mm (17.7inch...
  • Application 2024-12-17 Automatic slitting inspection machine still be suitable for Labels and Adhesive sticker. Such as art paper labels,tire labels,pe/pp labels,etc.Release Liners (Paper/ Film) and Label Stocks. Our range...
Features Machine System SPECIFICTION

FEATURES_OF HCH3-1700 High Speed Slitting Machine with Shaftless Unwinding

USE:
This series of slitting machines with an incredibly high speed in slitting is one of the flagship machines in our company. With the greatest equipment offered, this machine is supposed to do any kind of slitting stuff. So, as far as I’m concerned, it may be one of the ideal slitting machines in the world.

Thanks to its high configuration, we can use this series of machines to slit package of the high-quality products for some deluxe stores. Without any doubt, it performs extraordinarily on slitting works of plastic films, electronic films, paper, optical films, metal films, trademarks and adhesive tapes, etc. So, we have strong belief that it is a great choice for some slitting companies or factories to purchase.

Release Liners (Paper/ Film)  and Label Stocks. Our range consists of Release Paper Liners, Release Film Liners, Self Adhesive Paper Label Stocks (Cromo Art, Maplitho, Mirror Coat, Flourocent paper,Thermal Transfer, Aluminium foil paper( golden and silverl ), pvc film label stocks, vinyl film label stocks, polyester film label stocks, Self Adhesive Film Label Stocks (Polyster Film (metalized/Clear), PVC Film(Color/ Transparent), Vinyls(Colour/Transparent)  and Specialty Adhesive Tapes / Label stocks.

Characteristic:
Compared to the last generation we designed, (which is this generation based on to design), this series of machines have been added another motor, to drive the rewind rolls for each. Therefore, one motor is used to control the unwinding part, while the other two motors are used to control the two slip shafts for each.

It is our flagship product, for now, numbered as ‘HCH3’, which means the 3rd generation. Besides, we have replaced the unwind part to pneumatic brake, realizing loading raw materials without shafts. What ‘smore, we have introduced and adopted the technology of shaftless loading through a hydraulic lift, which makes feeding automatically come true.

The flagship product is surely equipped with our highest-specification service of after sale.  So, if you buy this type of machines, we are very honored to provide you any technology service, with the guarantee of a-year quality and longtime service and technical support. So, it is reachable that you will never be worried about any problems you might face because we will be with you forever.


Applications:

Bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, etc.

Operation
Load
Unwind
Web Guide
Transition
Knife
Rewind
Unload
Trimmed waste
  • 1

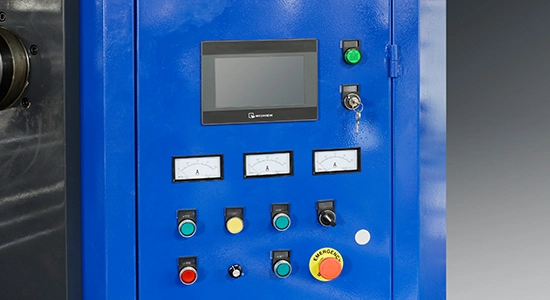

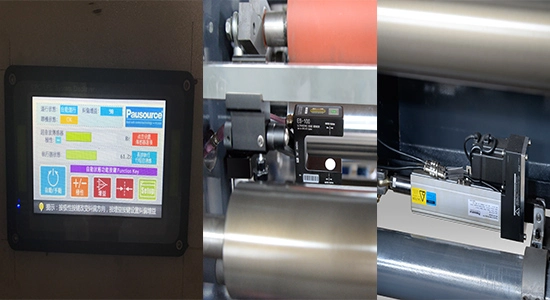

    Touch screen on Human machine interface (HMI)
  • 1
    Automatic loading system
    Hydraulic lift up
  • 1

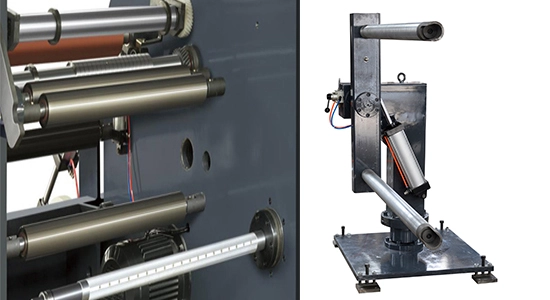

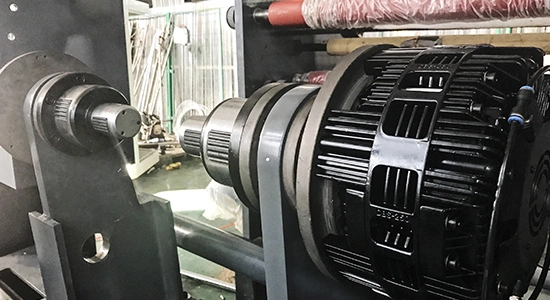

    Shaftless unwinding chuck
  • 2

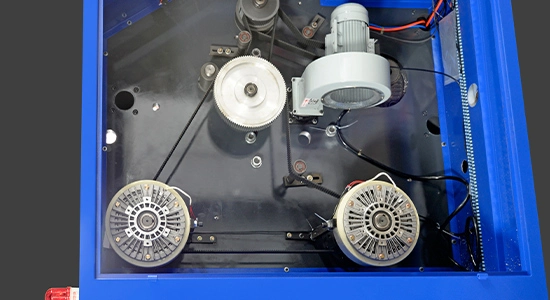

    Pneumatic powder break
  • 3
    Pneumatic powder break
  • 1
    Ultrasonic rectification
    Whole unwind stand can move horizontally, left and right.It can ensure the accuracy of slitting position.
  • 1

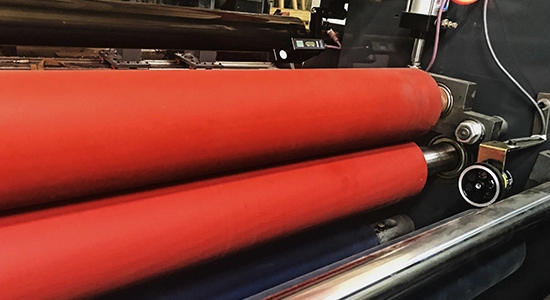

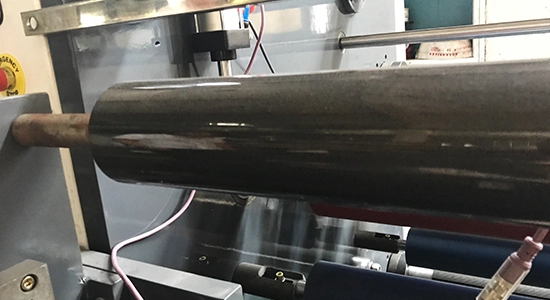

    Polyurethane be uesd in rubber covered roller (wearproof)
  • 2
    Aluminum rod after Hardness oxide (protection materials and scratch-proof)
  • 3

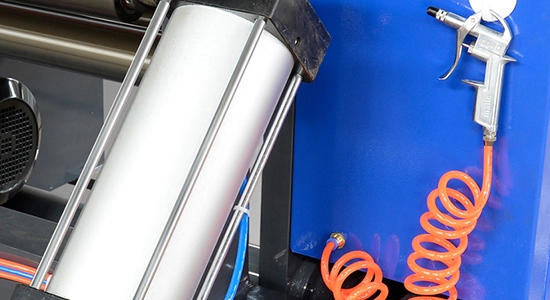

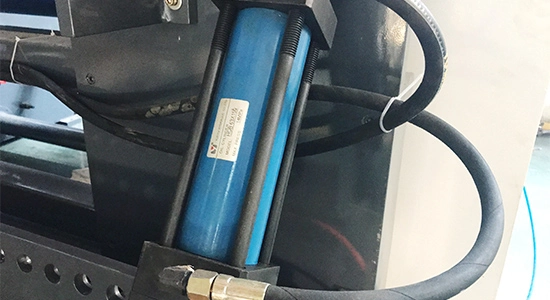

    The movement of rubber covered roller is controlled by the cylinder
  • 4

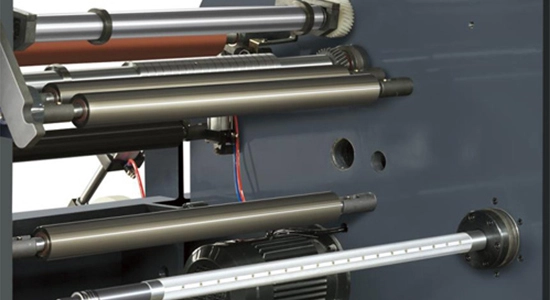

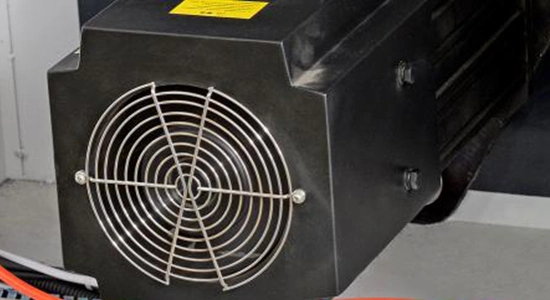

    Three Motors Winding: Servo motor
    One motor drives upper rewind shaft, one drives lower rewind shaft and the third motor is connected to the main drive roller.
  • 5
    Synchronous belt
  • 1

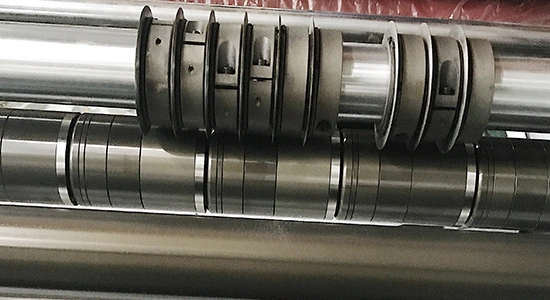

    Shear cutter system (sharp, flexibleand slitting efficiently)
  • 2

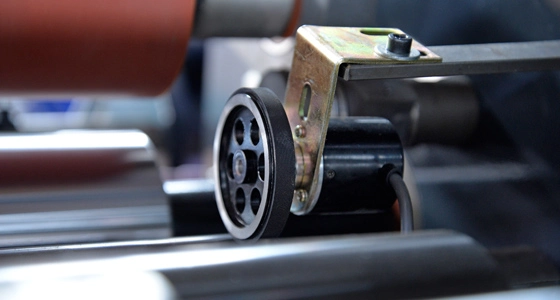

    Automatic metering
  • 1

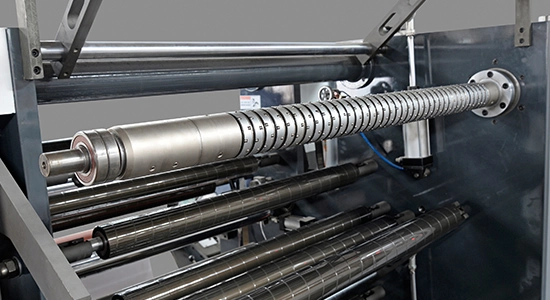

    Slip shaft
  • 2
    Dual rewind sations
  • 3

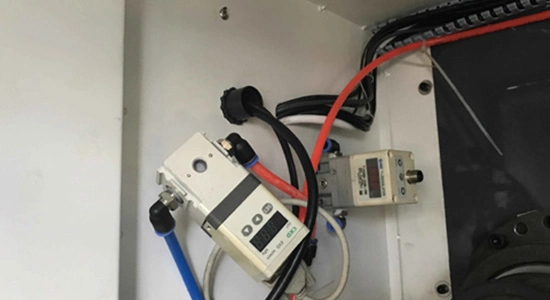

    Electronic proportional valve
    PLC increase or decrease it according to the calculating difference automatically
    Maintain the stable tension output during whole slitter rewinder operation.
  • 1
    Dual unload stations and automatic unloading
  • 1

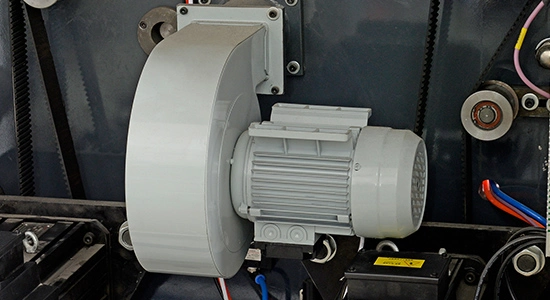

    Equipped with blower and expulsion tube

SPECIFICTION HCH3-1700 High Speed Slitting Machine with Shaftless Unwinding

Optional: Pneumatic nip rubber roller, Splicing table, Laser core position

Technical parameter:

Model

HCH3-1700

Max.  Unwinding width

1700mm

Main motor  power

11kw

Speed

300~400m/min

Precision

±0.03mm

Unwinding roller diameter

∮1200mm

Rewinding roller diameter

∮2*800mm

Machine  weight

10000kg
