Automatic slitting inspection machine still be suitable for Labels and Adhesive sticker. Such as art paper labels,tire labels,pe/pp labels,etc.
Release Liners (Paper/ Film) and Label Stocks. Our range consists of Aluminum blister for pharmacy products, Aluminium pharma blisters, Release Paper Liners, Release Film Liners, Self Adhesive Paper Label Stocks (Cromo Art, Maplitho, Mirror Coat, Flourocent paper, Thermal Transfer, Aluminium foil paper( golden and silverl ), pvc film label stocks, vinyl film label stocks, polyester film label stocks, Self Adhesive Film Label Stocks (Polyster Film (metalized/Clear), PVC Film(Color/ Transparent), Vinyls(Colour/Transparent) and Specialty Adhesive Tapes / Label stocks, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard.

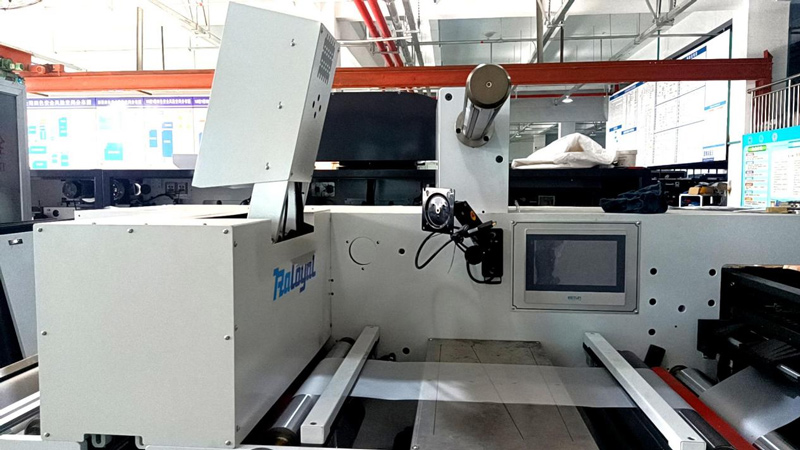

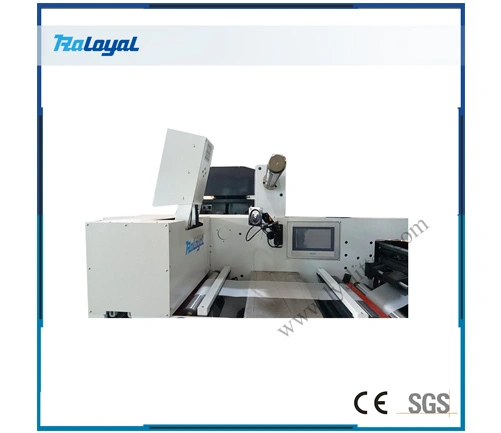

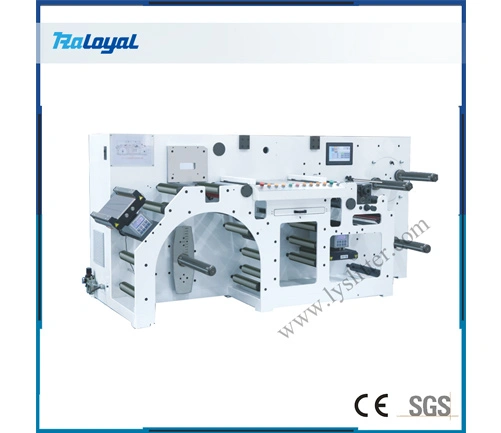

The high-speed slitting inspection machine developed by Ruian Loyal serves the premium market, catering to the needs of industries such as packaging, printing, electronics, by precisely slitting and inspecting materials like paper, film, label.

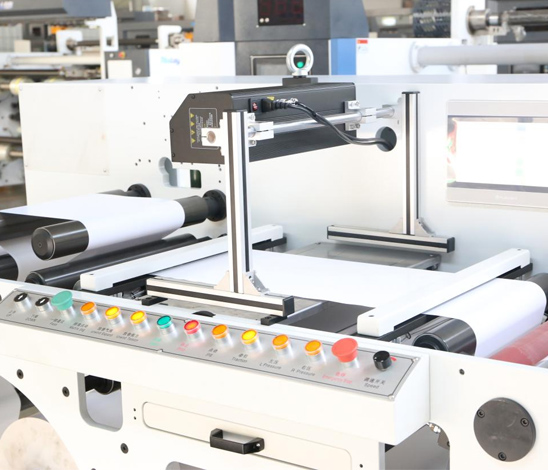

1. PLC control.

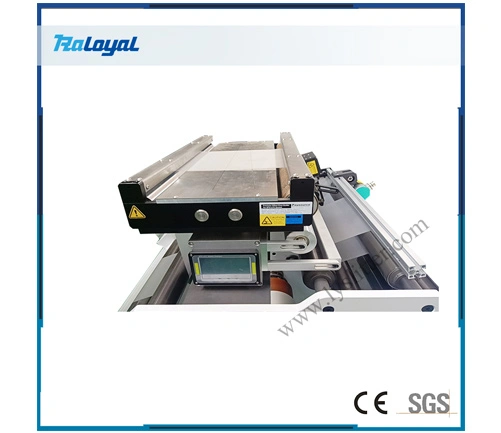

2. Splice table on the machine.
3. Servo driven system.
4. Taper tension control system
5. Top brand web guiding
6. Air shaft rewinding with turret, support variable size shafts exchange. (One of the shaft can be removed to rewinding bigger material)
7. Taper tension controller adopted for more friendly tension control of unwinding and rewinding unit .

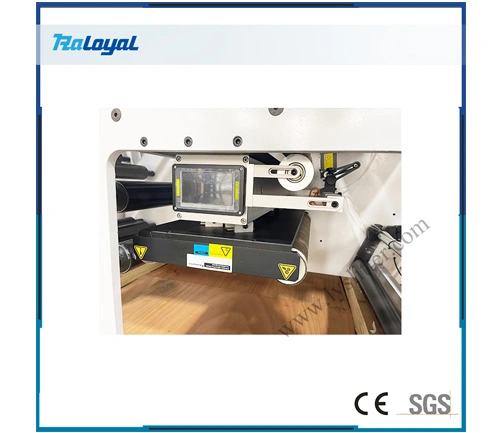

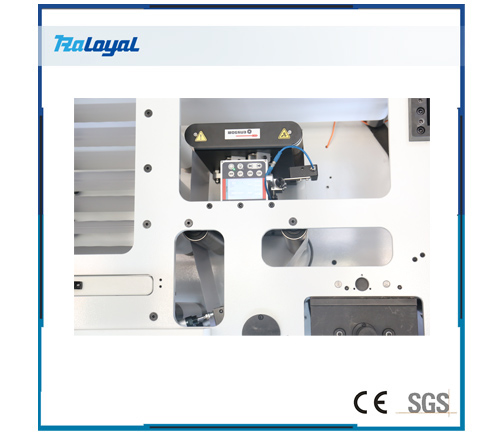

8. Web guide uses ultrasonic sensor.
9. Synchronous belt transmission, can assure the noise much smaller and keep machine running in high speed.
10. Meter and number counting,less material automatic down speed or stop.
Machine model | HCHR-370 |
Max paper width | 370mm |
Unwinding diameter | 700mm (27.5inches, unwinding shaft: 76mm) |
Min slitting width | 20mm (0.78inches) |
Machine speed | 350m/min |
Turret rewinding diameter | 2*φ450mm (17.7inches, shaft size as required) |
Single shaft rewinding diameter | 700mm (27.5inches, rewinding shaft:76mm) |
Packaging dimension | 2720*1550*1490mm |
Packages weight | 1500kgs |

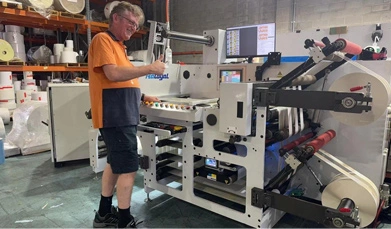

Machine in Australia

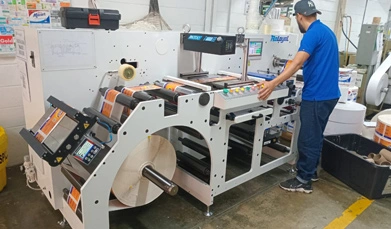

Machines in Dominican Republic
QR code inkjet printing slitting solution
