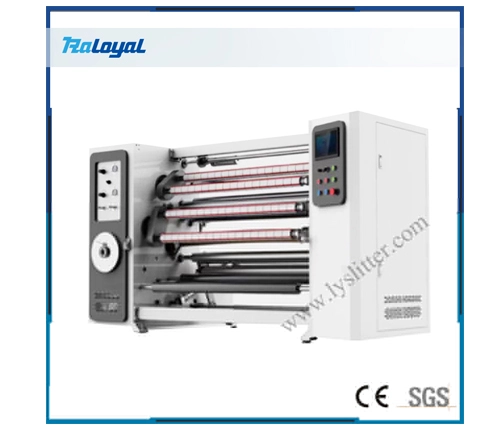

This BOPP Tape Rewinding Machine is the most ideal machine for BOPP adhesive tape slitting and rewinding. BOPP tape is also known as packaging tape, it is based on BOPP biaxially oriented polypropylene film.

To get an instant quote Now

Application of LY-1300/1600B BOPP Tape Slitting Rewinding Machine

Application of LY-1300/1600B BOPP Tape Slitting Rewinding Machine

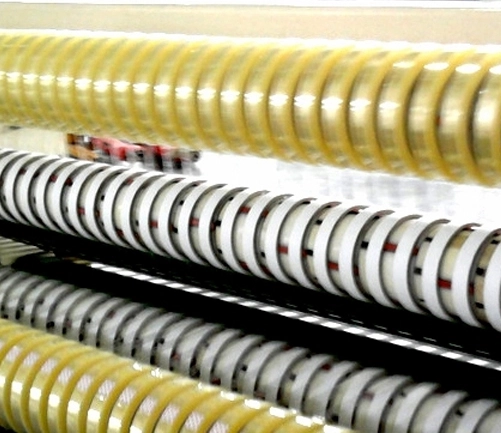

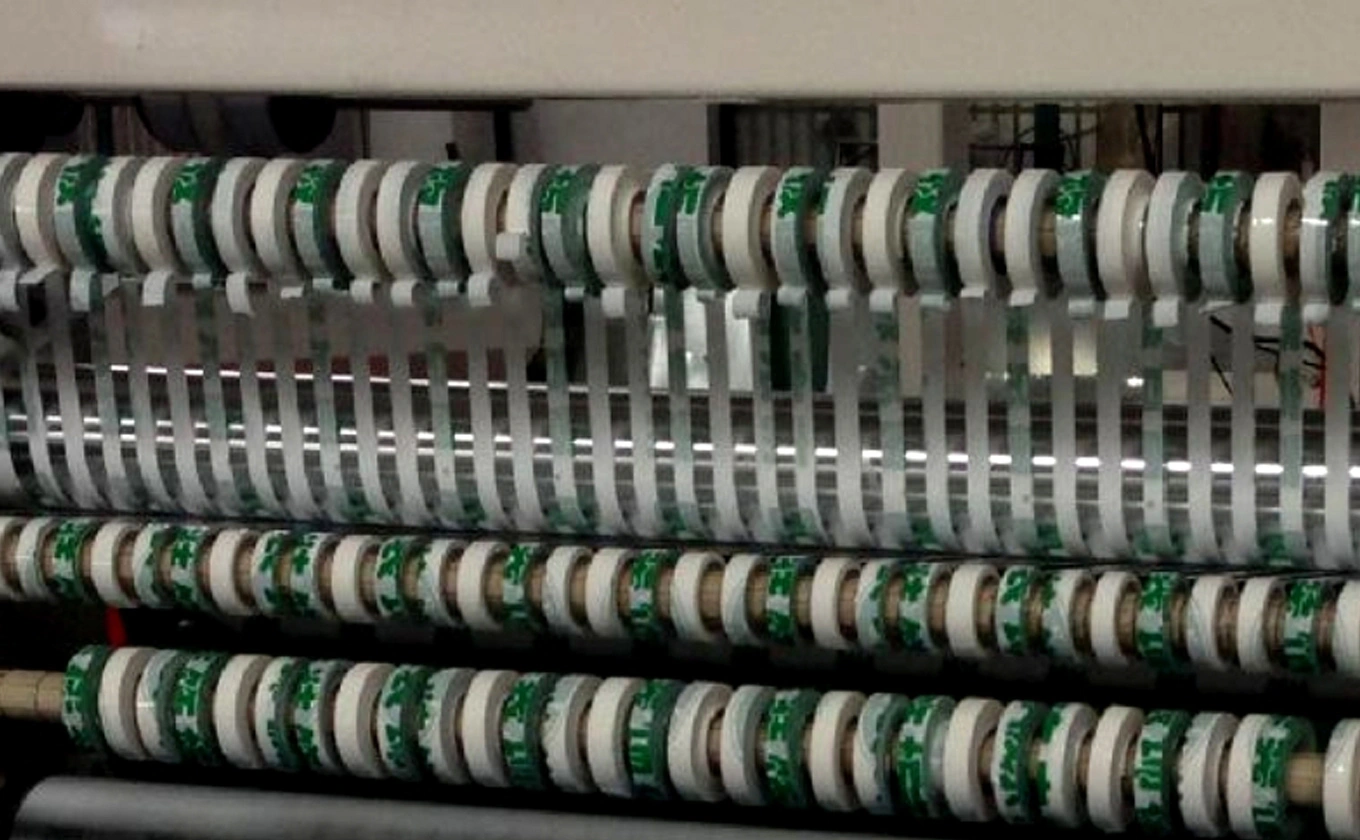

This Mini BOPP Tape Slitting Rewinding Machine is ideal machine cutting BOPP adhesive tape. Coloured BOPP tapes are widely used in logistics and inventory management, transparent tapes are highly used for shipping and sealing purpose. It can also be used in bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, ect.

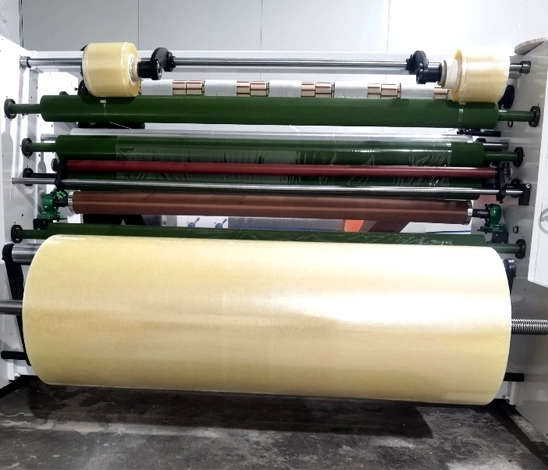

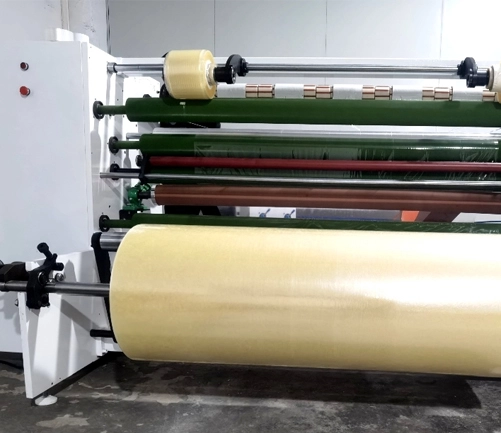

Characteristic of LY-1300/1600B BOPP Tape Slitting Rewinding Machine

Characteristic of LY-1300/1600B BOPP Tape Slitting Rewinding Machine
  • This gum tape slitting machine is PLC control, all models come standard with independent and freestanding operator panels, with long life service;

  • This adhesive tapes slitter has touch screen on human machine interface with high resolution colors and easy operator controls;

  • This polybag sealing machine has 4 rolls rewinding shafts on the machine with automatic turret, it can exchange rewinding roll automatically. Max rewinding diameter for 4 rolls is 200mm (around 500m length of Bopp tape);

  • This semi-auto high-speed BOPP tape slitting machine has synchronous belt transmission, can assure the noise much smaller;

  • This BOPP tape slitting machine with auto waste collector has three-stage length settings: Advanced three-stage length counting to ensure accurate curl length;

  • This paperboard slitting machine has automatic exchange axis: After the rewinding operation is completed, the two axes are automatically exchanged, which is easy to operate and high in efficiency;

  • This Industrial Adhesive BOPP Tape Slitting and Rewinding Machine has bow-shaped unfolding wheel: The unfolding wheel is a unique bow design can completely eliminate the wrinkling of the tape during unwinding or feeding;

  • This paper core loading machine uses electric magnetic powder brake: When the machine is stopped, the tape can be stopped instantly, the positioning is accurate, and the label is accurate;

  • This rewinding for bopp tape has electric edge collector: Compared with the traditional mechanical edge collector, the ratio of edge is 6:1, which means that the electric edge collector is only needed to be taken once, and the traditional need to take 6 times;

  • Automatic labeling function.

Technical Parameter of LY-1300/1600B BOPP Tape Slitting Rewinding Machine

Machine model

LY-1300/1600B

Min slitting width

10mm

Max unwinding diameter

800mm

Max rewinding diameter (4 rolls)

200mm

Max rewinding diameter (2 rolls)

350mm

Machine speed

0-250m/min

Total power

5.5kw

Power supply

380v/50hz/3phases

Machine dimension

2500×1400×1500mm/2500×1700×1500mm

Machine weight

2000kg/2300kg


FAQ of LY-1300/1600B BOPP Tape Slitting Rewinding Machine

FAQ of LY-1300/1600B BOPP Tape Slitting Rewinding Machine

What is the ratio of raw material to produce BOPP packaging tape?

Normally 1ton BOPP film + 1.7 tons glue Paper core, and we can get about 2 tons BOPP tape after drying.

What is the BOPP film and the coating thickness when using bopp tape slitting machine?

We suggest that the 22-micron BOPP film and 28micron glue.

What is the requirement of the glue?
Sloid content 54%±1 pressure sensitive acrylic adhesive.

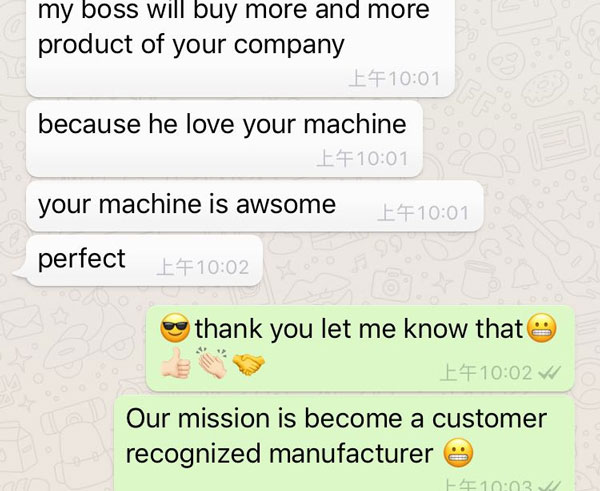

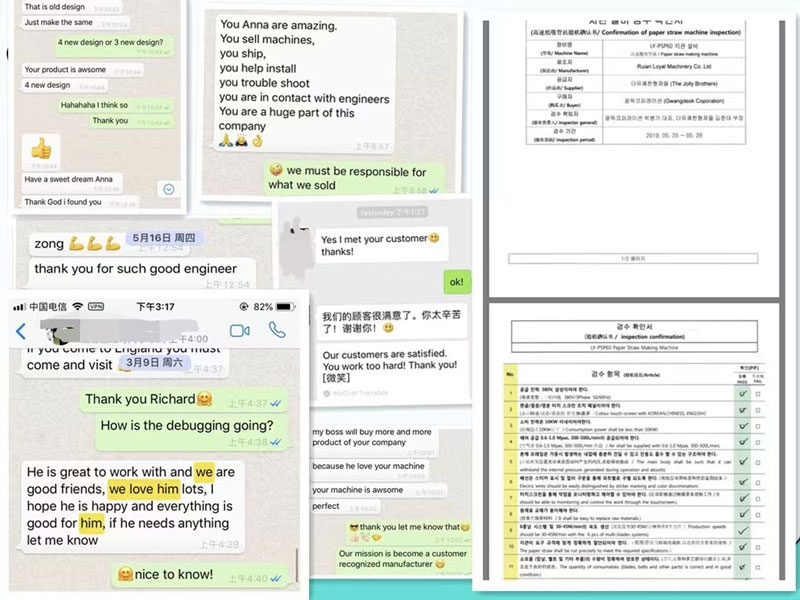

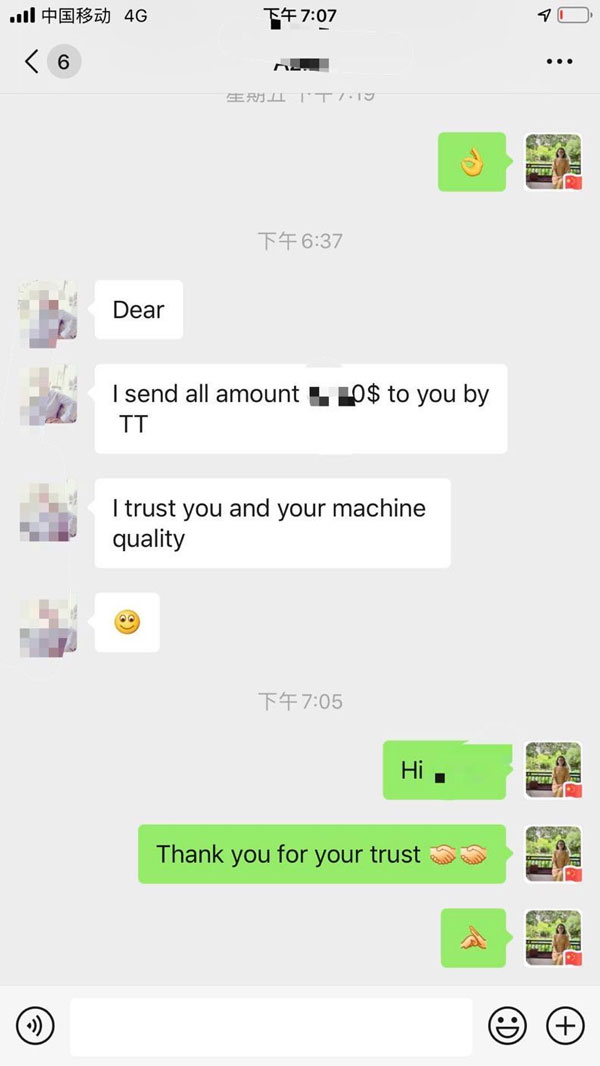

Clients Feedback of LY-1300/1600B BOPP Tape Slitting Rewinding Machine

Ly 1300 1600b Bopp Tape Slitting Rewinding Machine in China

Ly 1300 1600b Bopp Tape Slitting Rewinding Machine Manufacturer

Ly 1300 1600b Bopp Tape Slitting Rewinding Machine Supplier

Video of LY-1300/1600B BOPP Tape Slitting Rewinding Machine

Get In Touch
If you have any questions about Raloyal Slitter Rewinder & Cutting Machine, feel free to contact us!

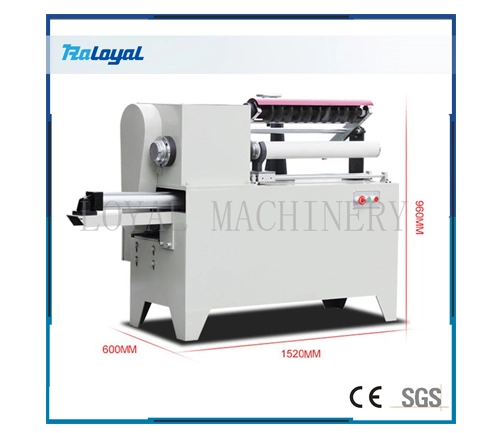

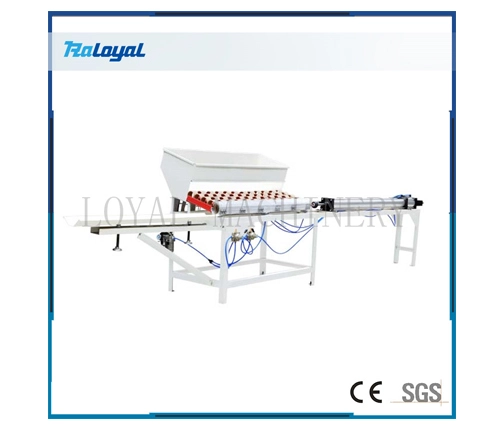

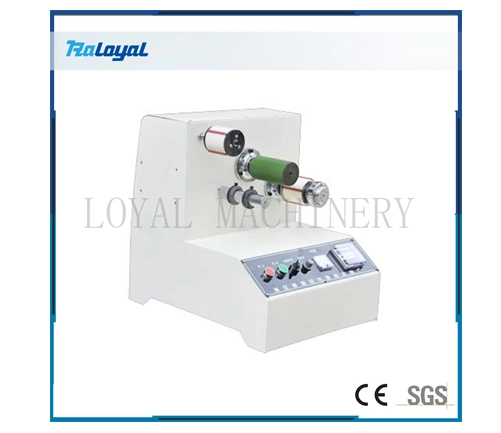

Related Tape Converting Machine
