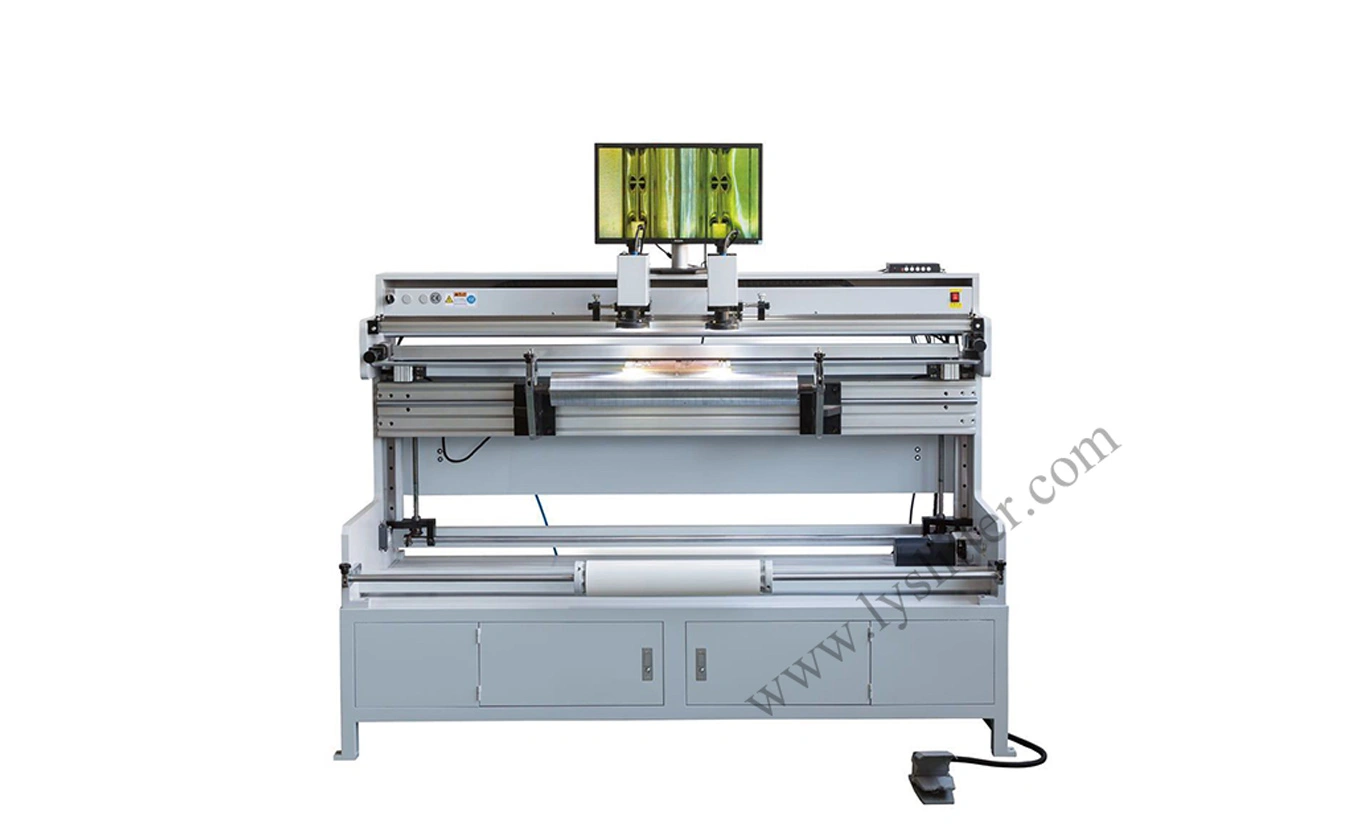

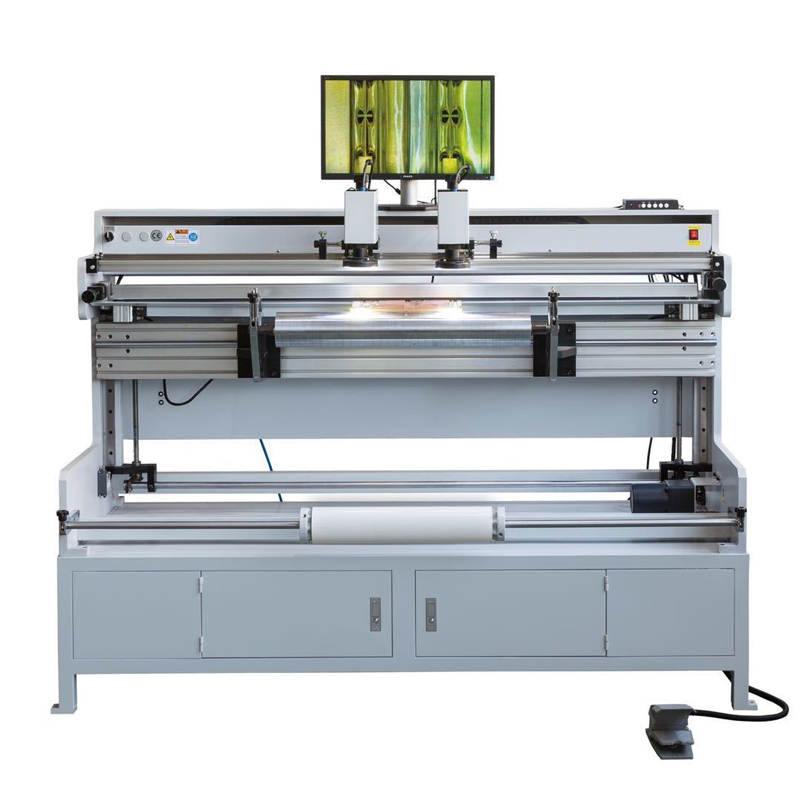

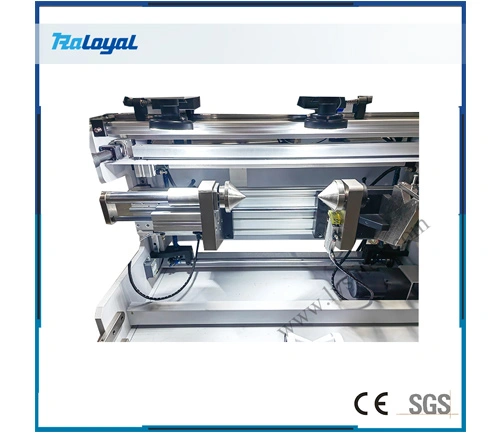

LY-350 Plate Mounting Machine is the product developedtowards the customers for wide flexo printing machines. Theyare mainly used to mount the printing rezin plate on theprinting cylinder. Machine including rack, plate operationdesk, high-definition color video camera, driving mechanismof plate roller lifting gear motor, corresponding control systemand other components.
Compared with the traditional one, the new pasting plate machine can meet the common demand of utilization of different brands flexo and relief block press. It adds functions such as bracket lifting and the plate cross fine-tuning, which not only makes the move of pasting plate more accurate and convenient, but also saves time and reduces unnecessary loss.
The rack construction with the wallboard structure after high-strength holistic processing has great working stability and is durable in use.

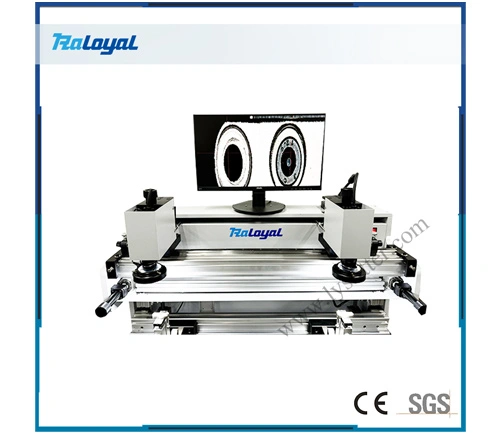

The 650-line color high-definition camera can reach 70-times amplification ratio, present clear images, possess high resolution ratio, and substantially improve the precision of the plate.

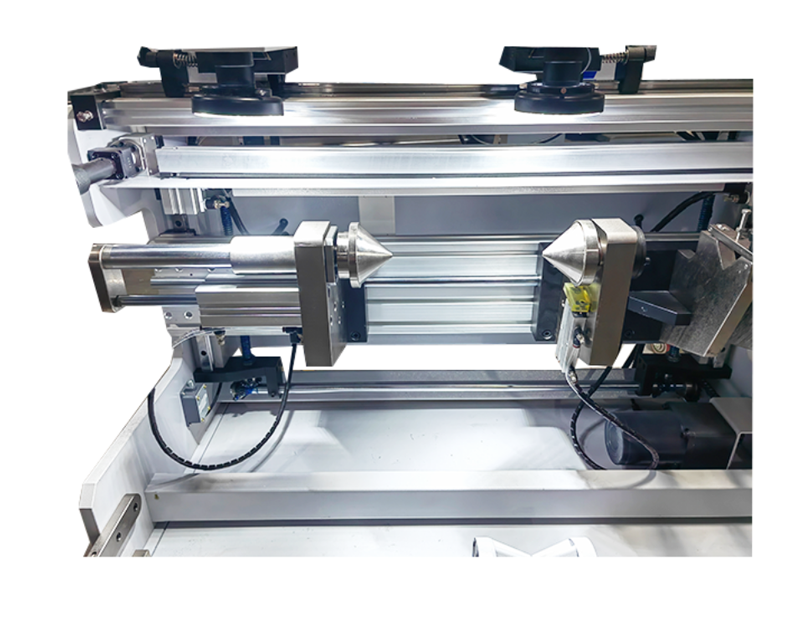

The lifting of plate roller structure adopts the gear motor drive control, which largely facilitates the operations of the plate.
The complete machine adopts the centralized control of circuits, which is convenient for operations and has relatively high degree of automation.
The 19-inch high-resolution liquid crystal display provides clear and bright images and effectively alleviates the visual fatigue of operating workers.

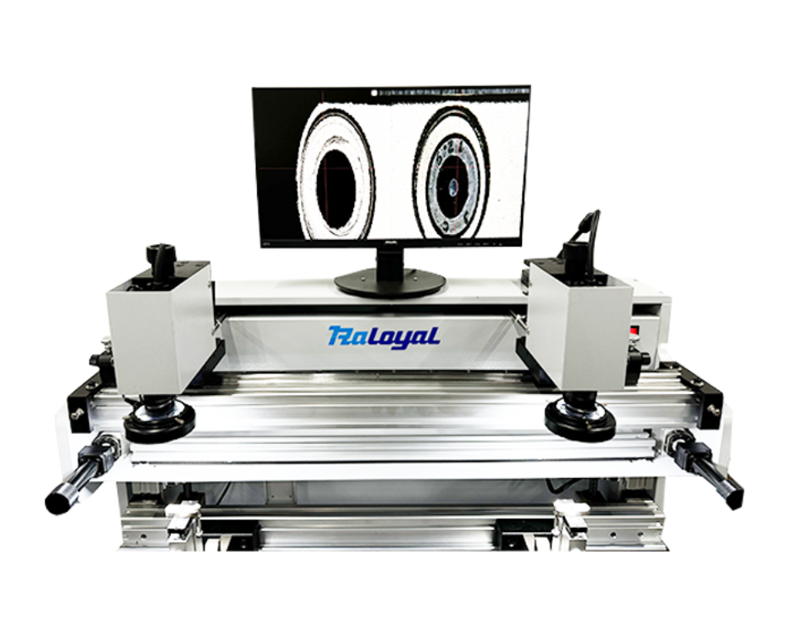

Model model | LY-350 |
Effective Width of the Plate | 350mm |
Diameter of the Central Spindle | 210mm |
Precision of the Plate | Better than +0.1mm |
Resolution Ratio of the camera Lens | 650 Line |
Maximum Focal Length of the camera Lens | 70 Times |
Gear Motor Drive | 300m/min(Plate Roller) |
