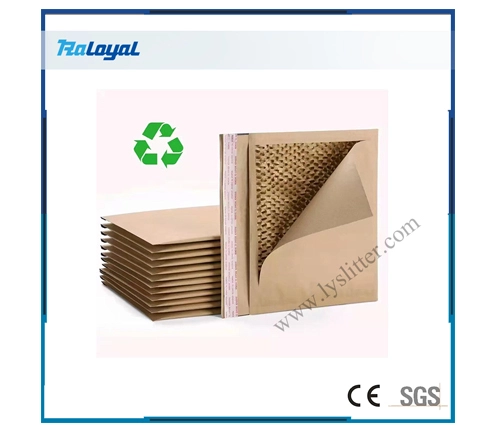

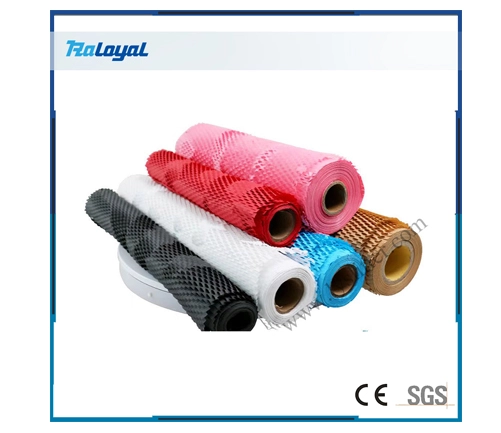

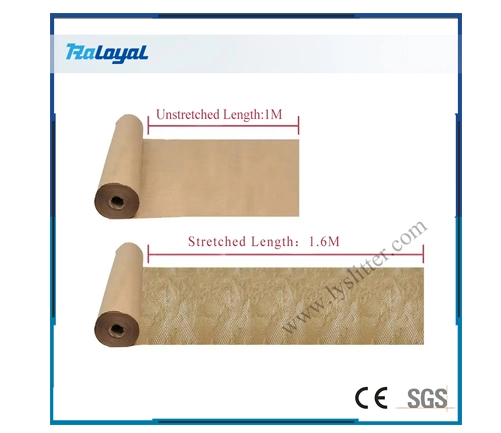

This type of honeycomb buffer paper die-cutting machine is our matured innovation. It is an ideal machine for making honeycomb paper, which can be widely used in e-commerce, express logistics, the printing consumables industry, ceramics, elec
tronic products, sporting goods, flower art, gift packaging and other industries with the most competitive price.
End Use:
Food
Beverage
printing consumables industry
Cosmetic & Personal Care
Gift packaging
Ceramics
Transportation
Electronic products
Sporting goods
Flower art
Others (Logistic, Entertainment, Security, bond paper, matte couche, paper semi-gloss paper , thermal transfer paper , direct thermal paper , metallized paper ,cardboard paper, thermal cardboard etc.)

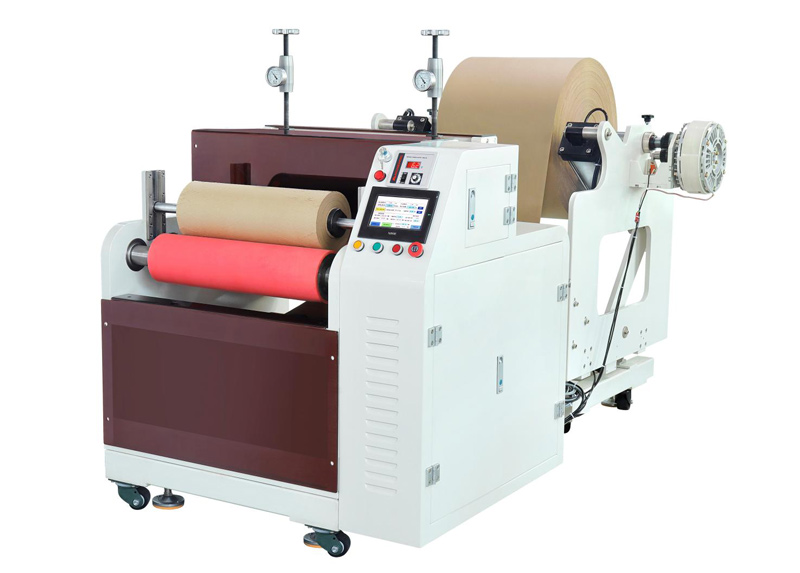

LY-500Y Honeycomb Paper Making Machine is specially designed for die-cutting honeycomb paper. It is another innovation of Raloyal.
Characteristic:
1”,1.5”,2”, 3”tube all can be used for this type machine.

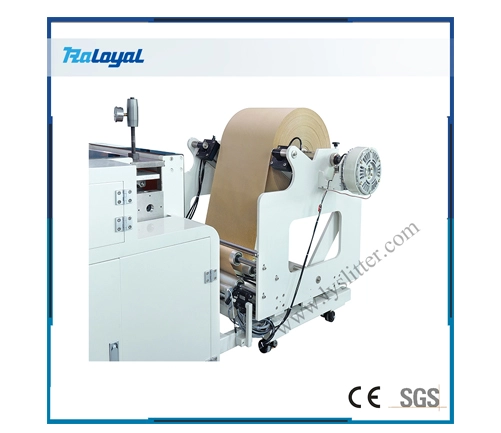

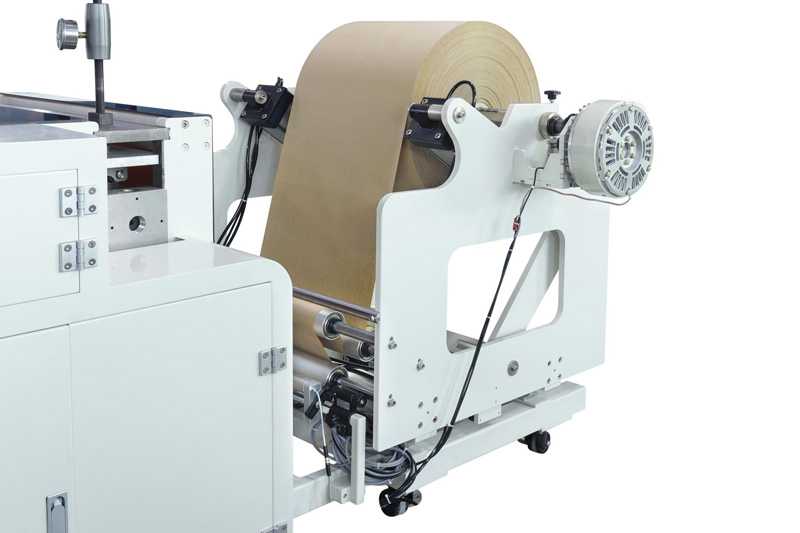

Unwinding diameter 1400mm
Die-cutting speed 200m/min
Rotary die cutting function.

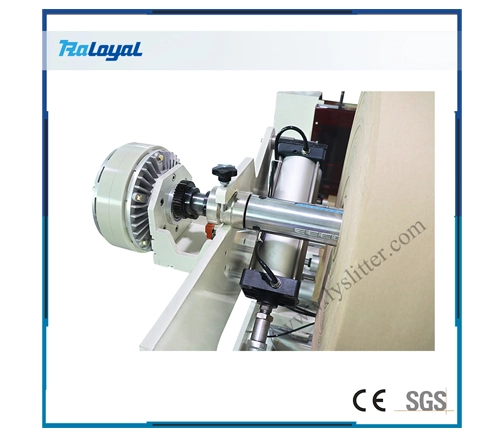

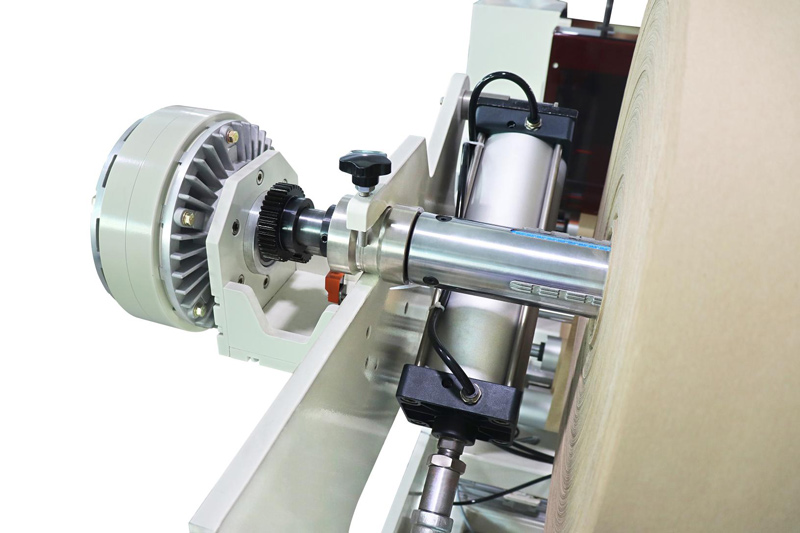

The unwinding tension is upgraded to automatic tension instead of taper tension in unwinding.
The web guide system is highly accurate, easy operation, fast and has strong anti-interference ability.

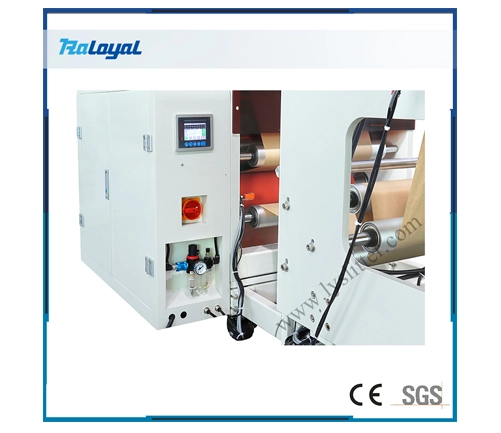

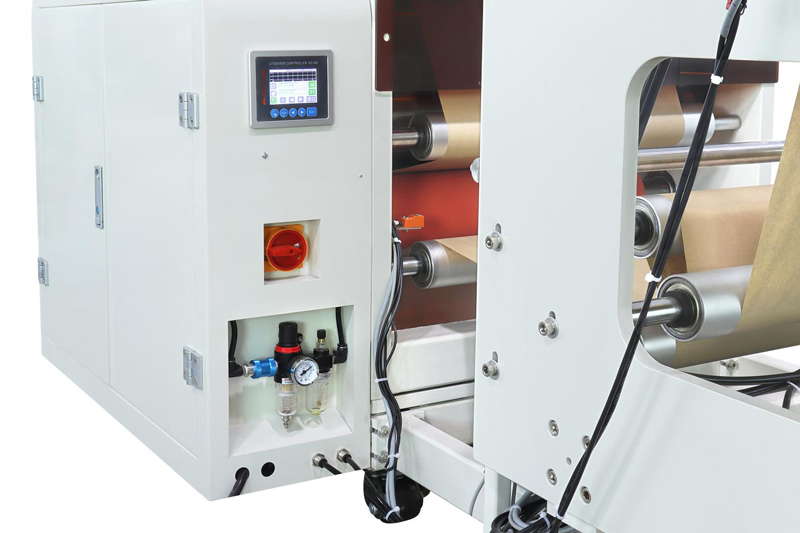

PLC intelligent integrated program, automatic control of unwinding tension, rewinding meters, human-machine interface and other automatic control programs.
Adopt Variable frequency motor, Speed is controlled by PLC program and HMI parameters

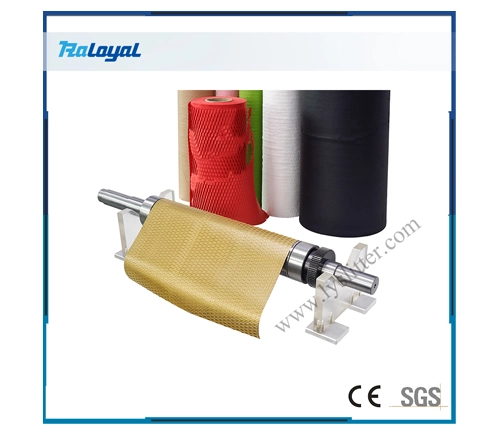

Die-cutting is equipped with magnetic cylinder and flexible die, which has and the service life of die can reach to 1.3 million meters. No need to replace the roller, only need to replace the flexible die, save the maintain cost.

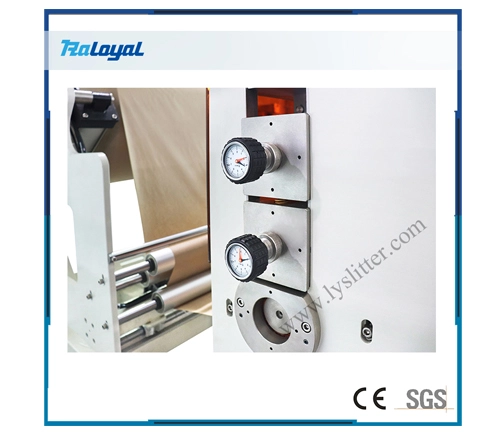

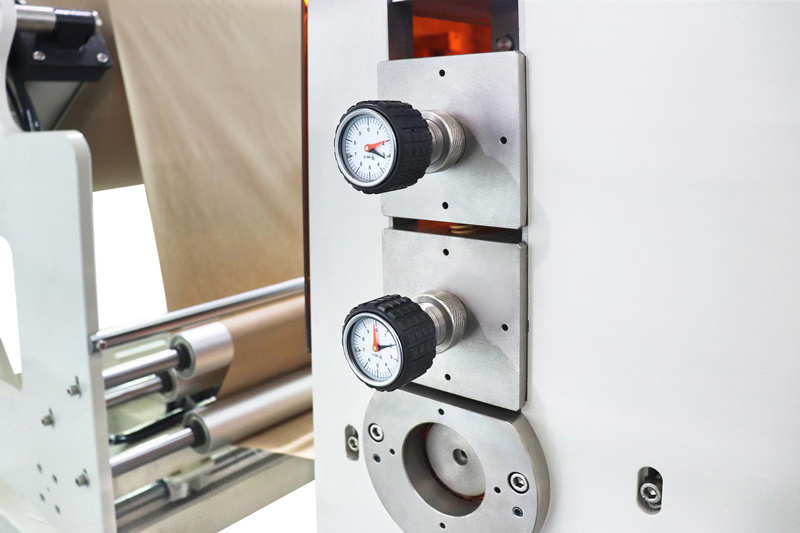

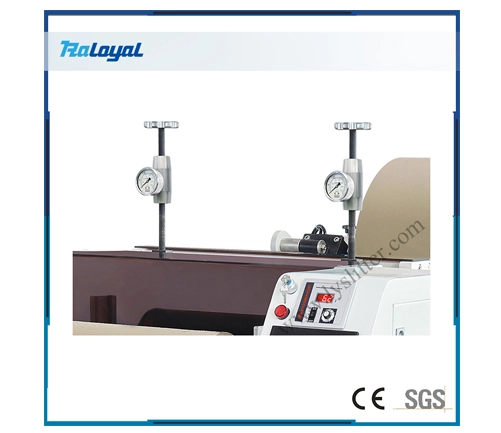

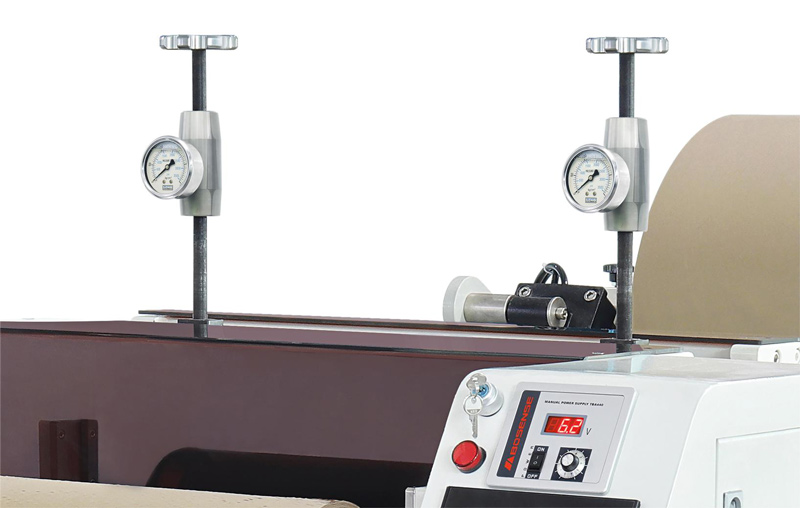

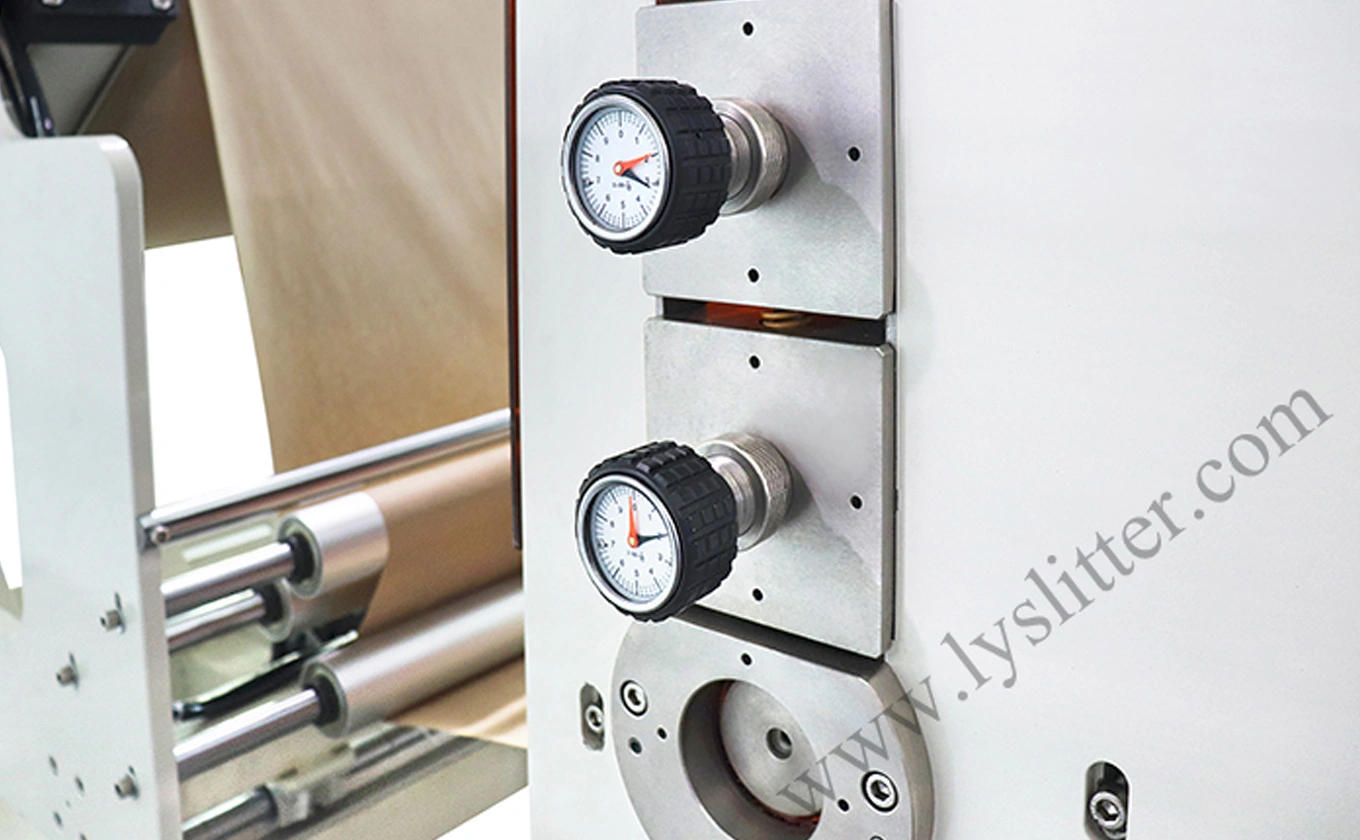

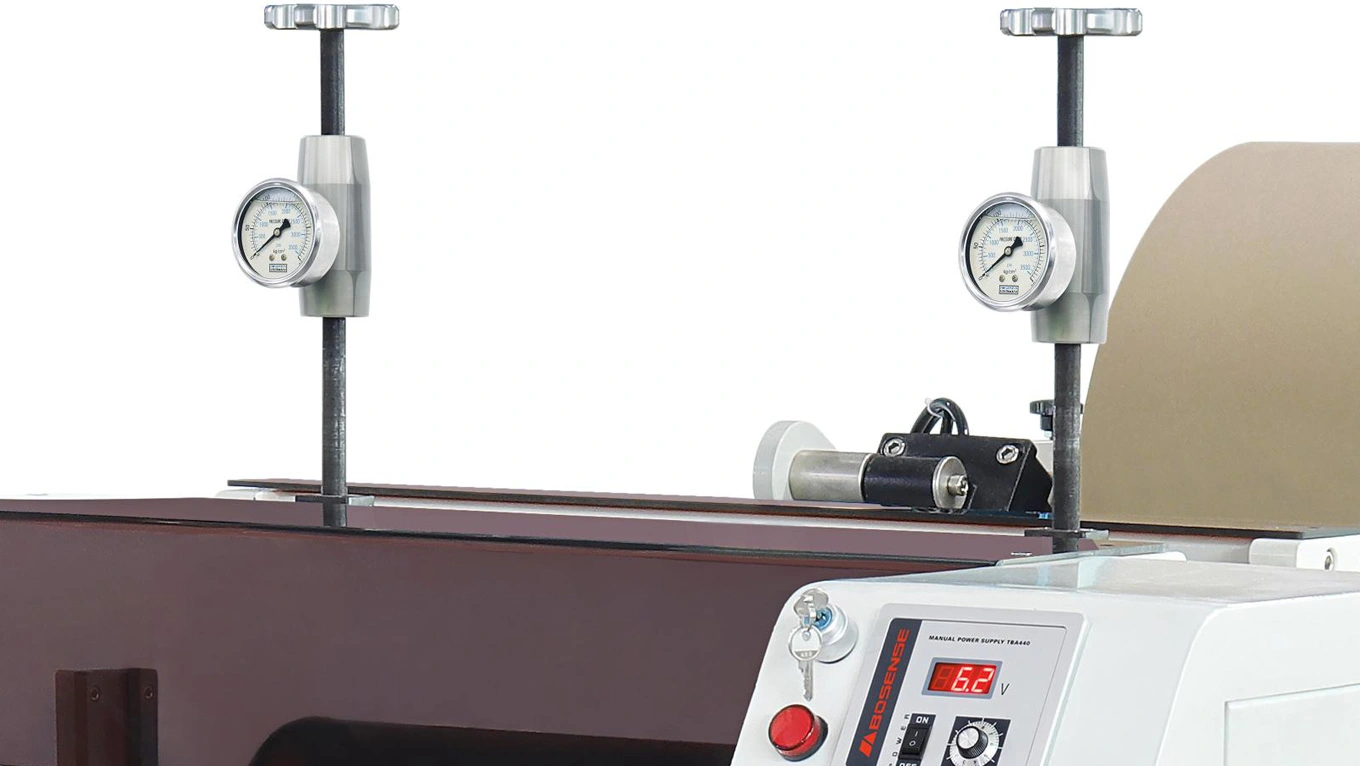

Additional die pressure gauges, let worker adjust the pressure of die cutting easily.
Our Difference
The service life of the die is reach to 1.3 million meters. When the flexible die is worn out, the machine does not need to replace the magnetic cylinder, but only the flexibledie.
Advantage
Equipped with PLC control system and registration sensor, it can be configured with high-precision rotary die-cutting system. The machine is suitable for die-cutting honeycomb paper. Unwinder, rotary die-cutting and rewinding can be completed at one time.Die-cutting is equipped with magnetic cylinder and flexible die, which has and the service life of die can reach to 1.3 million meters. No need to replace the roller, only need to replace the flexible die, save the maintain cost.The machine is equipped with a web guide device to guide the material smoothly. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting and smooth operation.
1 | Machine model | LY-500Y |
2 | Service Life Of Die | 1300000 Meters |
3 | Max die cutting speed（depend on material） | 0~200M/min |
4 | Die Cut Width | 0~500MM(as required) |
5 | Effective winding width | 500MM(as required) |
6 | Rewinding Length | 0~800M |
7 | 1400MM | |
8 | Air Supply | 0.8MPa |
9 | Power supply | 380V/5.5KW |
10 | Dimension | 2.8M(L)X1.15M(W)X1.5M(H) |
11 | Weight | About2000kg |
250KG.
12 months guarantee, life-long time technic maintenance and support. 24 hours feedback when receive the client writing militance proposal.
Any part damage caused by non-human factors within the warranty period can be replaced for free, excluding machine consumable parts. Maintenance of part damage caused by violation operation or mis-operation of operators will be charged with costs of parts.
The price of spare parts exceeding the warranty period shall be the lowest ex-factory price of the seller.
For extra accessories beyond the standard configuration of contractual machine, the price shall be the lowest ex-factory price of the seller.
Any time you have question about slitter, we are always here to provide service.
Machine as usual is integrated and we do not dismantle before delivery.
So just connect the power cable and air pipe is ok.
For the operation, we take instruction video for all customers before delivery to guide you how to operate, and provide the instruction file.
Also, we provide service: our engineer and technician open live training until you learned it and run it well.
Most feedbacks we received from our customers is “Raloyal slitting machine is the most cost-efficient type slitter machine in the market”.
Yes, exactly. Thanks for our regular customers frank and sincere praise for Raloyal.
Raloyal understand it is not easy for all the enterprise to run a company under the pandemic and also the war make the market dim.
Raloyal is a company who are willing to and have did that minus their profit without compromising on quality to support the customers to overcome the current hard situation.
Raloyal insist their mission all the time: Providing the sustainable, professional solution to the global customer with the most competitive price, excellent service, and lifetime support.
Raloyal, your loyal partner.
