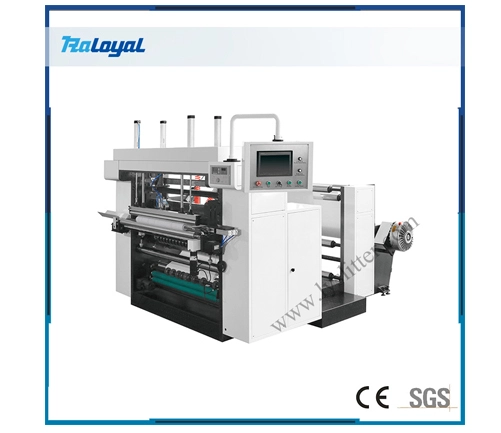

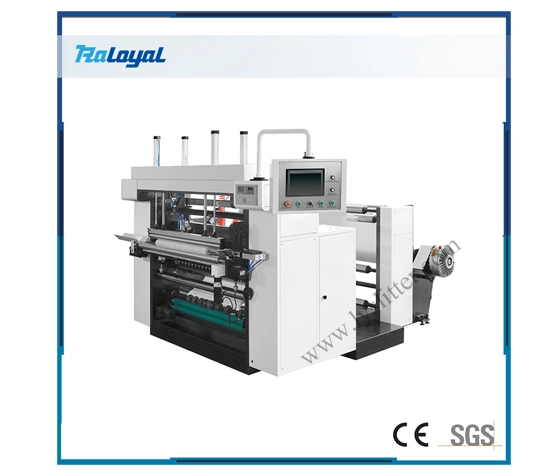

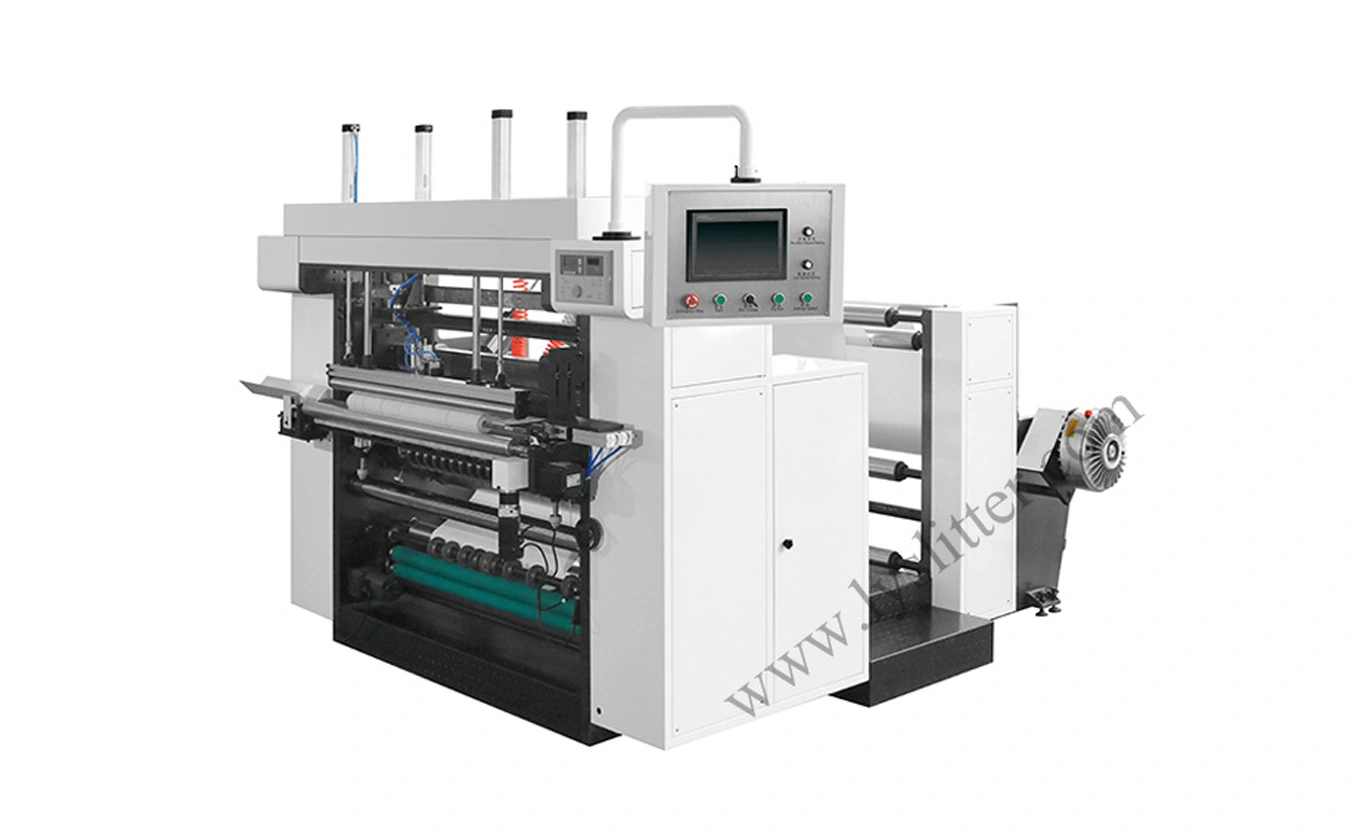

LY-FS900/1100 Semi-Auto Thermal Paper High Speed Slitting Machine

Use Slitting thermal paper, bond paper, Cash register paper, Fax Paper, POS paper, ATM paper, and other small ribbon roll.

Whatsapp/Wechat:+86 18367750188

Email:ly@lyslitter.com

To get an instant quote Now

Application Our Difference Frequently Asked Questions Clients feedback Video

Application

It is mainly suitable for slitting all kinds of thermal paper, bond paper, Cash register paper, Fax Paper, POS paper, ATM paper, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, and other small ribbon roll.

Application industry:
On the basis of the end users/applications, major market share and growth for each application, including:

Point of sales (POS)
Automated teller machine (ATM)
Cash register
Credit card machine
Visa card machine
Mobile printer
Thermal printer
Adding machine
Swiping machine

Our Difference

Semi-auto
Action finished by auto

Advantage
Auto loading, auto roll pushing out, auto cross cutting, auto glue spraying.
Equipped with PLC and touch screen, all the parameter are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameters for machine running automatically.
Equipped with Auto Tension Control System for unwinding tension.
With meter counter. Got to the setup data, the machine stops and alarms.
It adopts Synchronic Belt to avoid the over lap problem.
It adopts frequency inverter for main inverter motor driving, the speed can be displayed on the operation panel.
All transmission rollers have been dynamic/static balance treated.
Equipped with emergency switch.

Technical parameter:

Machine model	LY-FS900	LY-FS1100
Unwinding diameter	1150mm	1150mm
Unwinding width	900mm	1100mm
Rewinding diameter	80mm	80mm
Slitting width	≧20mm	≧20mm
Rewinding core diameter	Φ10mm-25mm	Φ10mm-25mm
Machine speed	200m/min	200m/min
Power supply	380V/50HZ/3.1KW	380V/50HZ/3.1KW
Machine weight	2000kg	2800kg
Machine dimension	290021501950mm	290023501950mm

Frequently Asked Questions

1. What is the length of 1 ton raw material?(width 860mm, 48GSM)
About 24225m.

2. How many pos rolls can be produced in 1 ton?
If 57mm*40m, it can produce 9080 pos rolls.
If 57mm*50m, it can produce 7260 pos rolls.
If 80mm*50m, it can produce 5330 pos rolls.
If 80mm*70m, it can produce 3806 pos rolls.

3. What is the output in one minute?
If 57mm (2 1/4″)*40m, 1 minute can produce 36 pos rolls
If 57mm (2 1/4″)*50m, 1 minute can produce 32 pos rolls
If 80mm (3 1/8″)*50m, 1 minute can produce 24 pos rolls
If 80mm (3 1/8″)*70m, 1 minute can produce 19 pos rolls

LY-FS900/1100 Semi-Auto Thermal Paper High Speed Slitting Machine

Application

Our Difference

Frequently Asked Questions

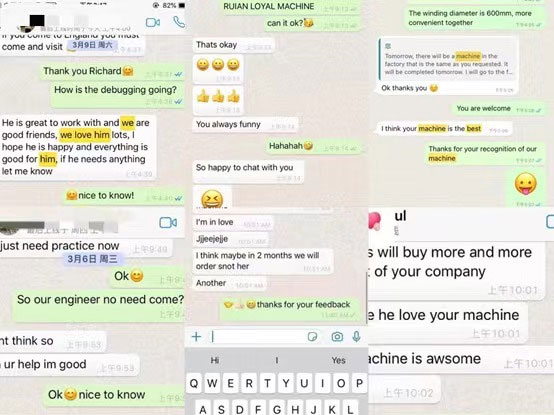

Clients feedback
