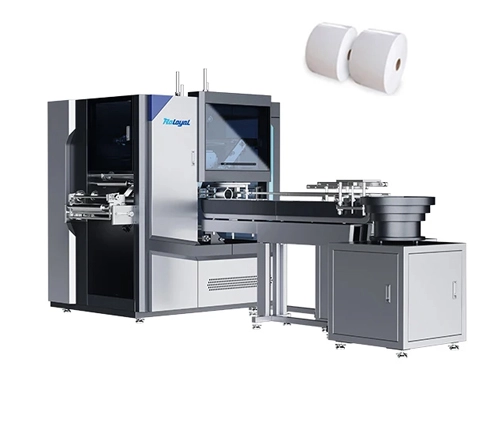

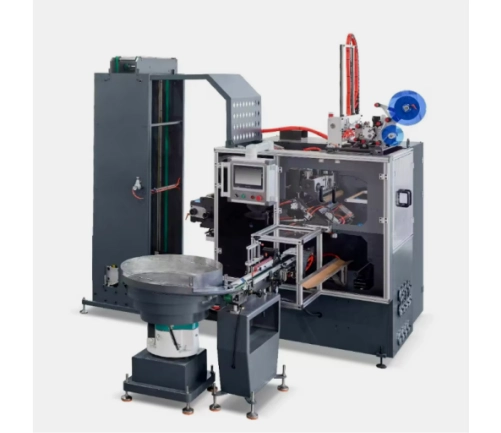

LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder
LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder
LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder
LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder
LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder
LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

LYRG-370 Automatic non-stop turret rewinding machine is ideal intelligent narrow web label sticker automatic production converting equipment.

To get an instant quote Now

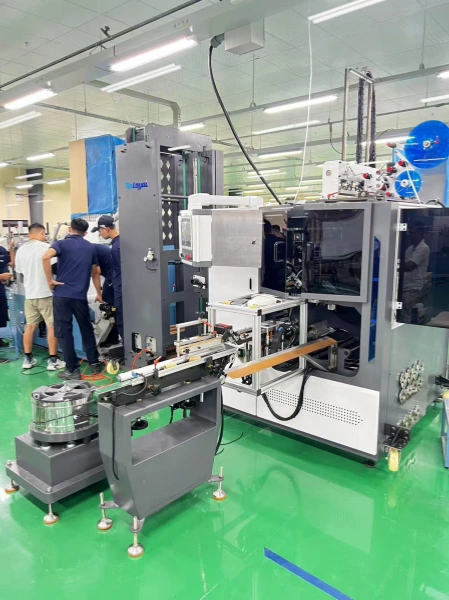

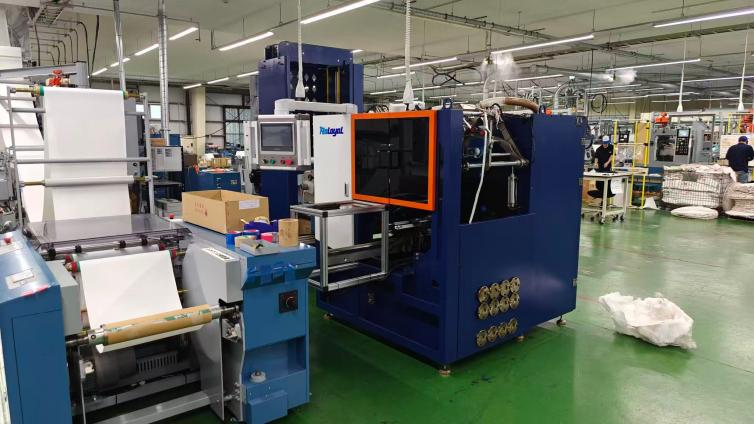

Application of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

Application of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

This type machine is our latest innovation for small label rolls automatic cutting and rewinding with high-efficiency.

Characteristic of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

Characteristic of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

LYDG series turret rewinder is with matured and most advanced technology in the world, and own the ability to work in-line with die cutting machine, printing machine, slitting machine and work off line as a stand-alone solution with a separate unwinder. Automatic tube threading, automatic gluing, automatic cutting & rewinding and automatic label sticking, which can finish your customers' orders quickly, shorten the lead-time, increase your productivity, save your labor cost and raise your product competitive advantage in the market. It can accept both printed labels and blank labels rewinding.

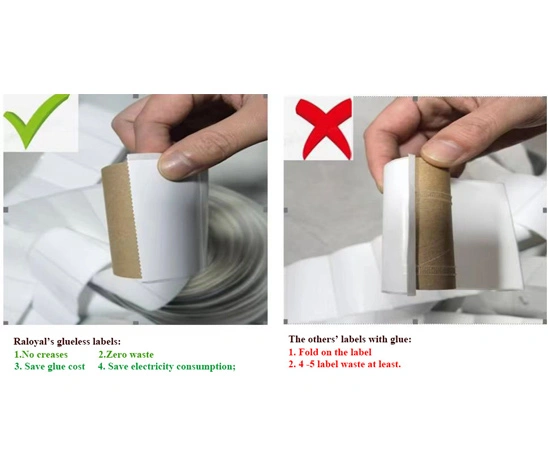

1.Glusless - eco friendly,also can save both glue and electricity cost
2.Automatic tail sticking

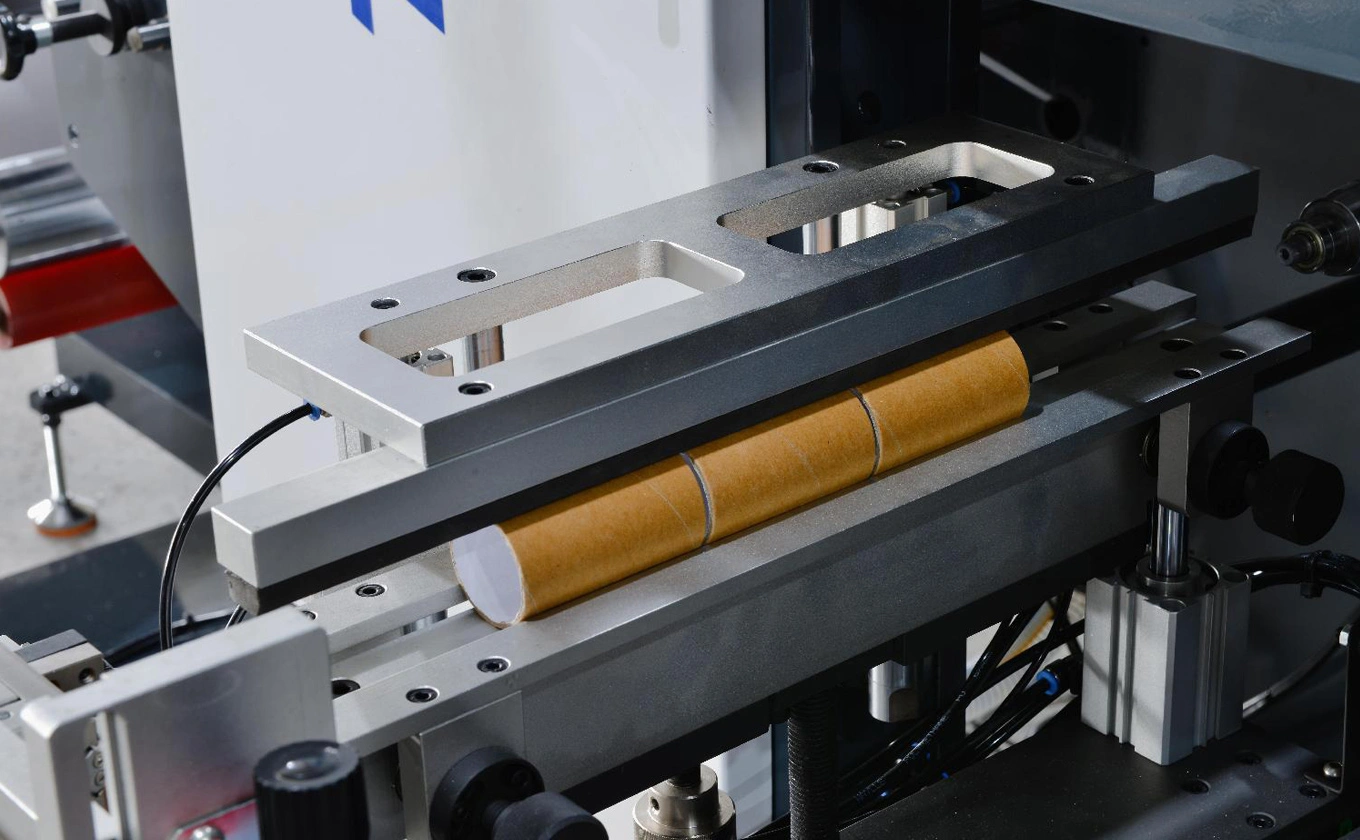

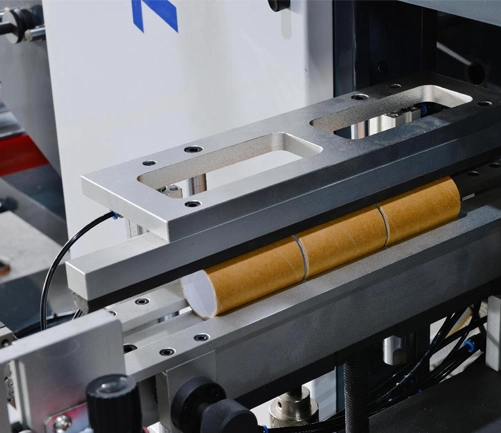

3.Automatic paper core loading
4.Automatic roll eject

5.Servo driven and with accurate loop tension control
6.Precisionly cut in gap between labels just right


Technical Parameter of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

Machine modelLYD-370LYD-470LYD-570
Rewinding diameterф350mmф350mmф350mm
Rewinding speed50-120m/min50-120m/min50-120m/min
Min. Rewinding width30mm50mm50mm
Total power10kw12kw15kw
Machine Dimensions1500*3000*1700mm1500*3200*1700mm1500*3400*1700mm
Weight2200kg2500kg2800kg

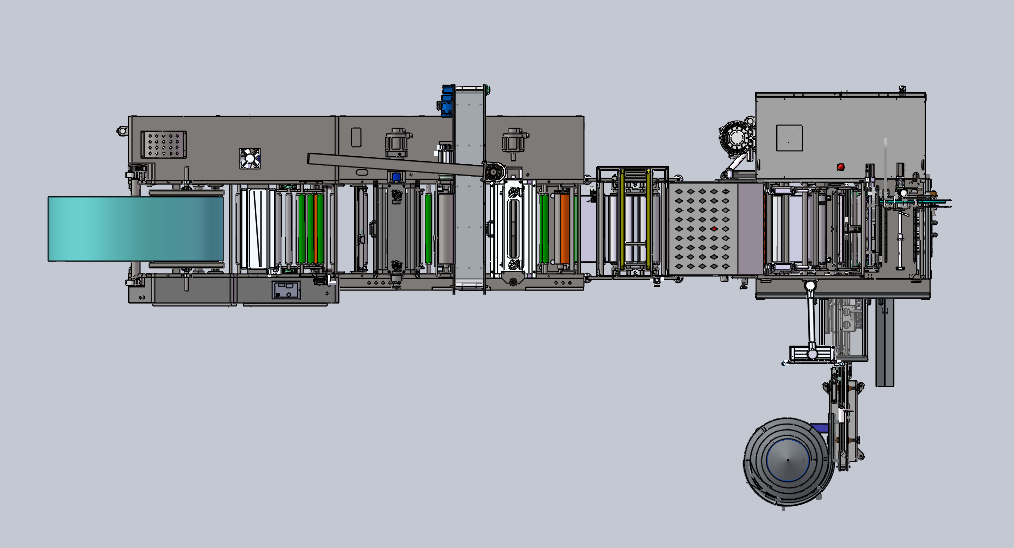

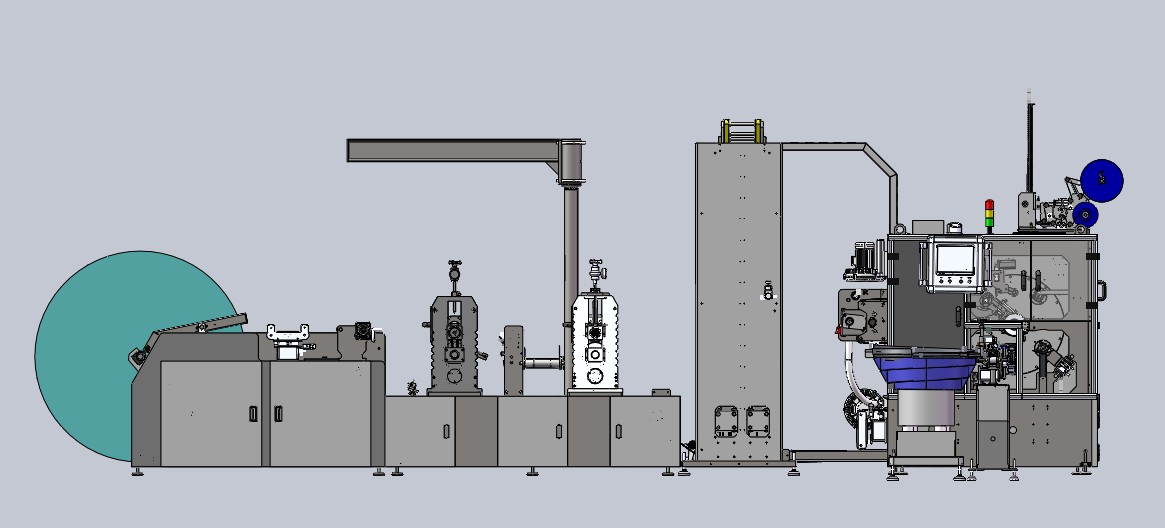

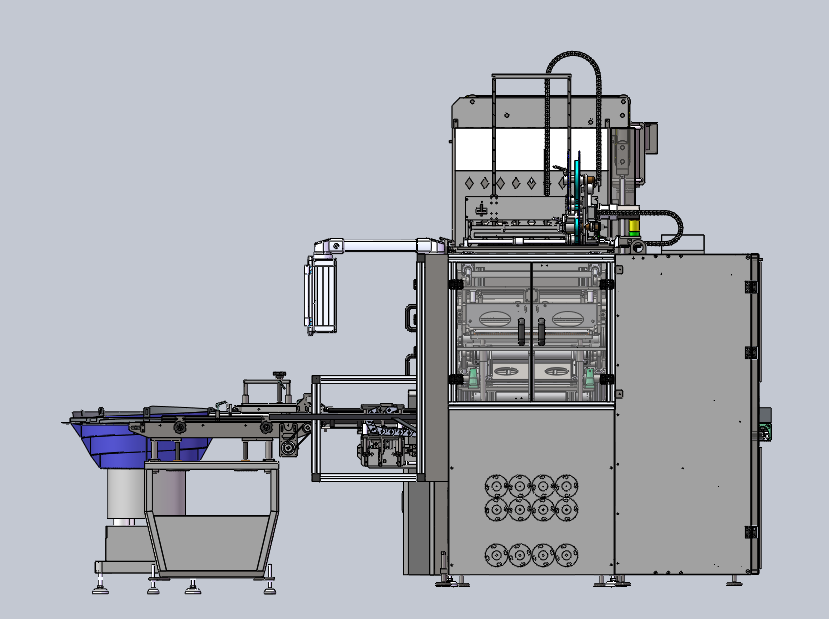

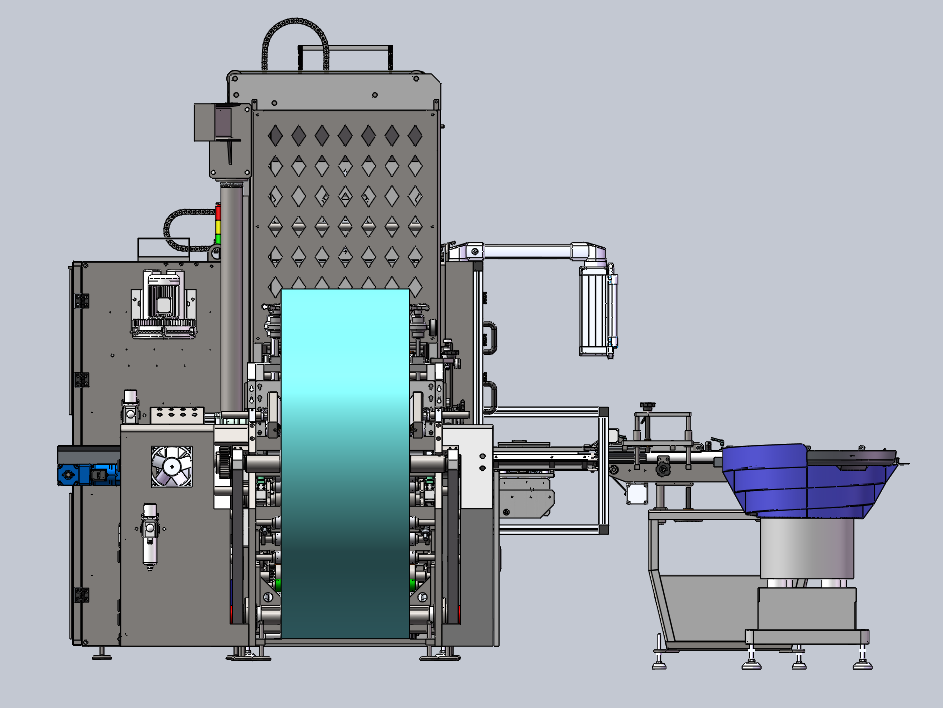

3D Model Diagram of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

3D Model Diagram of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder


3D Model Diagram of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder


3D Model Diagram of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder


3D Model Diagram of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder

Video of LYDG-370/470/570 Full Automatic Glueless Non-stop Turret Rewinder
