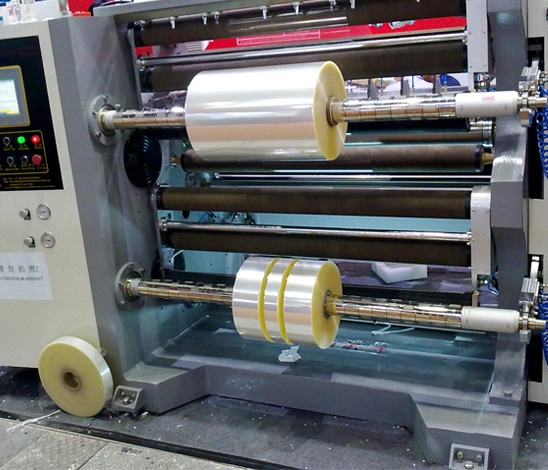

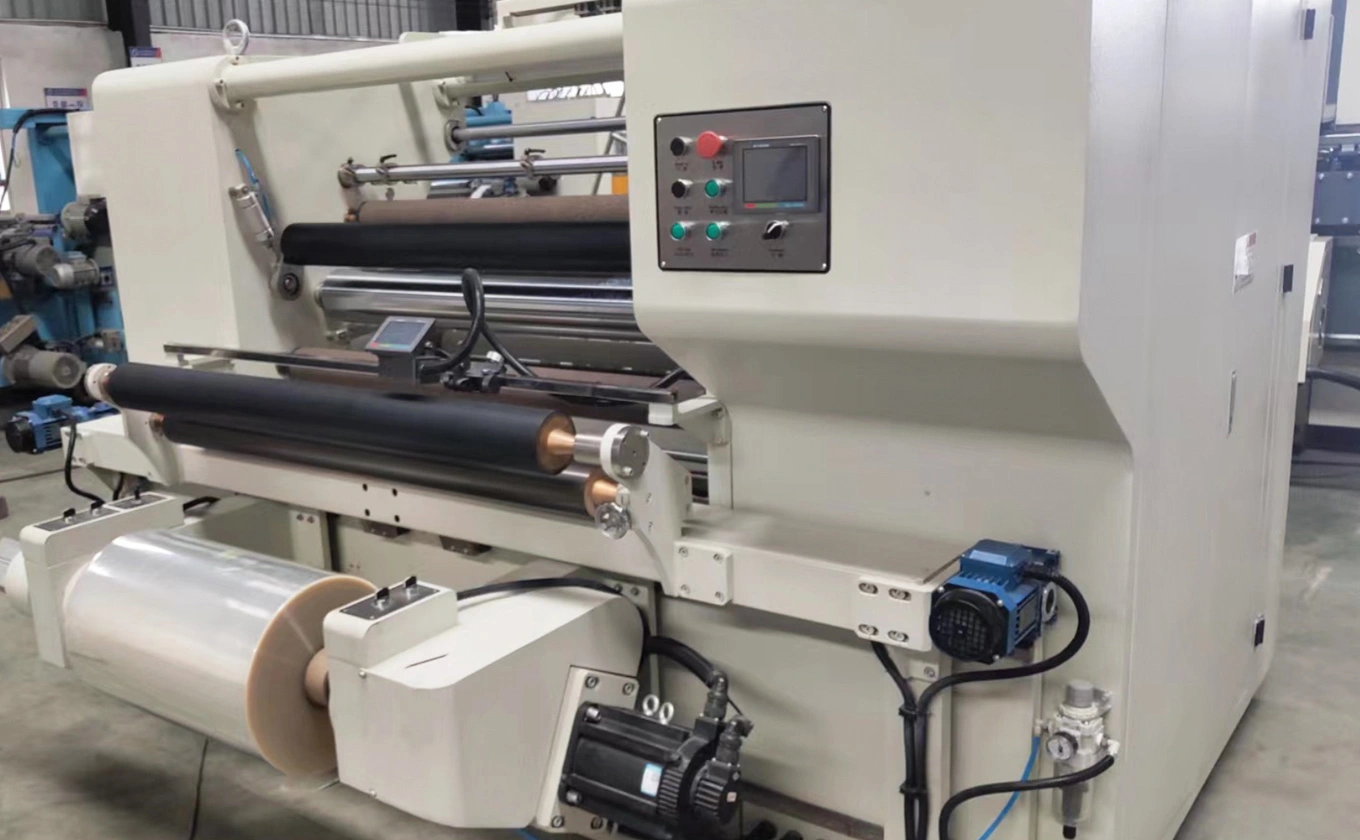

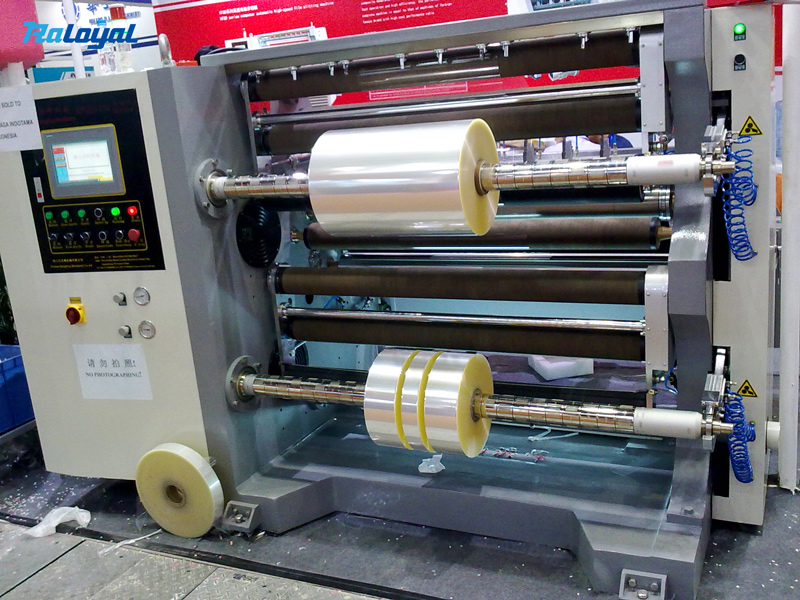

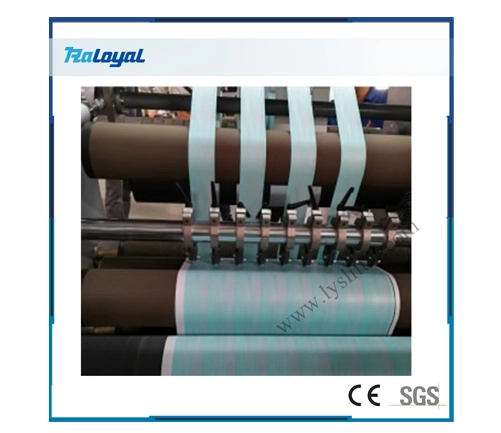

This kind slitting machine is an ideal for slitting the PE, PVC, PET, BOPP, CPP and etc film, which is professionally used for soft packing industry.
Bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, etc.
Speed can reach 500m/min;
Unique press roll design for each roll;

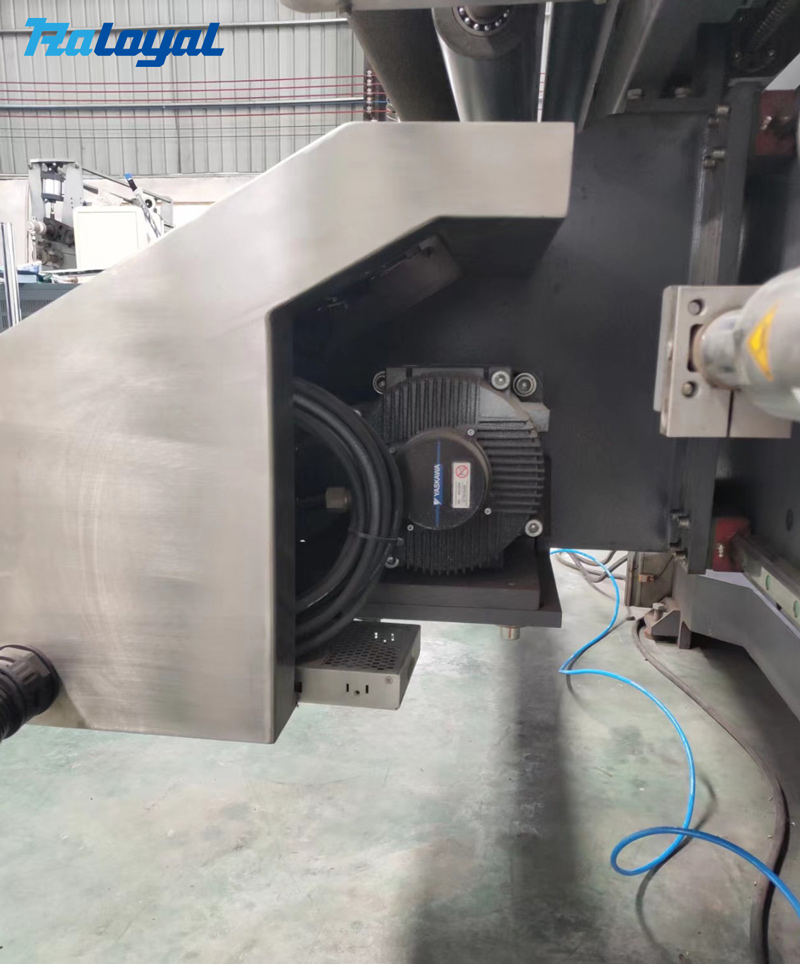

4 servo motor with driver control;
| Machine model | LYS-S1300 | LYS-S1600 |
| Unwinding width | 1300mm | 1600mm |
| Machine speed | 500m/min | 500m/min |
| Unwinding diameter | Φ800mm | Φ800mm |
| Rewinding diameter | 2 × Φ600mm | 2 × Φ600mm |
| Slitting film thickness | 20-120 um | |
| Paper tube correction | Line laser removes by linear Guides | |
| Edge handling | Blower blowing edge | |
| The independent press roller | Φ 60 ( 6 sets ) | |
| Type of slitting | Slitting by blade ( 8 sets ) | |
| Error correction | ≤ ±0.5 | |
