Paper Cup Printing Machine
Paper Cup Printing Machine
Paper Cup Printing Machine

Paper Cup Printing Machine

This Roll to Roll Paper Cup Flexo Printing Machine is suitable for printing paper, paper board, paper cup, thermal paper, high-grade self-adhesive label and so on.

To get an instant quote Now

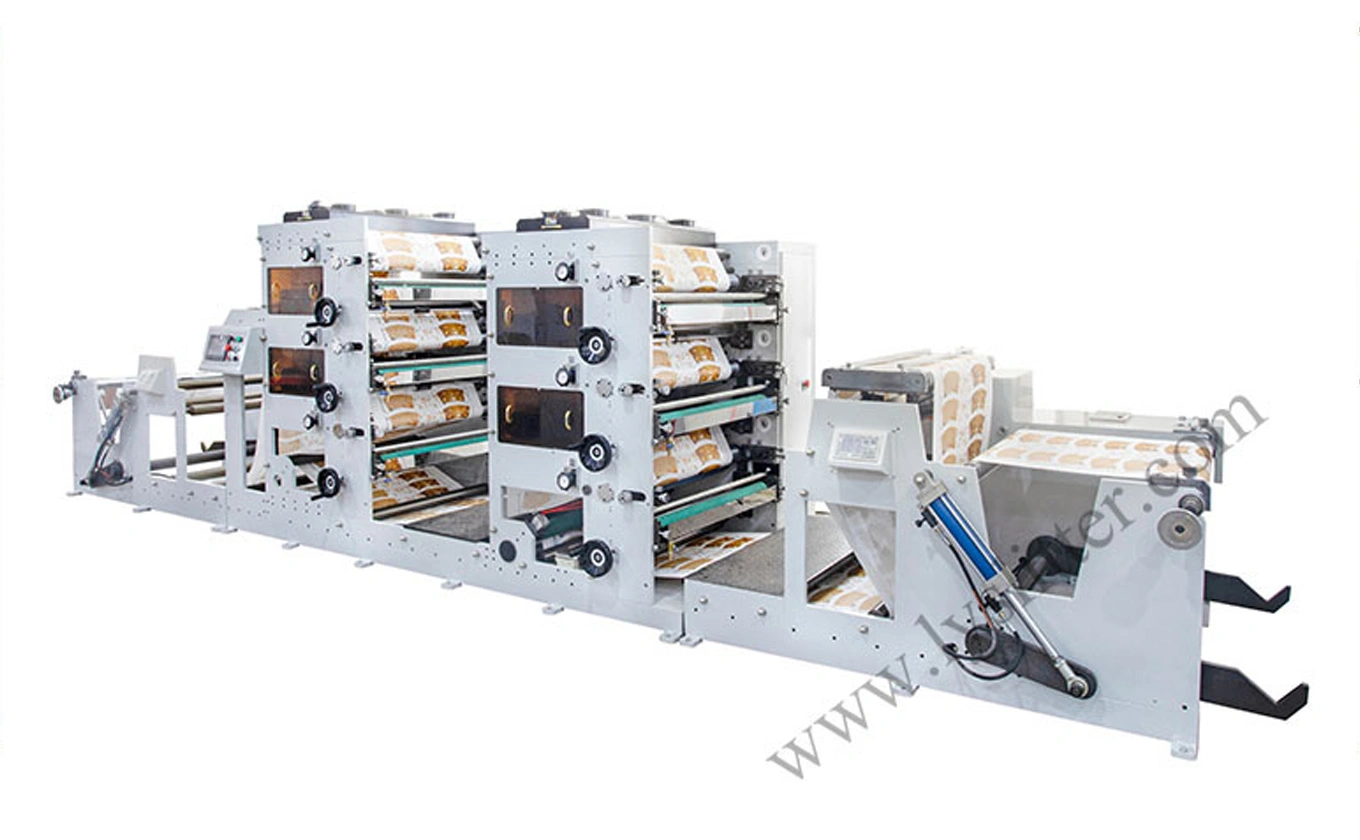

Application of Paper Cup Printing Machine

Application of Paper Cup Printing Machine

It is suitable for printing paper, thermal paper, paper board, paper cup, paper plate, paper bowl, wrapping paper, advertise paper, platter paper and etc., advertise paper; platter paper.


Application industry:
On the basis of the end users/applications, market share and growth for each application, including:

  • Food

  • Beverages

  • Catering Industry

  • Stationeries

  • Bookshop

  • Publishing House

  • Others

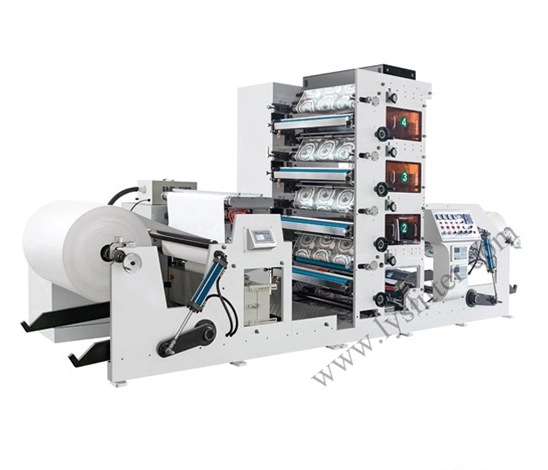

Characteristic of Paper Cup Printing Machine

Characteristic of Paper Cup Printing Machine

According to Smither’s new data, as the global demand for flexo printing grows, the market for IML printing machine is set to reach $188.9 billion by 2027.


Our Difference

PLC Control And Touch Screen
Automatic cylinder lifting when machine stop to avoid the material broken
High Printing Precision
Most Competitive Price

Advantage
The product has the characteristics of wide printing range, no pollution of ink, high economic benefit and fast printing speed.
1. Main motor adopts imported electric frequency speed regulation.
2. Automatic tension control is used for unwinding.
3. Ultrasonic rectification is used for web guide.
4. Part of the printing, using ceramic anilox rollers, has the characteristics of long service life, wear resistance, corrosion resistance.
5. Printing unit adopts 360 degrees circumscribed alignment adjustment. The printing units can be individually joined or loosened so that other printing units continue to print.
6. Each printing unit is equipped with infrared drying device.
7. Machine with die cutting function.
8. Automatic metering.
9. Parking roller can be automatically disengaged, and low speed dynamic convey to prevent dry ink.
10. Rolls for paper, printing, automatic infrared drying, die cutting and rewinding finished once.


We are a professional manufacturer specializing in paper and label converting equipment, as well as printing machines.

We have established partnerships with global companies such as All4Label, Avery, and Arclad Group, along with Greece's largest food paper packaging company. In China, we collaborate with leading enterprises, including Guanhao—one of the country's largest paper product companies—and Fangda, the biggest paper company in China.

Our core business focuses on providing complete solutions for paper and label converting equipment and printing needs, tailored to meet our customers' requirements.

Technical Parameter of Paper Cup Printing Machine

Model

RY5-320

RY5-450

RY5-560

RY5-850

Printing speed

65m/min

65m/min

65m/min

65m/min

Printing color

5

5

5

5

Paper max width

320mm

450mm

560mm

560mm

Max printing width

310mm

440mm

550mm

550mm

Max unwinding diameter

600mm

600mm

600mm

600mm

Max rewinding diameter

550mm

550mm

550mm

550mm

Printing perimeter

175-320mm

175-320mm

175-320mm

175-320mm

Precision

±0.1mm

±0.1mm

±0.1mm

±0.1mm

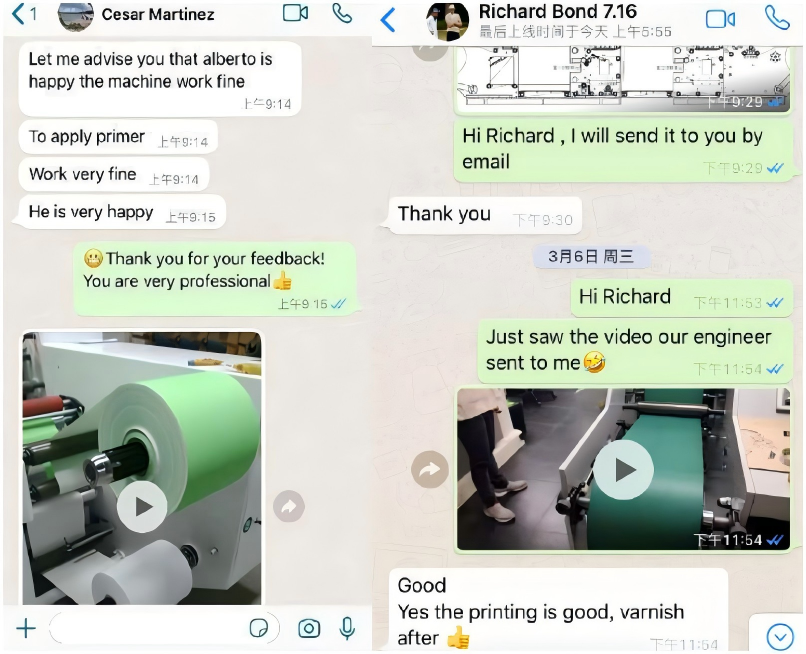

Clients Feedback of Paper Cup Printing Machine



Why Choose Us

We are a professional manufacturer specializing in paper and label converting equipment, as well as printing machines.

We have established partnerships with global companies such as All4Label, Avery, and Arclad Group, along with Greece's largest food paper packaging company. In China, we collaborate with leading enterprises, including Guanhao—one of the country's largest paper product companies—and Fangda, the biggest paper company in China.

Our core business focuses on providing complete solutions for paper and label converting equipment and printing needs, tailored to meet our customers' requirements.

Video of Paper Cup Printing Machine

Get In Touch
If you have any questions about Raloyal Slitter Rewinder & Cutting Machine, feel free to contact us!

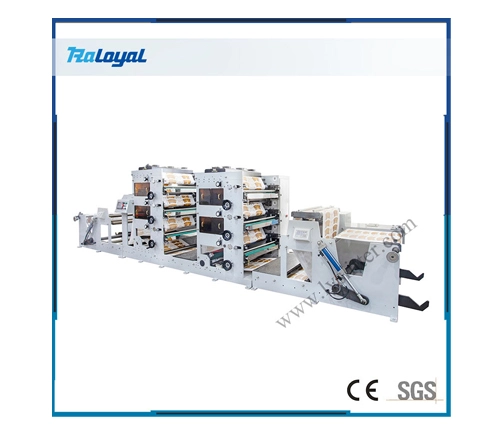

Related Stacked Type Flexo Printing Machine
