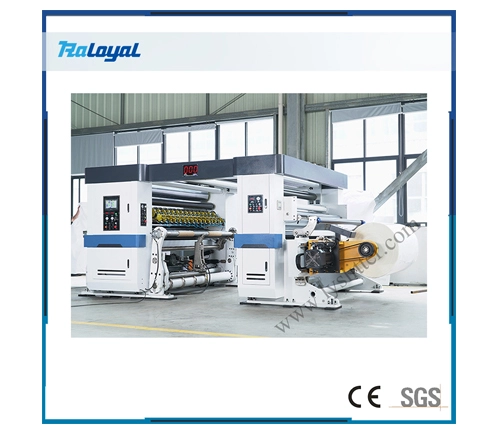

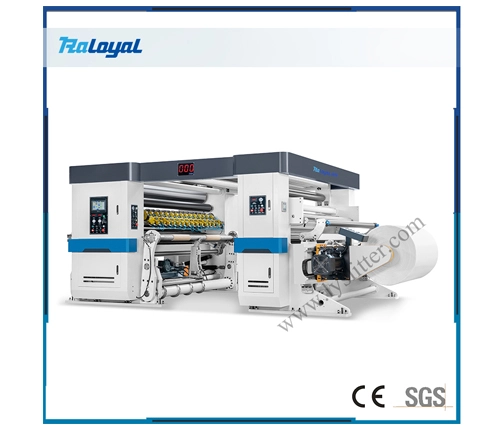

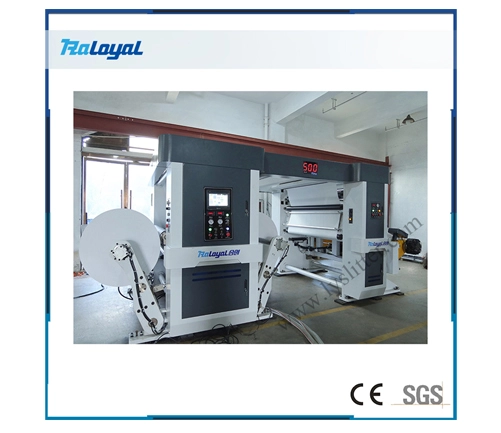

PLUS SERIES High Speed Jumbo Roll Slitting Machine

Name: PLUS SERIES High Speed Jumbo Roll Slitting Machine
Brand: RUIAN LOYAL MACHINERY CO., LTD.

This type high speed slitting machine is our matured innovation and it is also the most suitable machine for high speed and precision demand of the jumbo roller material slitting and rewinding, such as: self-adhesive material ,paper stick, cardboard, laminated material .

Tel:+86 18367750188

Email:ly@lyslitter.com

To get an instant quote Now

Feature Characteristic Application Our Diffirence Parameter Video FAQ Case Share

Feature

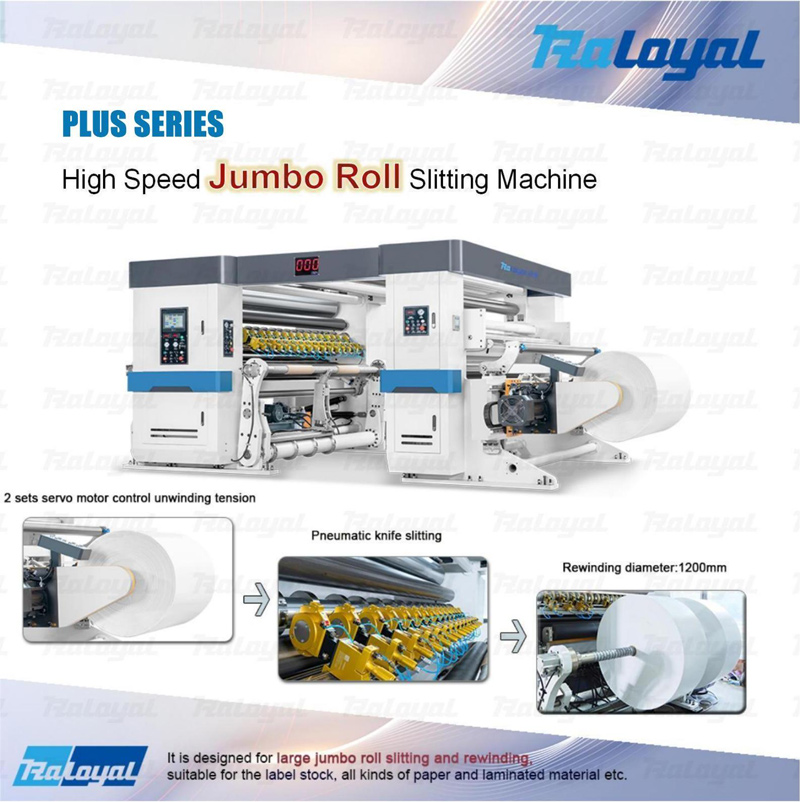

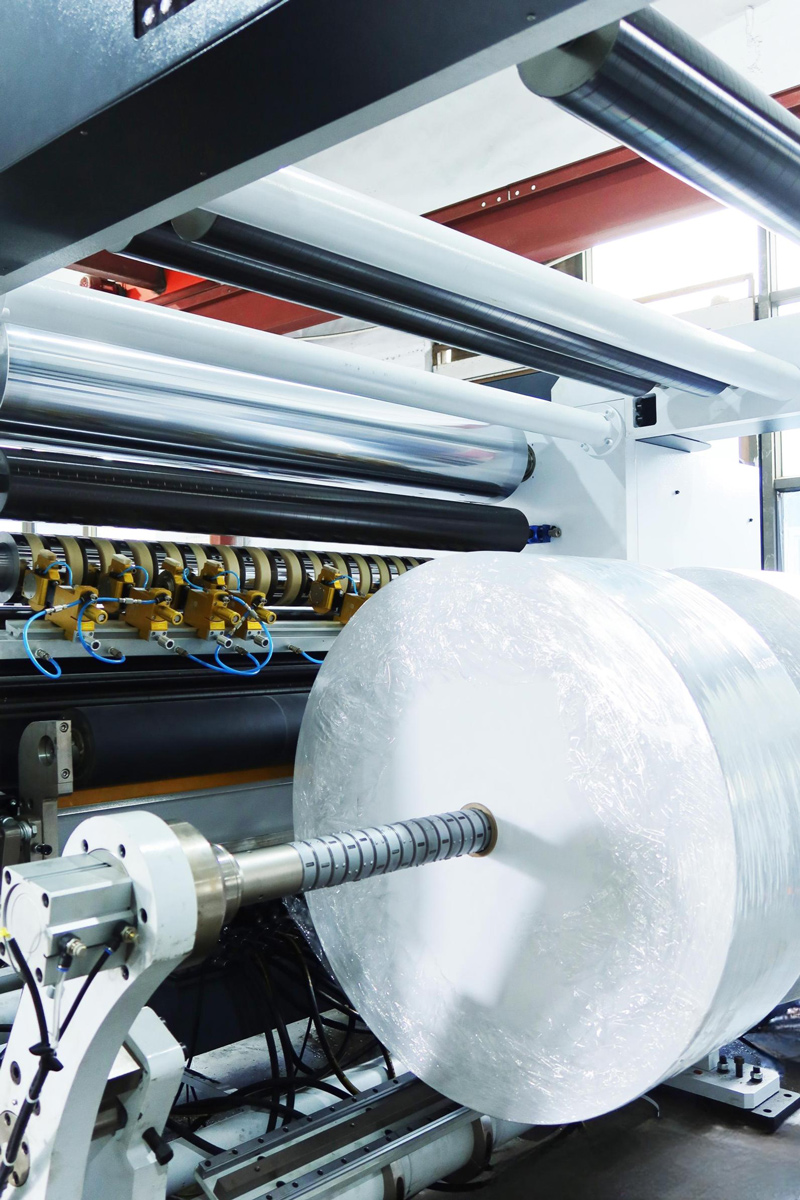

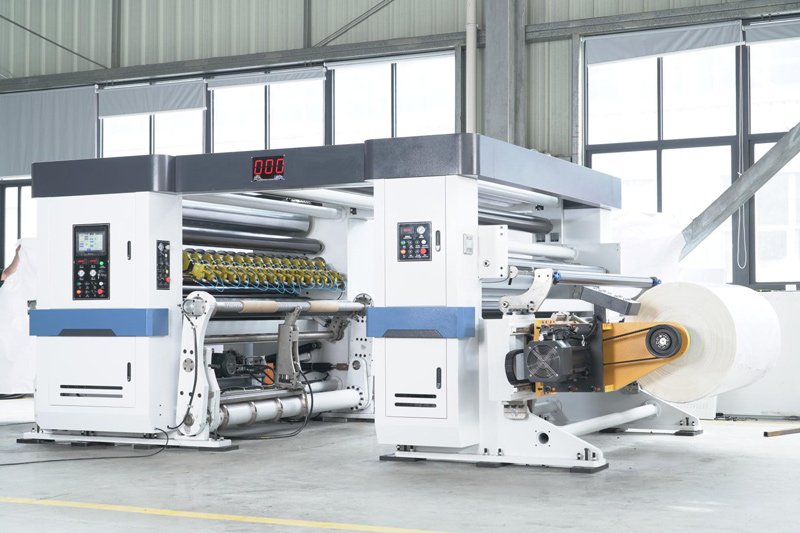

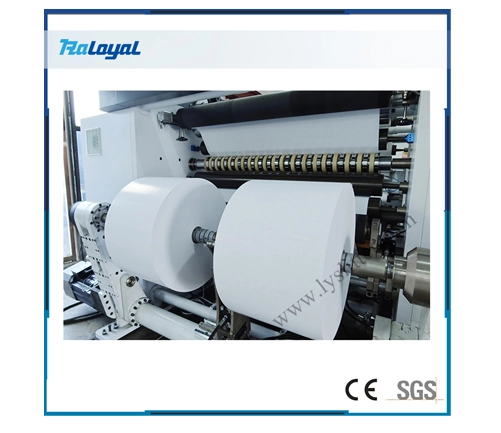

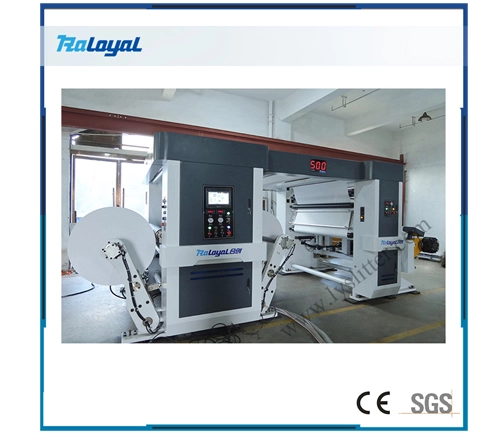

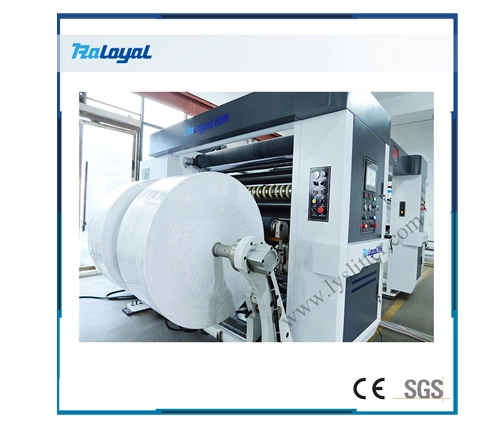

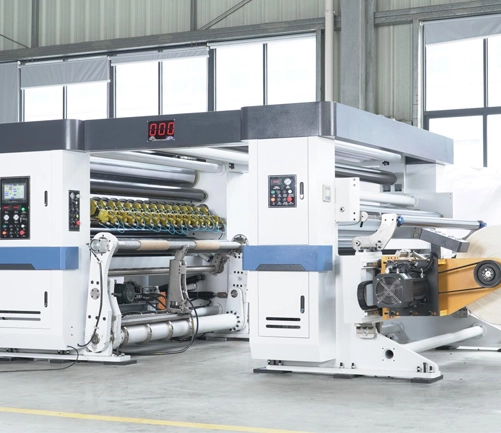

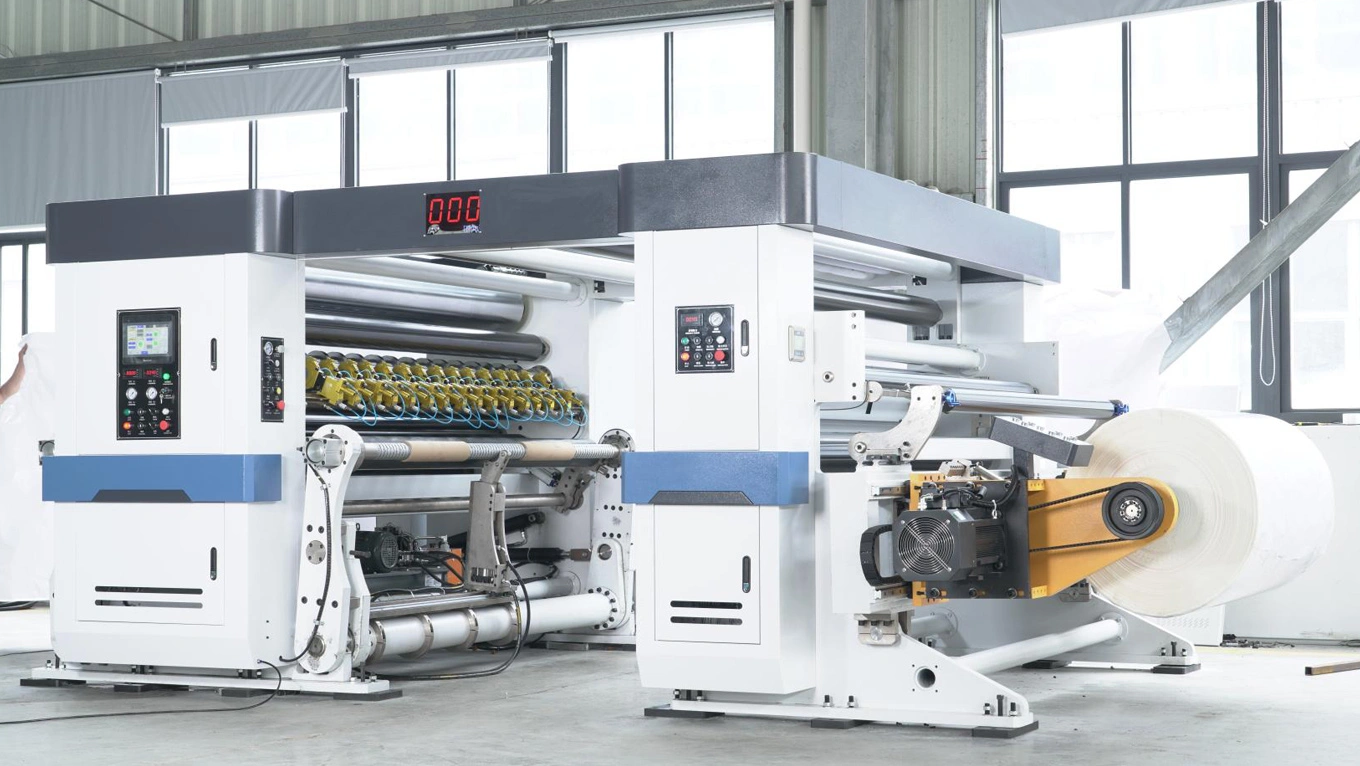

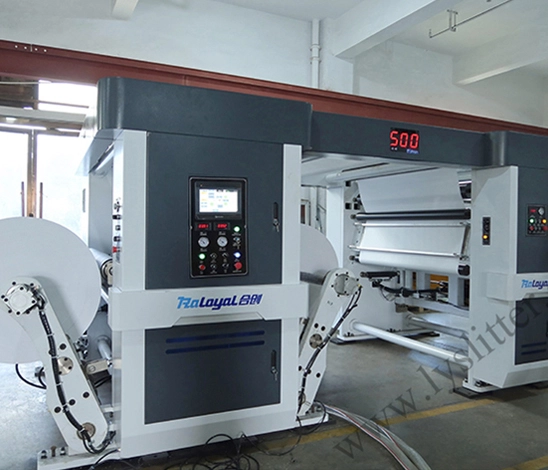

PLUS Series slitter rewinder machine purposely designed for large jumbo roll, for rewinding roll diameter is up to 1200mm. With a very solid unwinding stand and rewinding stand, the slitting speed can reach 600m/min. With the design for very convenient operation , can unload the finished jumbo roll by trolley easily on the ground. It is suitable for slitting and rewinding the label stock, all kinds of paper and laminated material etc.

Characteristic

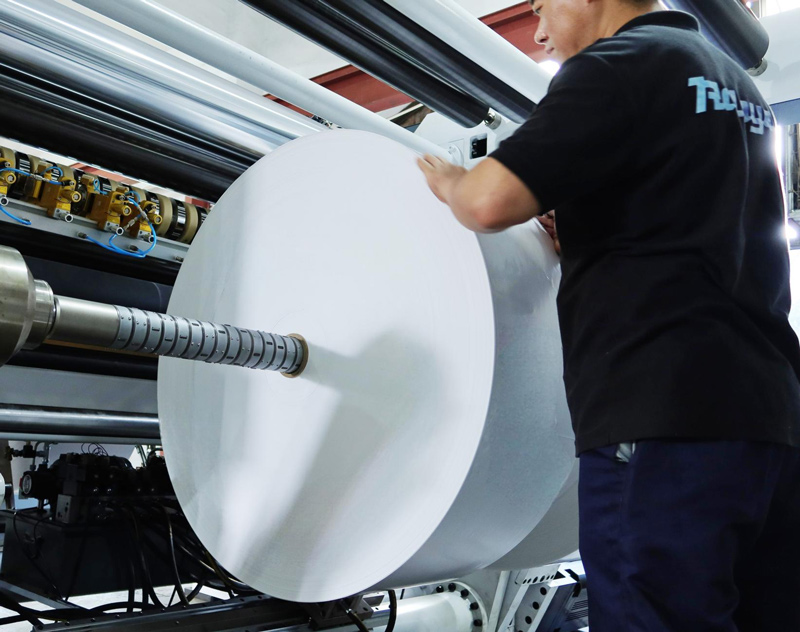

Rewind diameter 1200mm (Other bigger size can be customized)

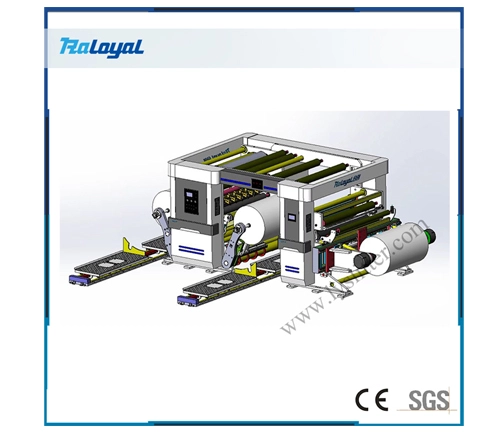

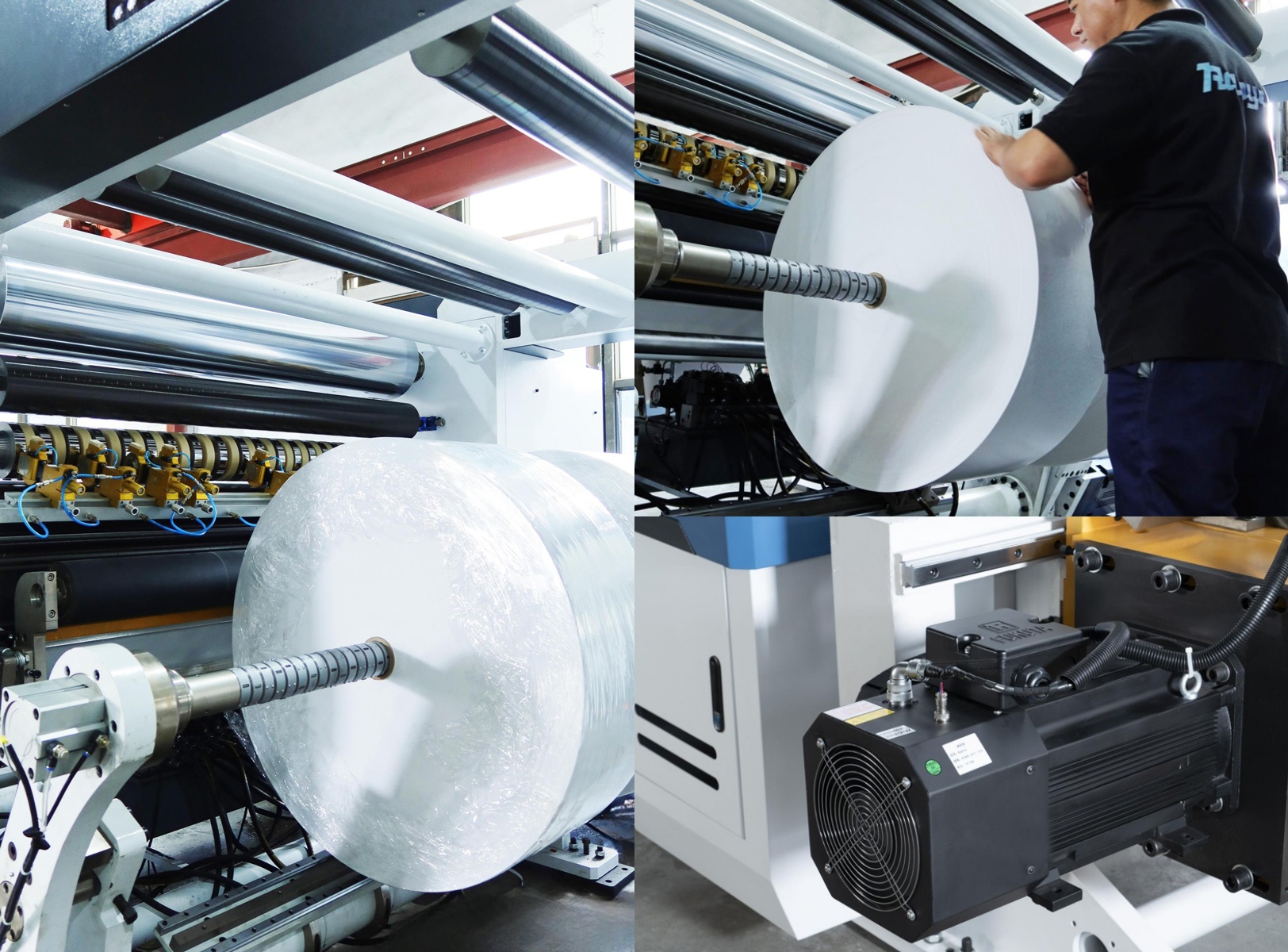

Automatic unloading trolley

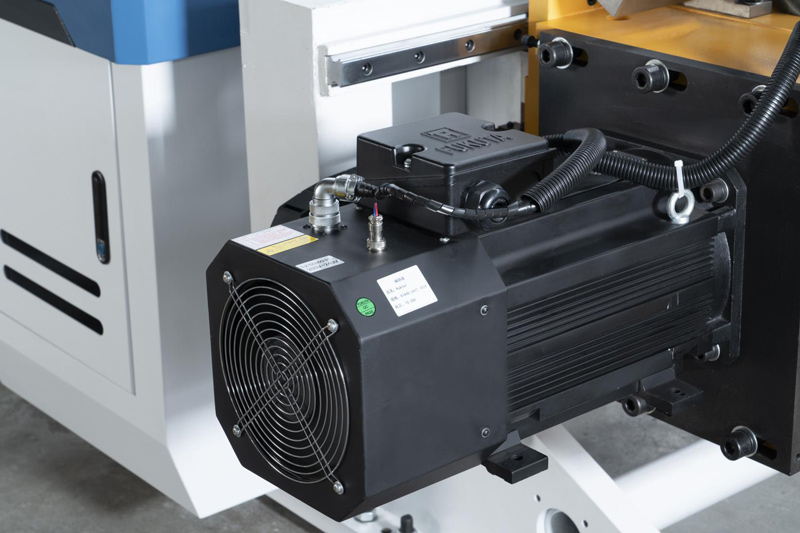

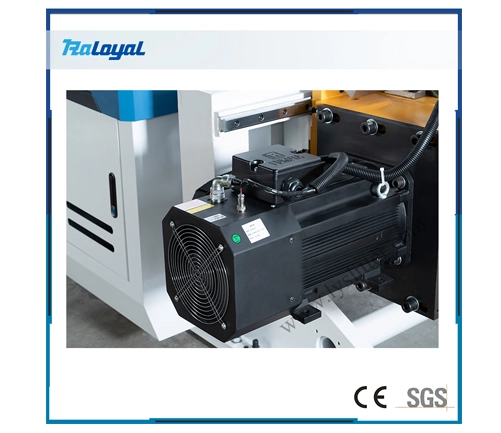

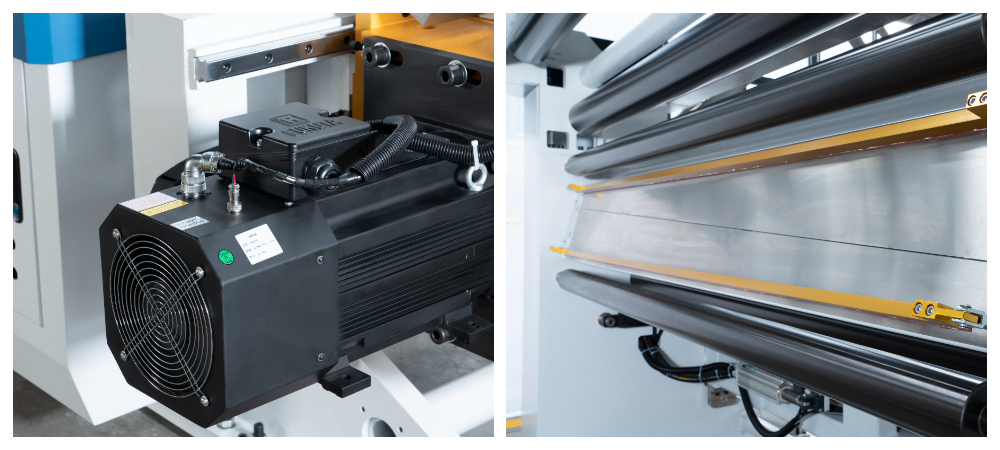

5 sets Big power servo motor adopted

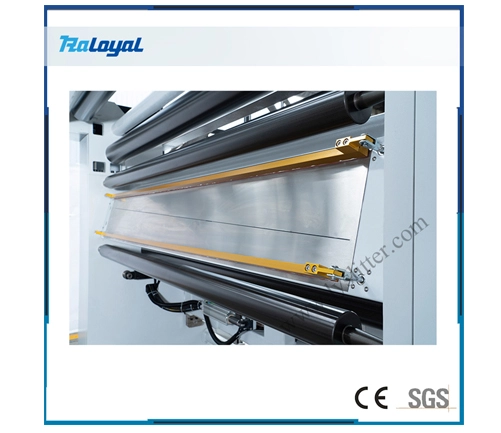

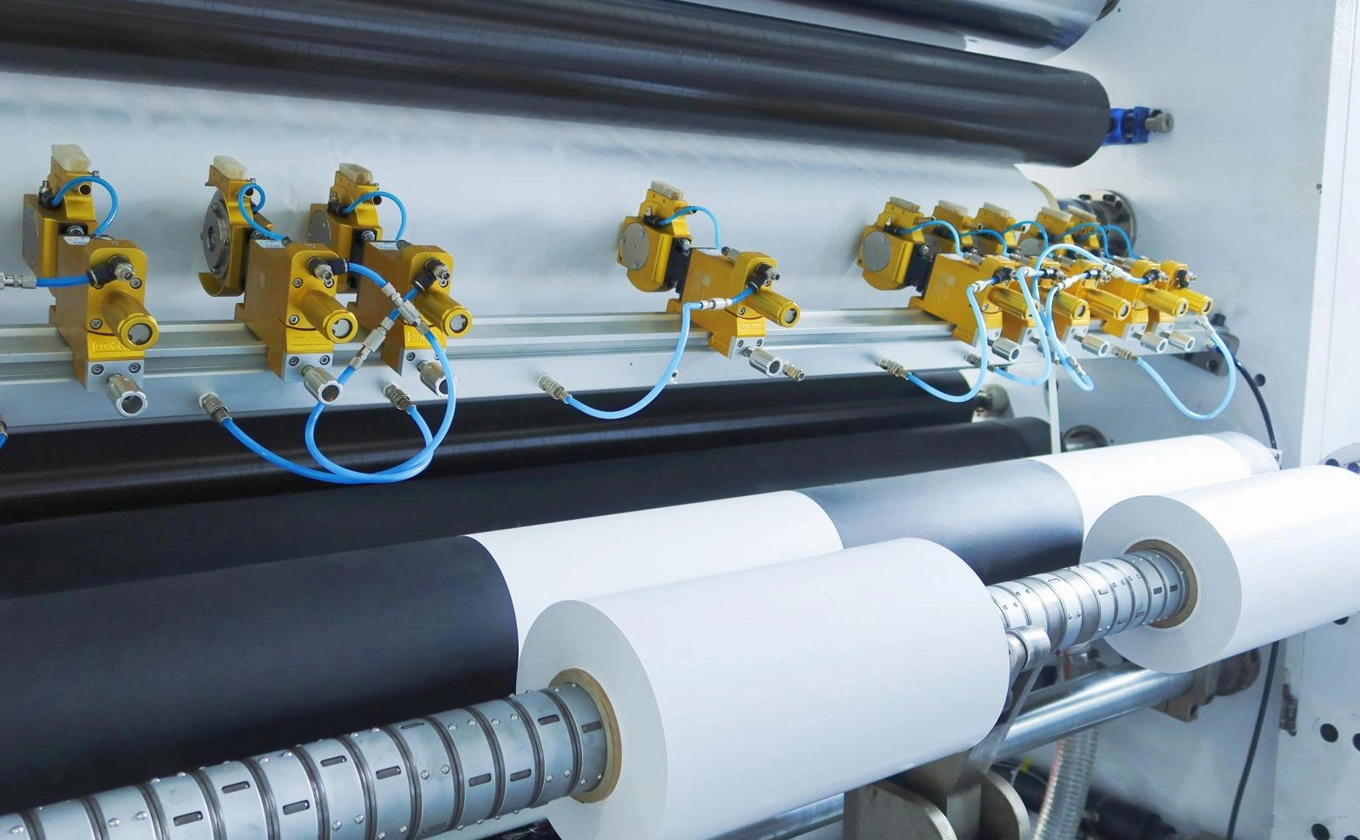

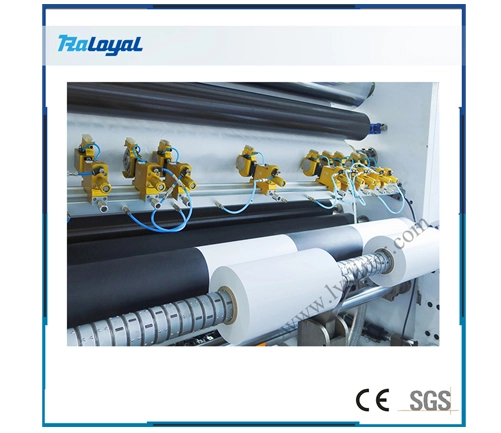

Air knives equipped

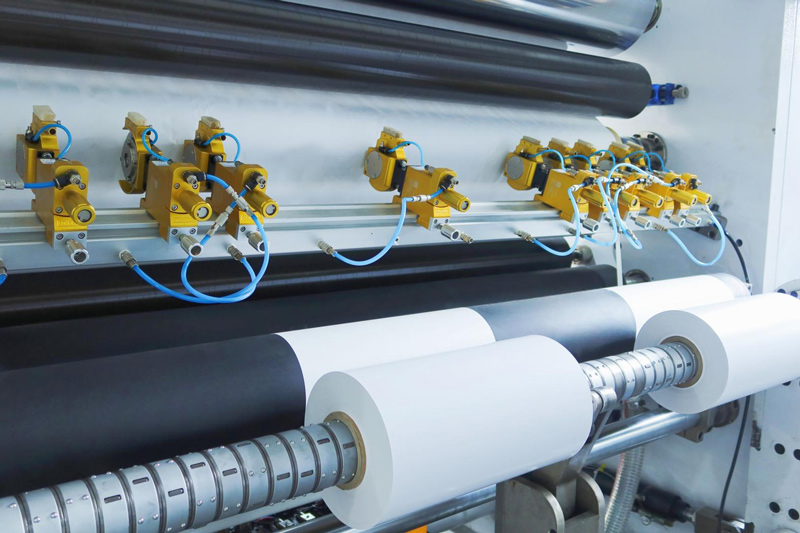

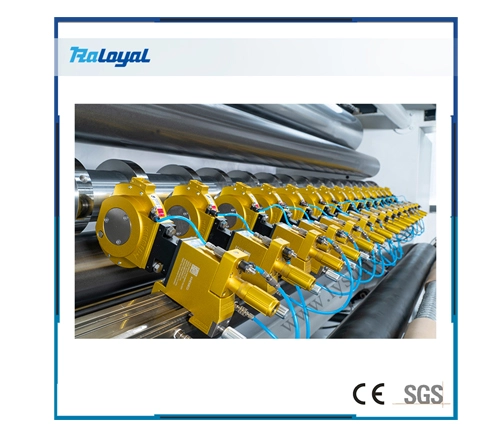

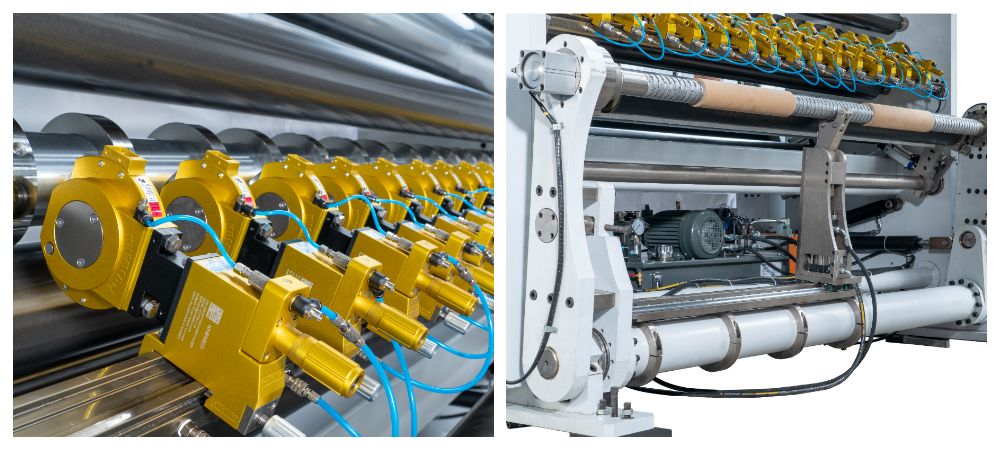

Full-auto blades set as option
Overhead material path

Application

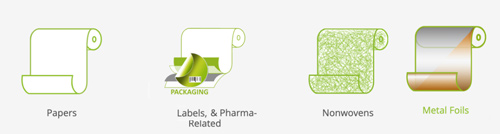

PLUS series slitter is Raloyal another innovation, widely used for the soft flexible packing materials such as PE/PP/PET/BOPP/PVC, Composite membrane and other coiled cylindrical material,etc.

Release Liners (Paper/ Film) and Label Stocks. Our range consists of Aluminum blister for pharmacy products, Aluminium pharma blisters, Release Paper Liners, Release Film Liners, Self Adhesive Paper Label Stocks (Cromo Art, Maplitho, Mirror Coat, Flourocent paper,Thermal Transfer, Aluminium foil paper( golden and silverl ), pvc film label stocks, vinyl film label stocks, polyester film label stocks, Self Adhesive Film Label Stocks (Polyster Film (metalized/Clear), PVC Film(Color/ Transparent), Vinyls(Colour/Transparent) and Specialty Adhesive Tapes / Label stocks, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, etc.

Application industry:

OurPLUS series slitters are widely used in label, paper packing, printing, medical, electric and new energy, etc. industry.

Our Diffirence

PLUS serious is our latest matured innovation for 1200mm diameter rewinding, own the excellent performance:

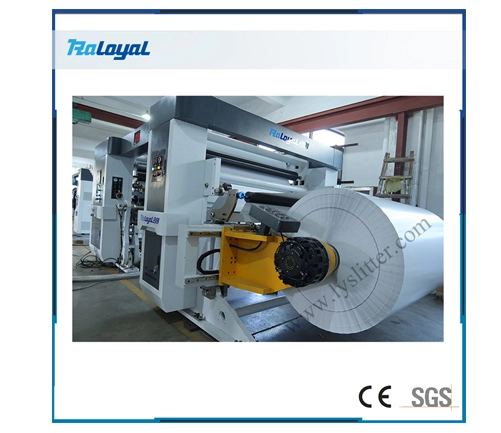

Automatic shaft-less loading for jumbo roll.
Loading the roll from the floor / lifting table (lift).
1set additional servo motor control unwinding tension
Auto-centering of the roll on unwinding.
Ultrasonic web edge sensor – (E+L most preferable).
Dancing roller with tension control system.
big power servo motor control the unwinding tension.
Overhead material path to prevent the glue dripping.
Machine body processing by CNC, ensure the whole machine precision and stability.
Solve the problem of snake shape of finished product surface.

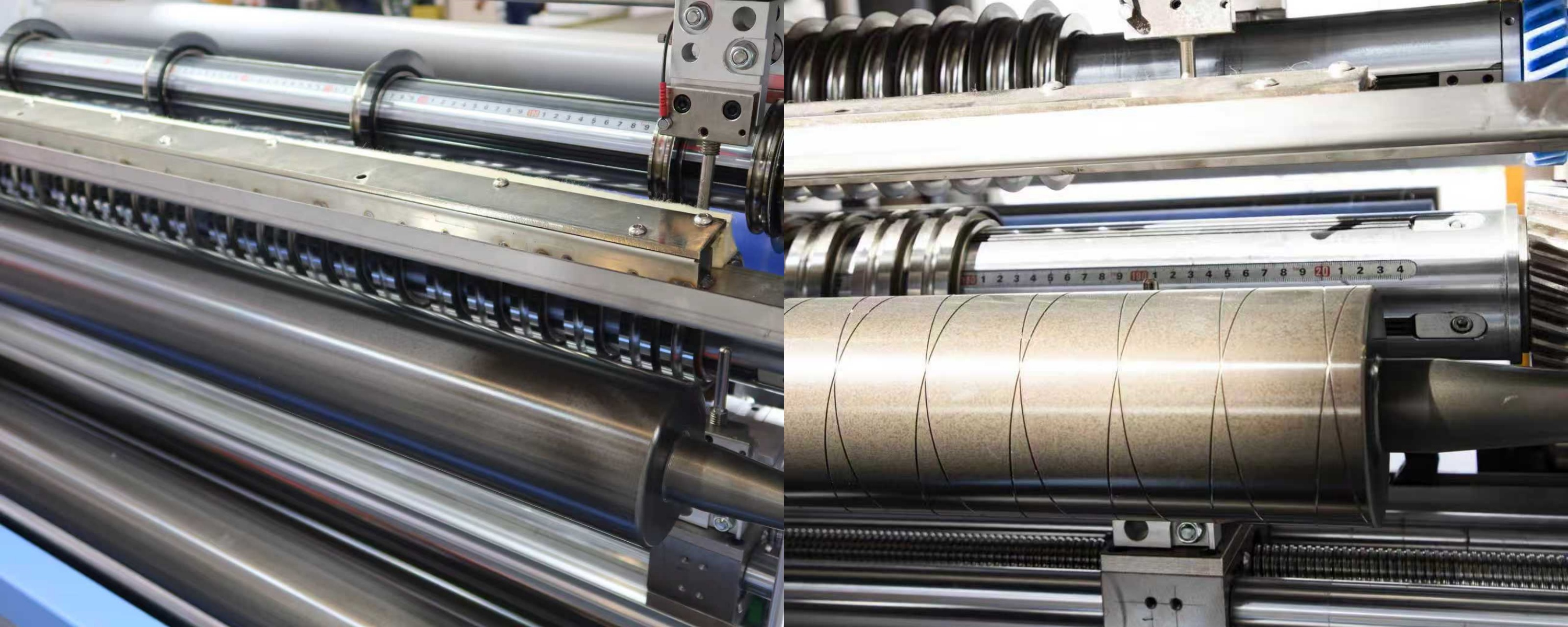

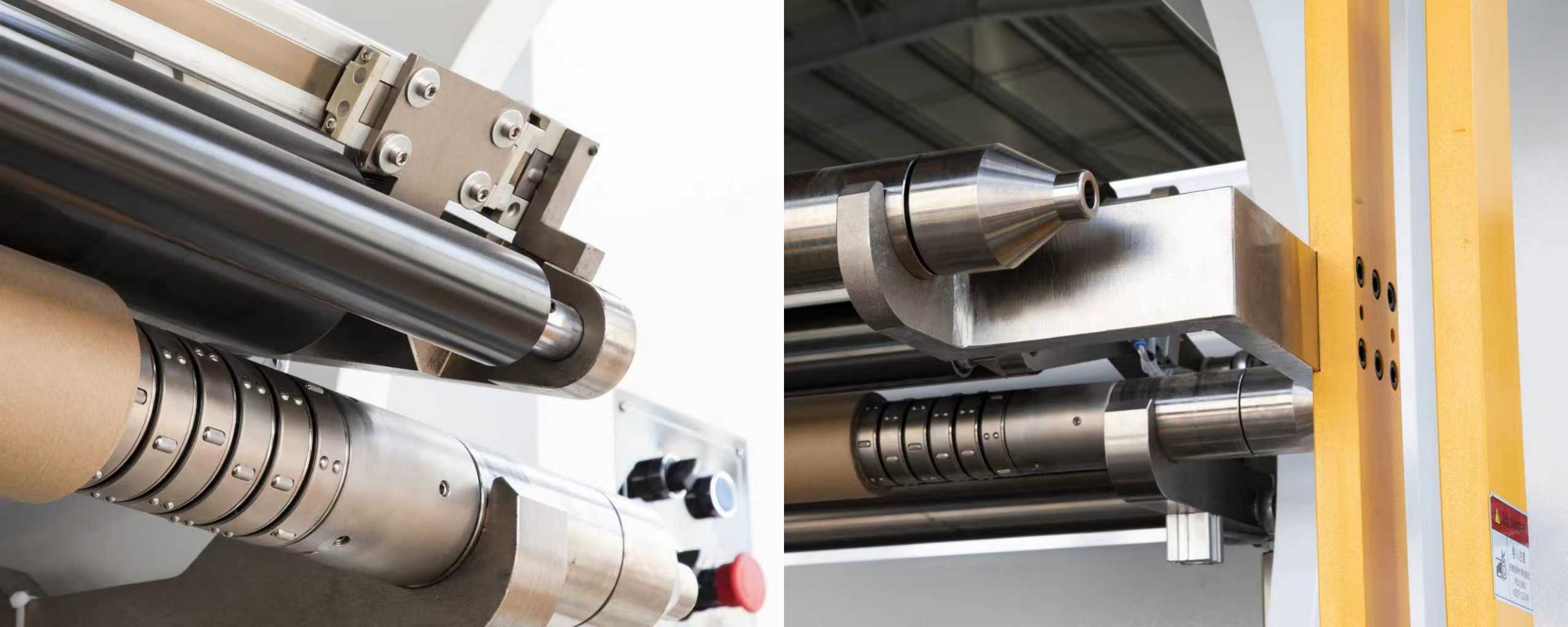

Double-bead duplex friction shaft adopted.
Automatic tension control with pressure roll.
Diameter sensor.
Trim unit, air suction device.

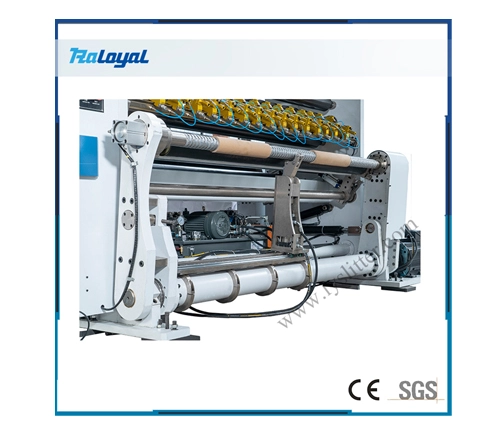

Rewinding hydraulic induction automatic rise and fall.

Parameter

1	Machine model	PLUS PLUS
2	Max Slitting speed	600m/min
3	Max Unwinding width	1300mm/1600mm/2200mm
4	Min Slitting width	70mm
5	Max. Unwinding weight	3000-5000KG
6	Web guide	Germany E+L
7	Automatic unloading trolley	Included
8	Power supply	380V, 3phases, 50hz
9	Machine precision	±0.03mm

Video

FAQ

1: Can it rewind on 6 inches core friction shaft?

Yes, it can.

2: Is this machine with automatic unload?

Yes. Exactly.

3: Autounloading tray included?

Yes.

4: How about the machine installation and operation when. Machine delivery to our factory?

Machine as usual is integrated and we do not dismantle before delivery.

So just connect the power cable and air pipe is ok.

For the operation, we take instruction video for all customers before delivery to guide you how to operate, and provide the instruction file.

Also, we provide service: our engineer and technician open live training until you learned it and run it well.

5: How about the guarantee?

Ø 12 months guarantee, life-long time technic maintenance and support. 24 hours feedback when receive the client writing militance proposal.

Ø Any part damage caused by non-human factors within the warranty period can be replaced for free, excluding machine consumable parts. Maintenance of part damage caused by violation operation or mis-operation of operators will be charged with costs of parts.

Ø The price of spare parts exceeding the warranty period shall be the lowest ex-factory price of the seller.

Ø For extra accessories beyond the standard configuration of contractual machine, the price shall be the lowest ex-factory price of the seller.

Any time you have question about slitter, we are always here to provide service.

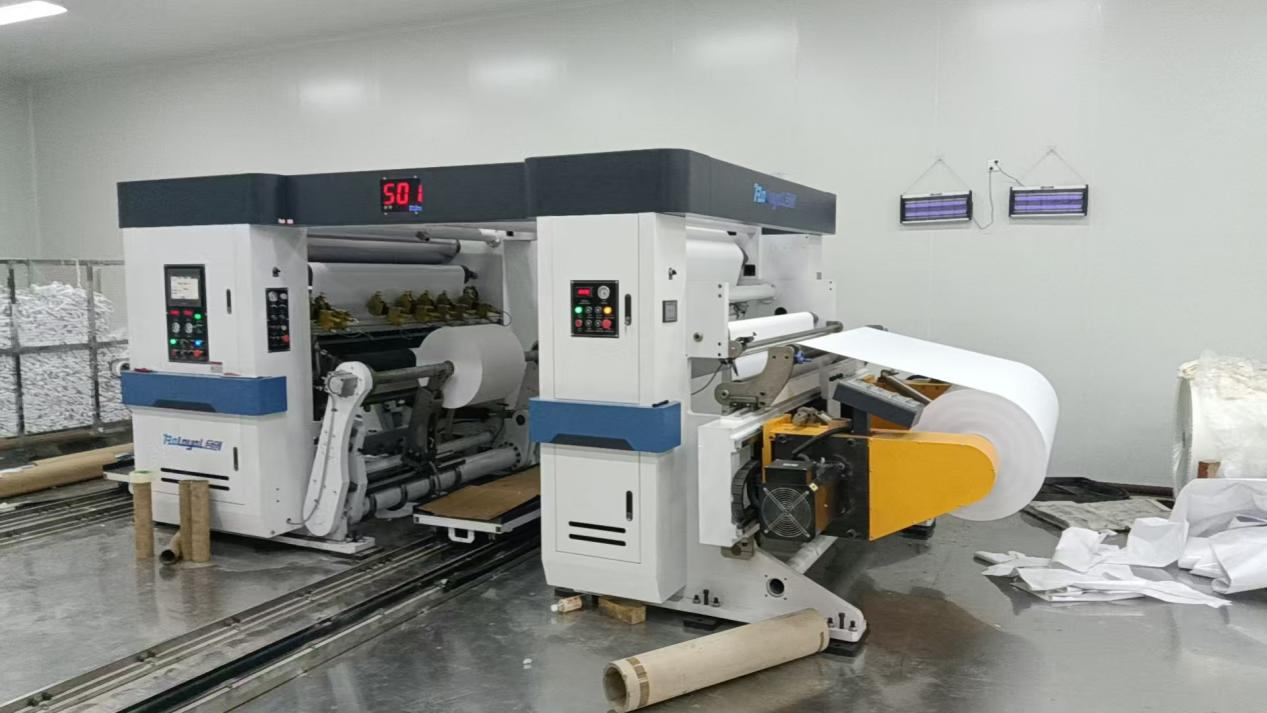

Case Share

Most feedbacks we received from our customers is “Raloyal slitting machine is the most cost-efficient type slitter machine in the market”.
Yes, exactly. Thanks for our regular customers frank and sincere praise for Raloyal.
Raloyal understand it is not easy for all the enterprise to run a company under the pandemic and also the war make the market dim. Raloyal is a company who are willing to and have did that minus their profit without compromising on quality to support the customers to overcome the current hard situation .Raloyal insist their mission all the time: Providing the sustainable, professional solution to the global customer with the most competitive price, excellent service, and lifetime support.

Raloyal ,your loyal partner.
