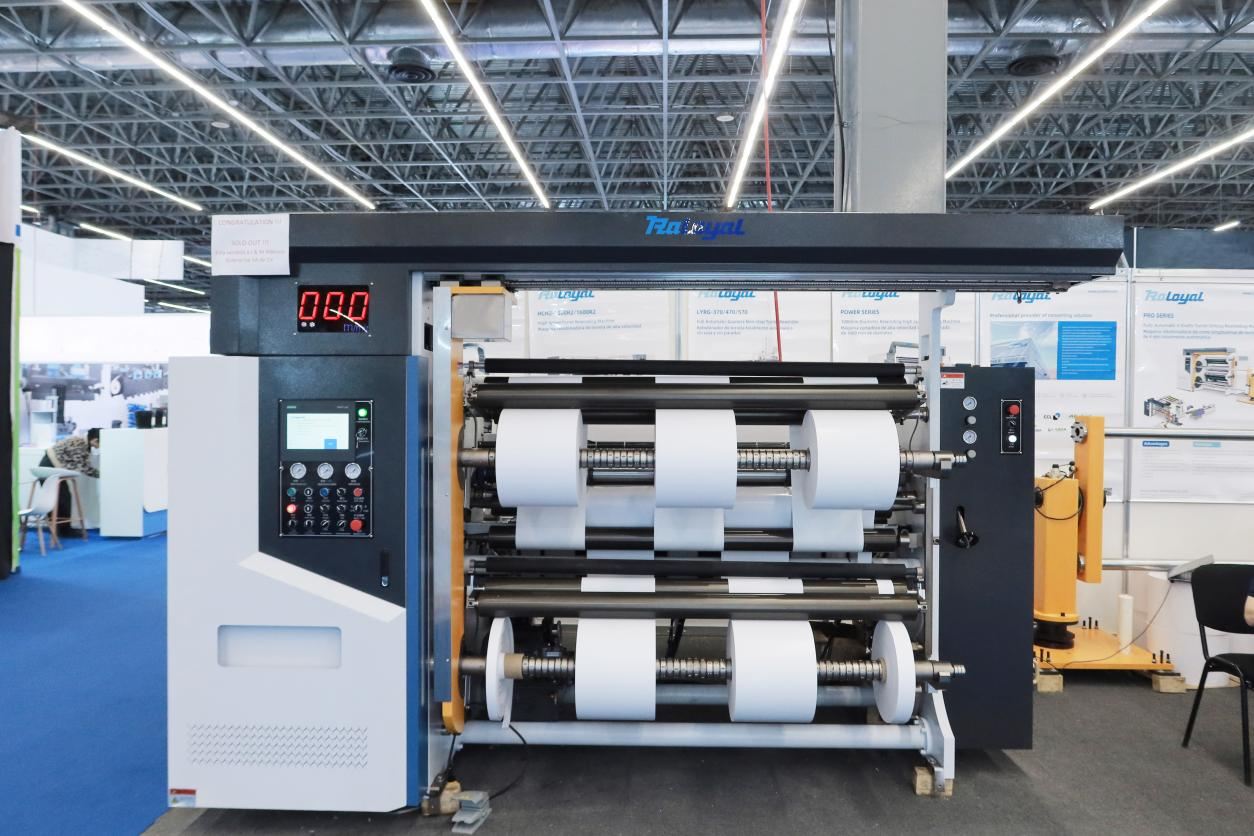

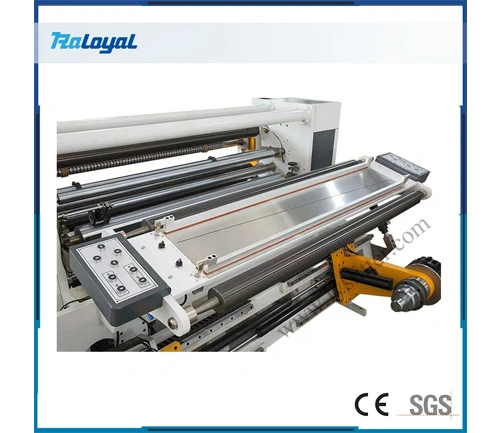

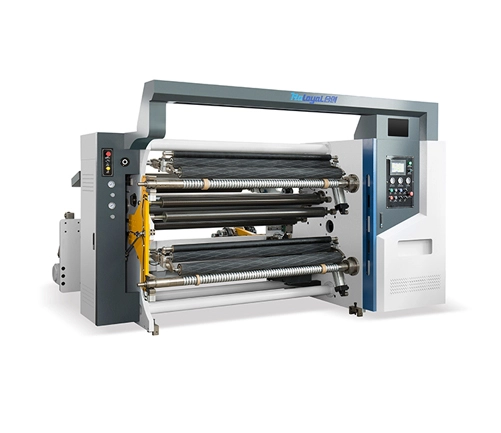

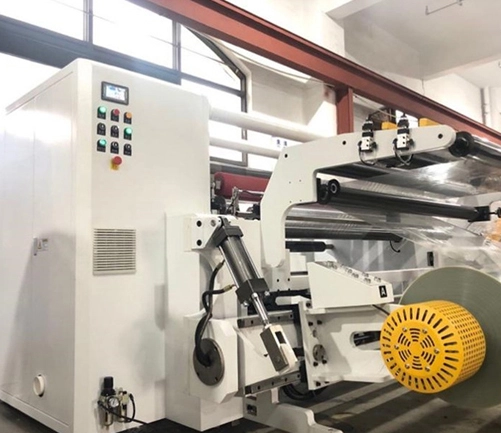

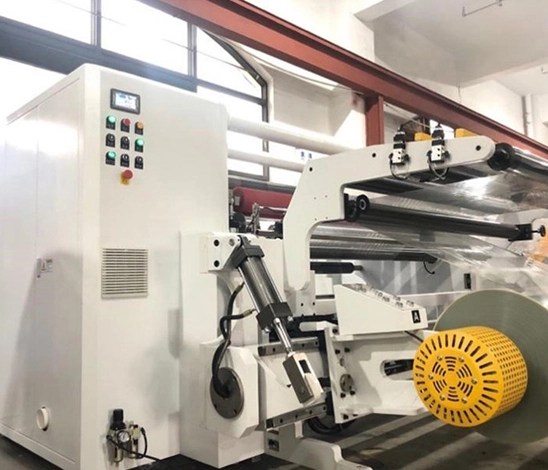

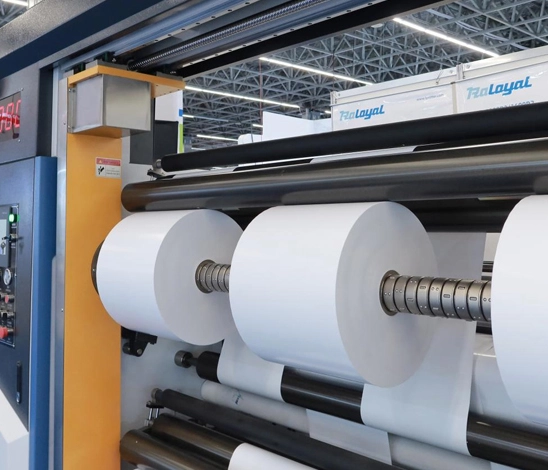

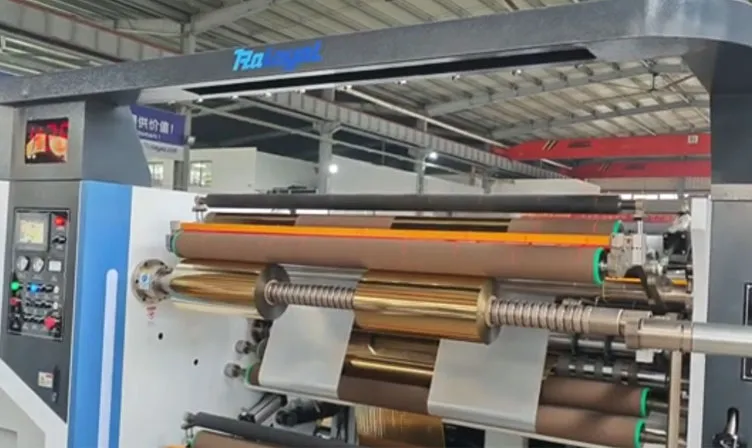

Top A series high speed slitting machine is our most popular and hot selling machine in the market, which can slit both label sticker, paper and flexible film in optical and electrical industry with the most competitive price. Automatic loading.
TOP A SERIES High Speed Slitting Machine pressure sensitive adhesive slitting machine is our most popular machine, which can both used for label paper such as Silicon Coated Paper, Metalized Paper, Self-adhesive Paper and flexible, such as PET/BOPP/PE etc protector film ,optical film, release film, laminated film, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard etc slitting and rewinding.
Uncoated papers & boards
Inkjet resin coated inkjet paper
Inkjet paper
Polyester pet film

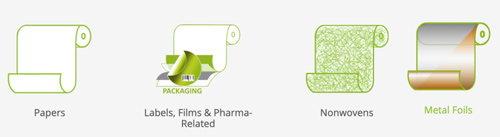

Application industry:

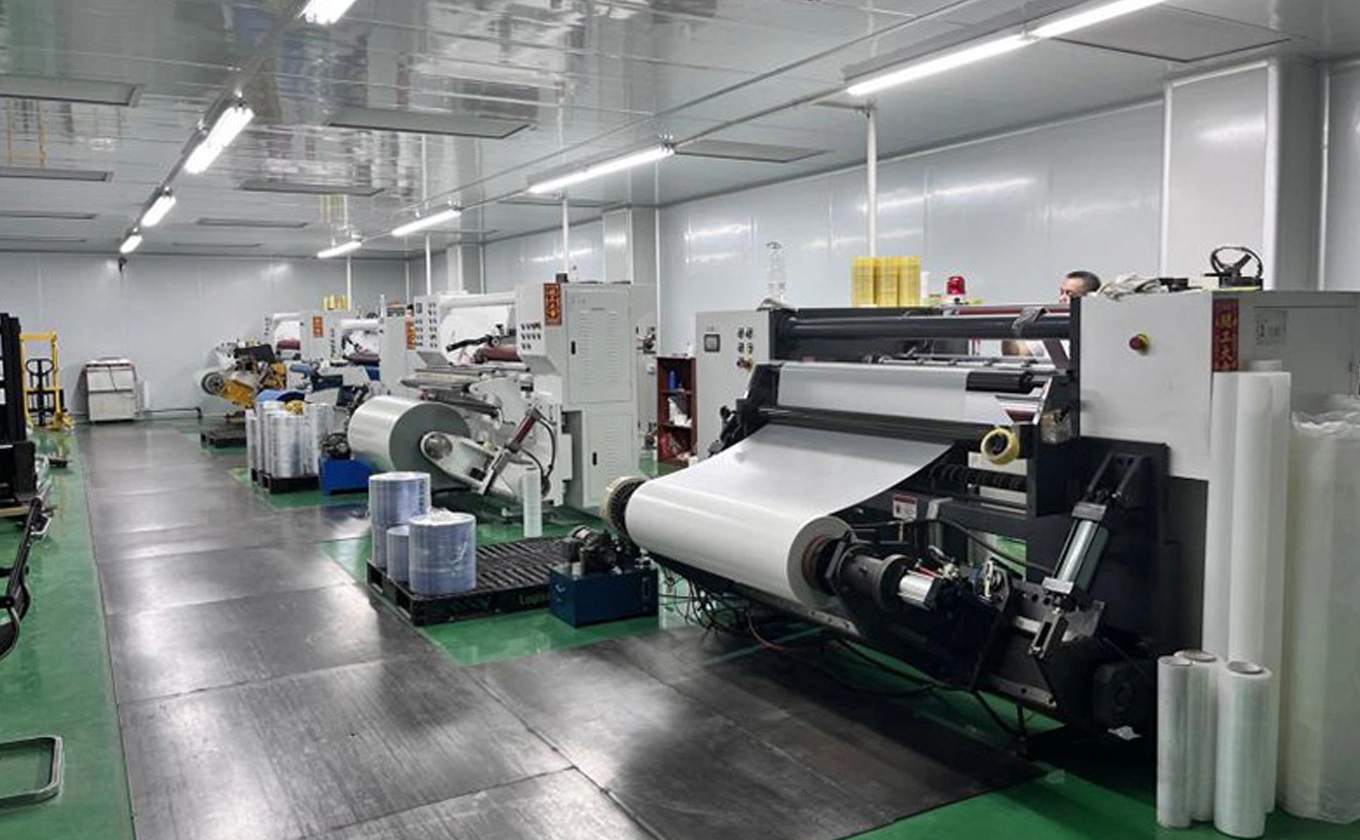

TOP A SERIES High Speed Slitting Machines are widely used in electricity, label, packing, medical, optical, aerospace etc. industry.

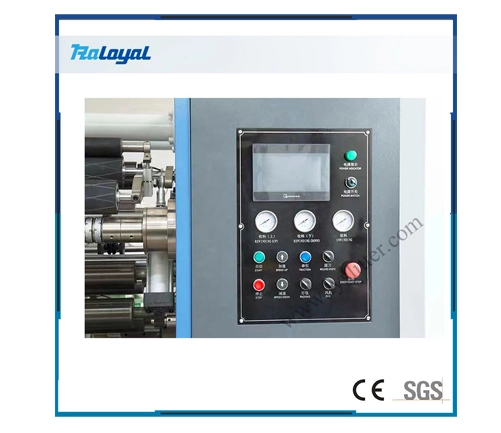

SIEMENS PLC control, Touch screen on human machine interface with high resolution colors and easy operator controls.
Heavy machine body processed by CNC: ensure machine running in high speed stably and long time lifetime.

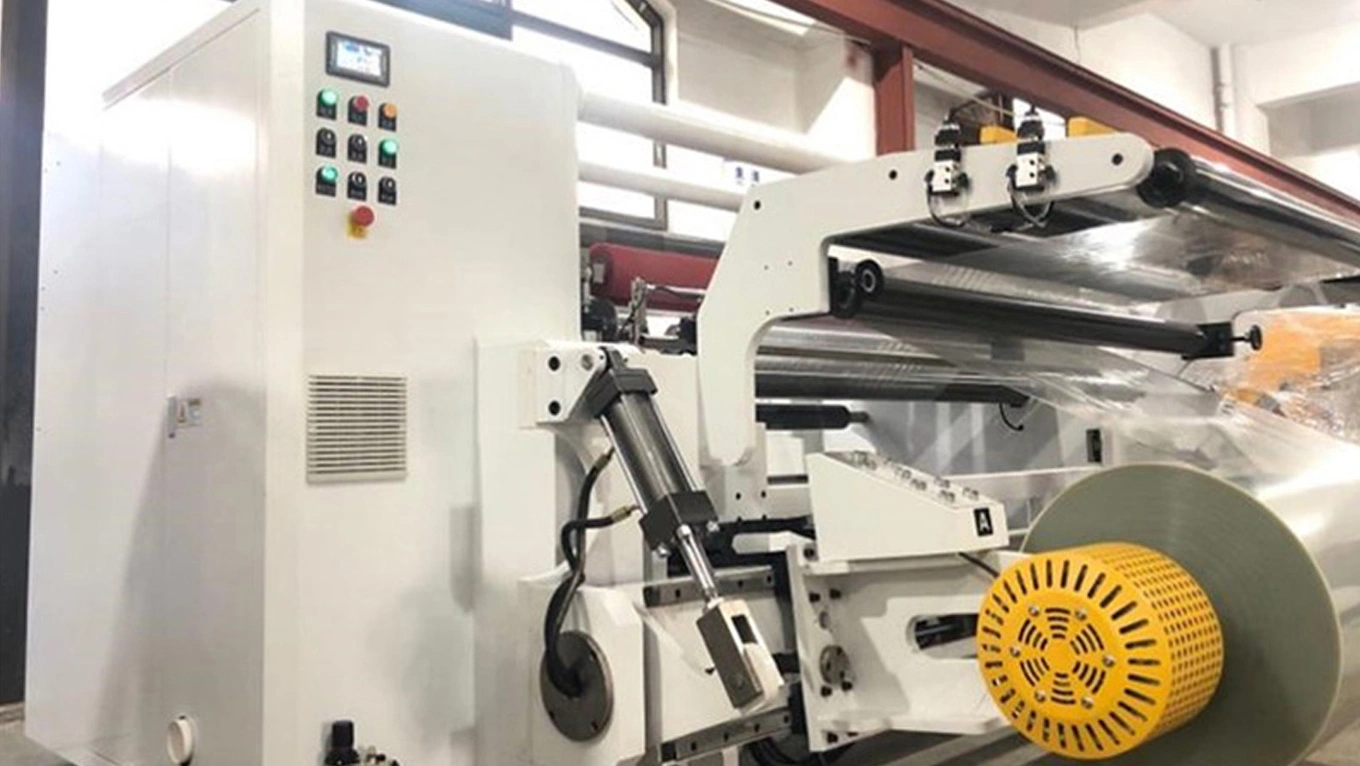

Automatic shaftless adopted to improve the efficiency and assure the operator safety.

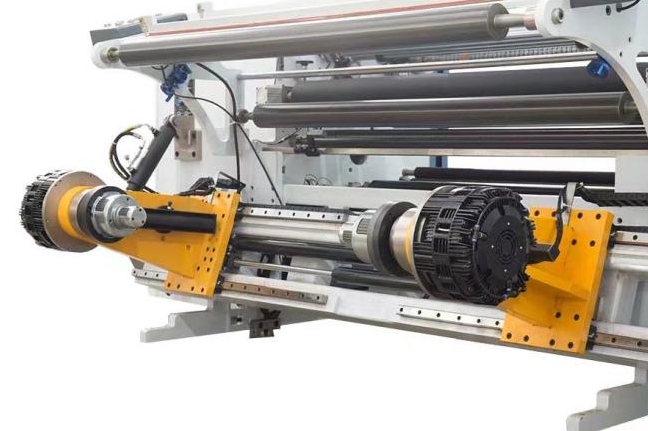

Shaftless loading control by hydraulic system, more powerful and strength than pneumatic cylinder control.
Main motor and rewinder motor adopted servo motor + JAPAN YASKAWA inverter control.

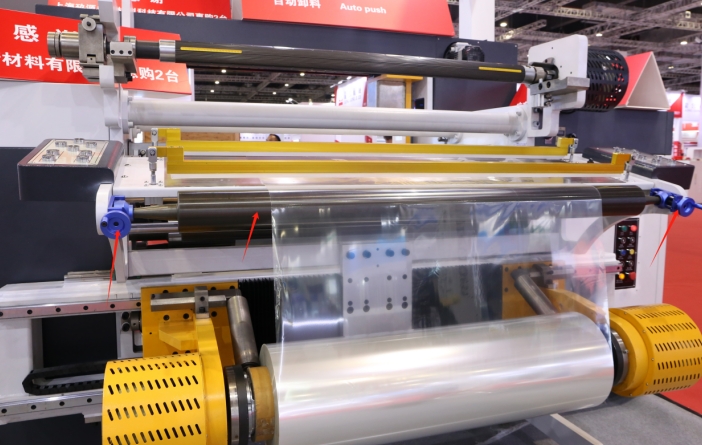

Unwinding tension and rewinding tension controlled by SIMENS PLC and JAPAN SMC proportional valves, automatic tension control, keep tension stable.

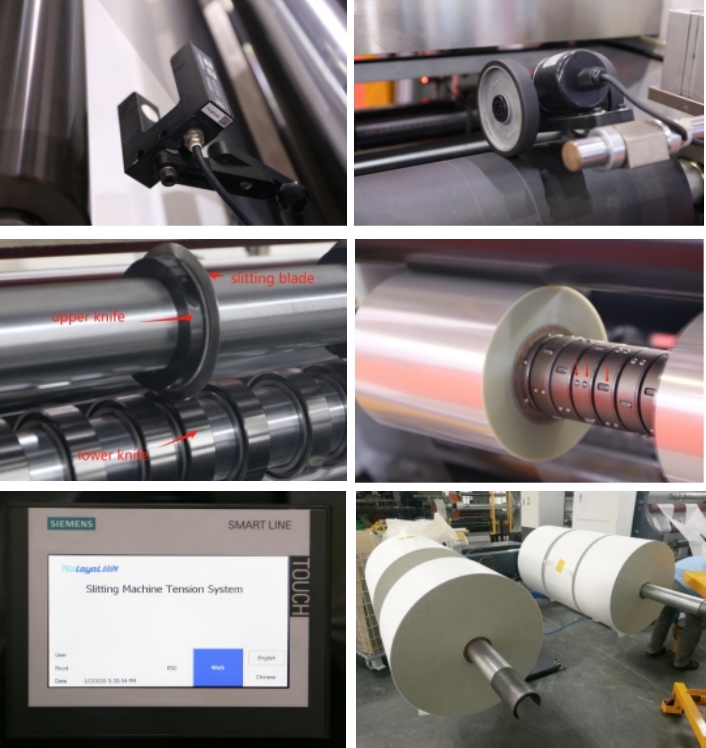

Pausource web guide system, adopted ultrasonic inspection, servo motor drive, ensure the material running stable and precision of align.

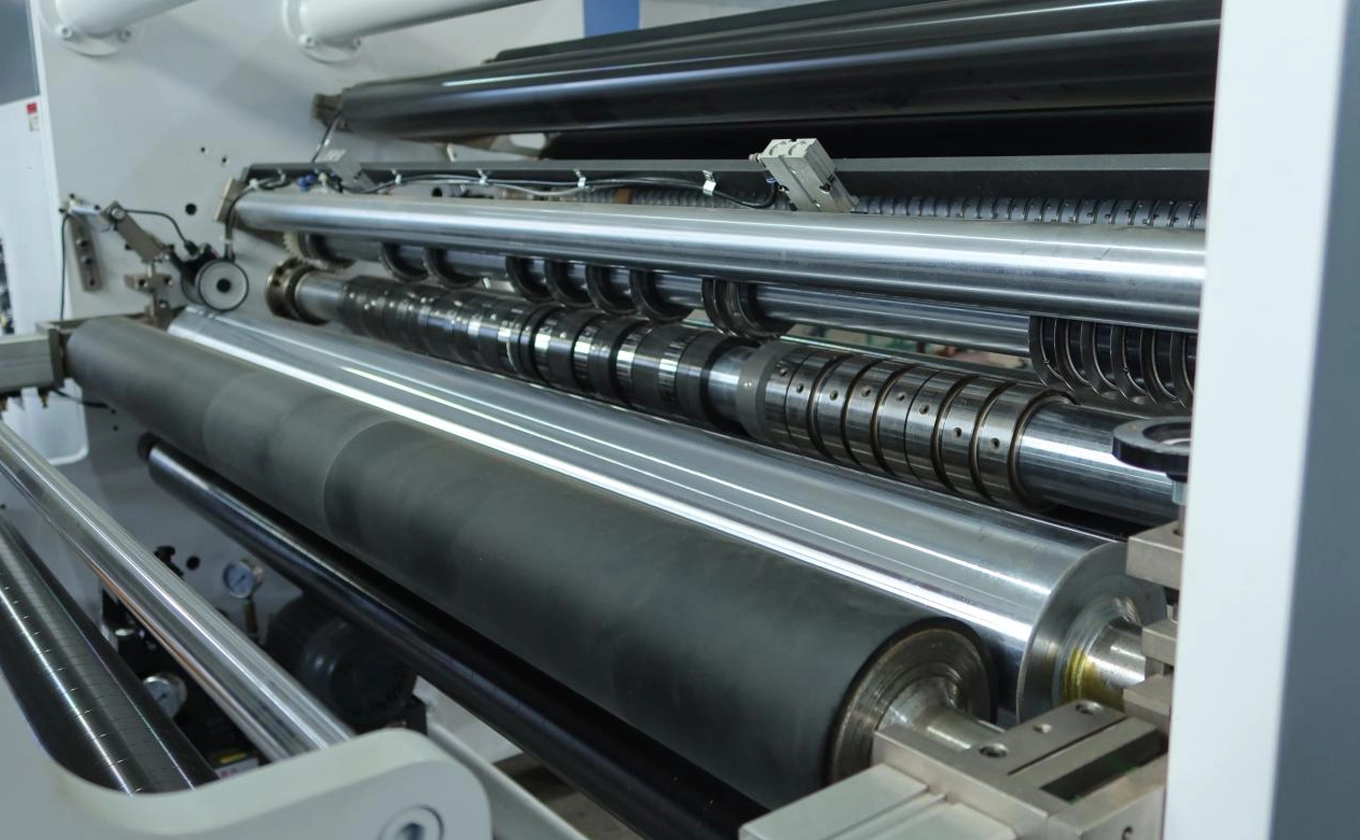

High quality KOREAN circular blade adopted, SKH-2 material ensure the lifetime and also the slitting accuracy.
Automatic counter wheel KOREA AUTONIC adopted, ensure higher precision for meter counting.
Synchronous belt transmission, low noise, running more steady.
Outside splicing table, which is more convenient for worker to operate and increase the productivity.
All the guide roll are processed by dynamic balance treatment, which make sure the machine can run in high speed stably.
Rubber roller adopted polyurethane material, more wear-resisting and own longer lifetime.
Aluminum roller adopted harden oxidation treatment, have the characteristic of high hardness and surface is more smooth, anti-scratch.

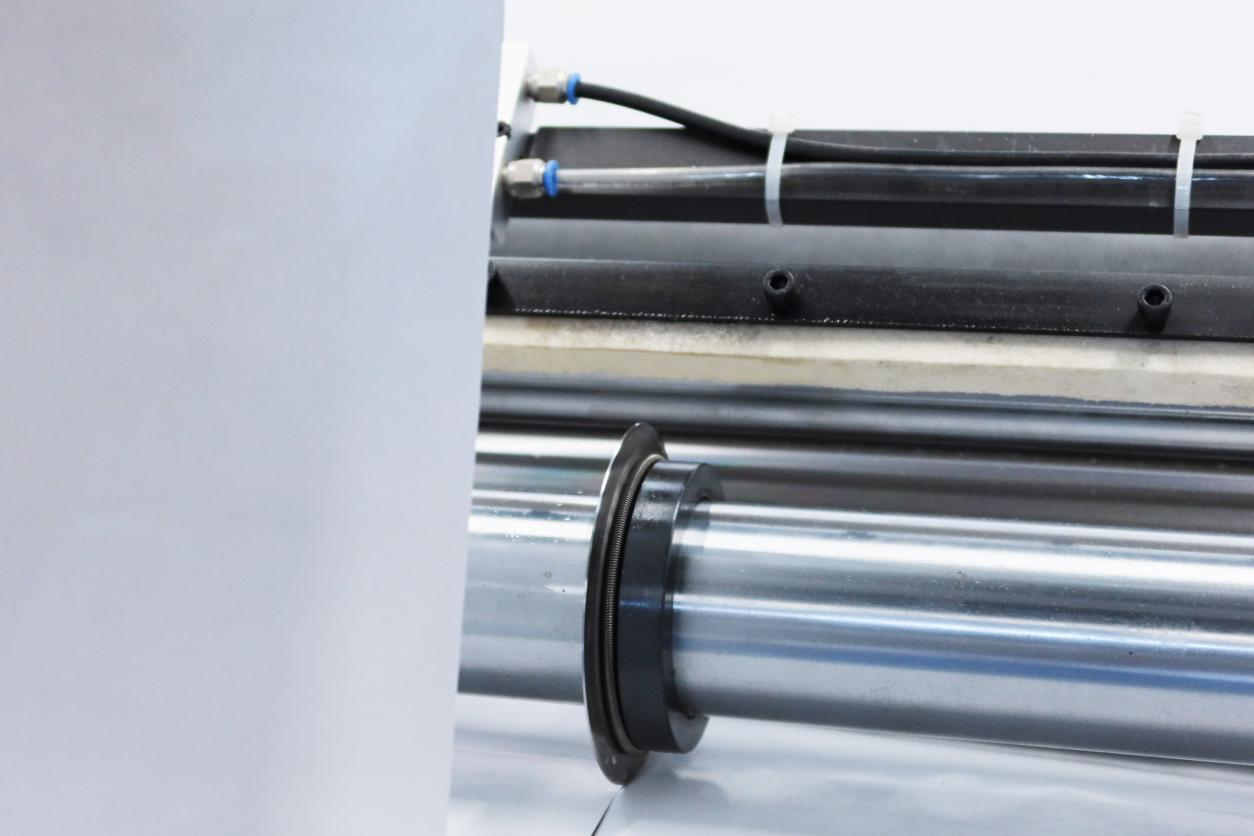

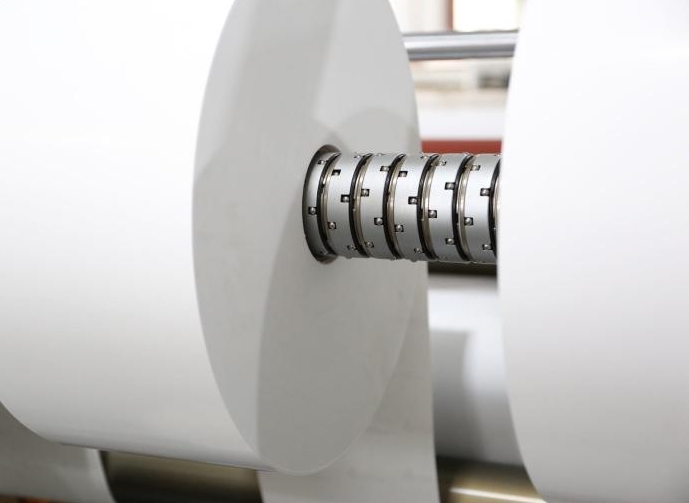

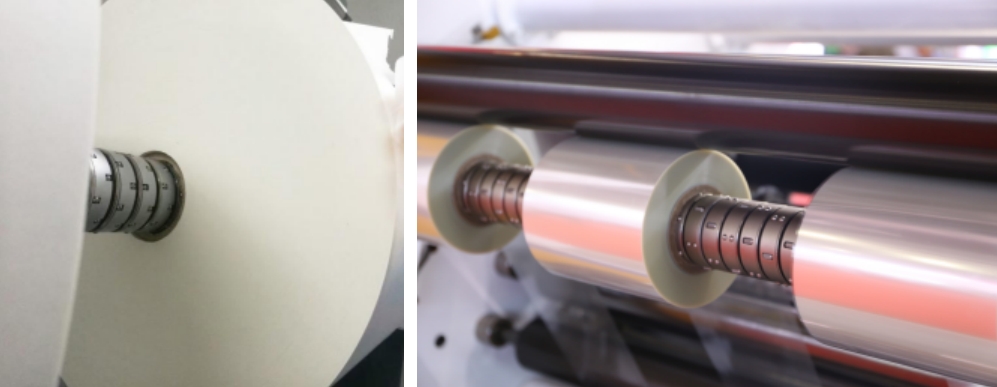

Friction shaft, each unit's tension can be compensated automatically and ensure the slitting effect is more smooth and even.
Auto blade set as option.
Auto push can be selected as option.
Our Difference
Technical parameter | |||
1 | Machine model | HCH2-1300 | HCH2-1600 |
2 | Slitting effective width | 30-1300mm | 30-1600mm |
3 | Max Slitting speed | 300m/min | 300m/min |
4 | Unwinding diameter | Φ1200mm (shaftless loading ) | Φ1200mm (shaftless loading ) |
5 | Rewinding diameter | 2*φ600mm | 2*φ600mm |
6 | Main motor | 4kw | 4kw |
7 | Rewinding motor power | 11KW | 11KW |
8 | Total power | 16kw | 16kw |
9 | Precision | ±0.03mm | ±0.03mm |
10 | Machine weight | 3500kg | 4000kg |
11 | Installation dimension | 2850*3000*1750mm | 3250*3000*1750mm |
25mm.

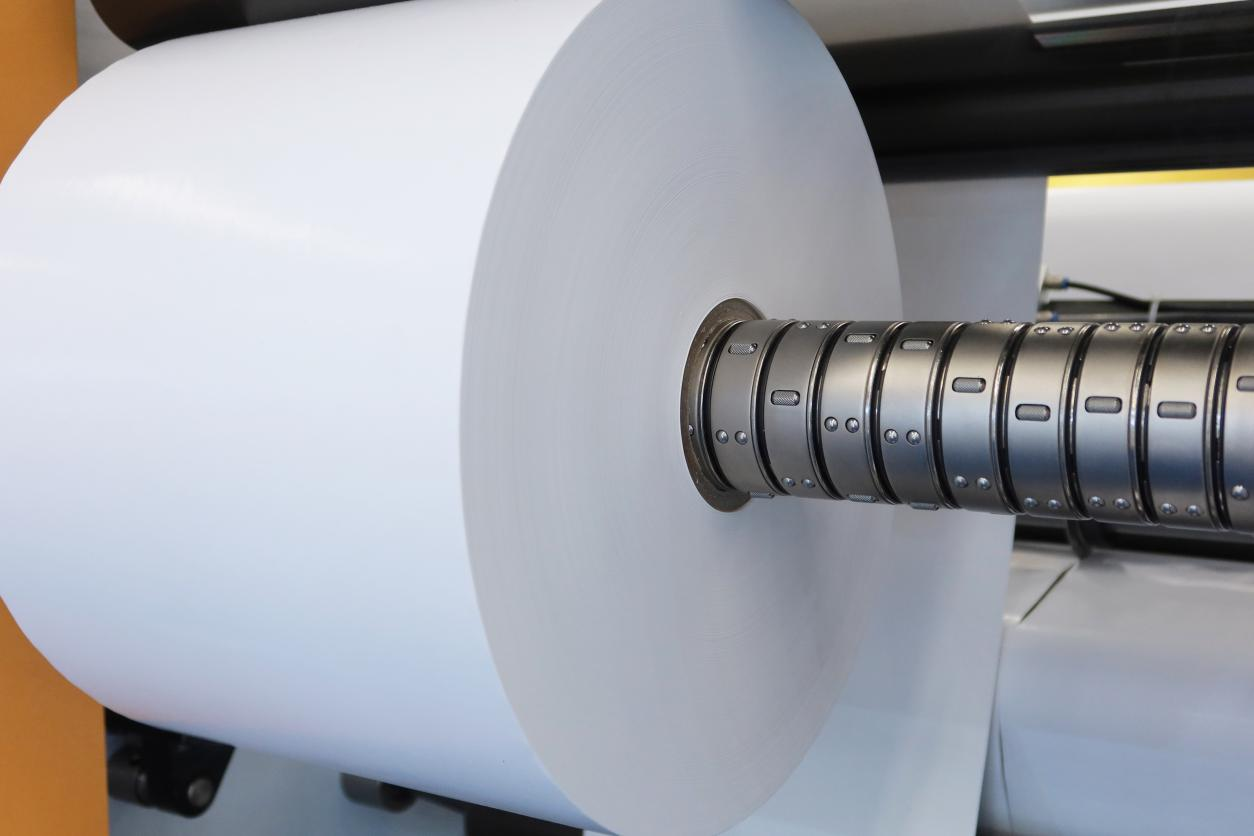

Yes, ok. Shaftless chuck support both 3 inch and 6 inch.
Yes ,can equip 6inch friction ring to support.
Machine as usual is integrated and we do not dismantle before delivery.
So just connect the power cable and air pipe is ok.
For the operation, we take instruction video for all customers before delivery to guide you how to operate, and provide the instruction file.
Also we provide service: our engineer and technician open live training until you learned it and run it well.
12 months guarantee, life-long time technic maintenance and support. 24 hours feedback when receive the client writing maintenance proposal.
Any part damage caused by non-human factors within the warranty period can be replaced for free, excluding machine consumable parts. Maintenance of part damage caused by violation operation or mis-operation of operators will be charged with costs of parts.
The price of spare parts exceeding the warranty period shall be the lowest ex-factory price of the seller.
For extra accessories beyond the standard configuration of contractual machine, the price shall be the lowest ex-factory price of the seller.
Any time you have question about slitter, we are always here to provide service.

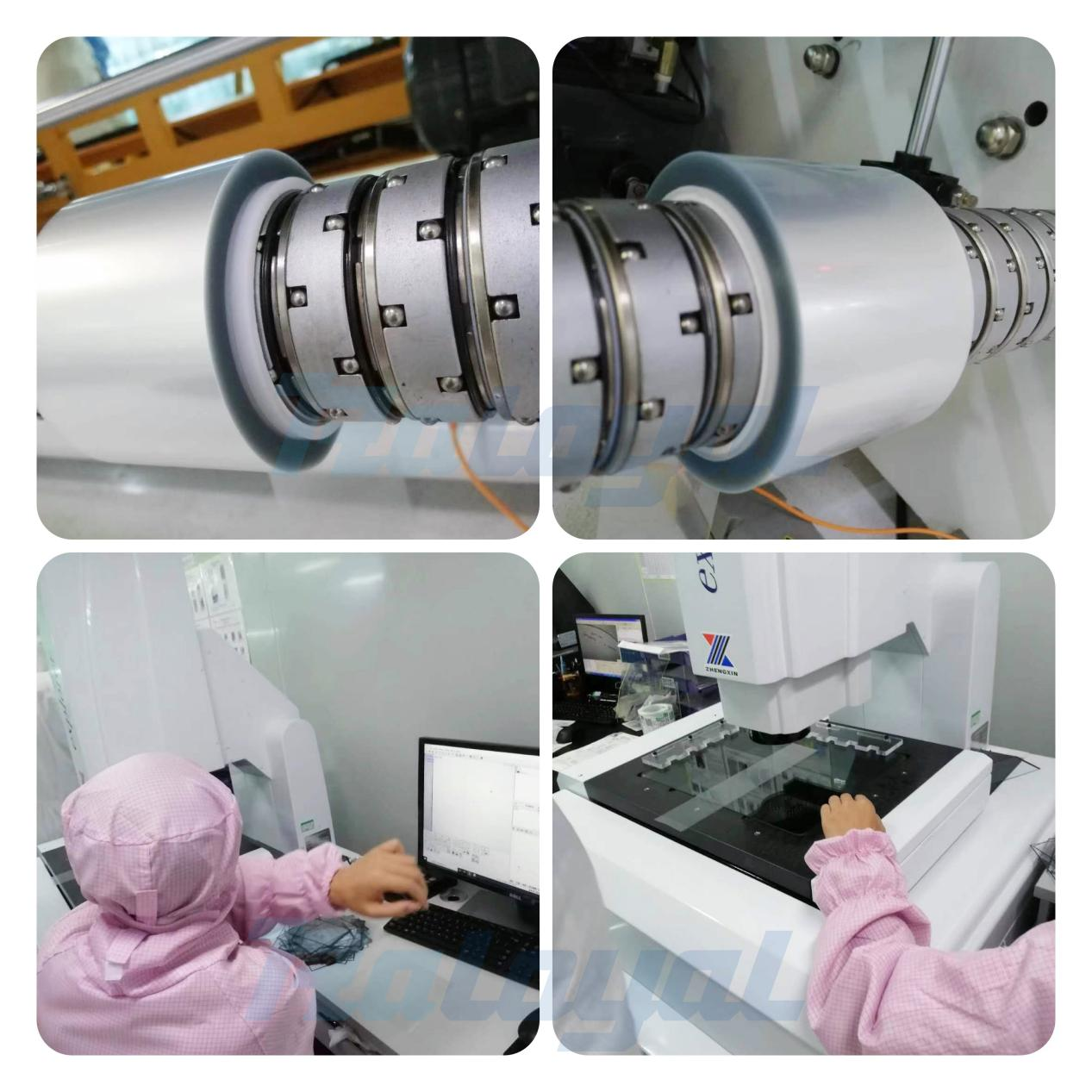

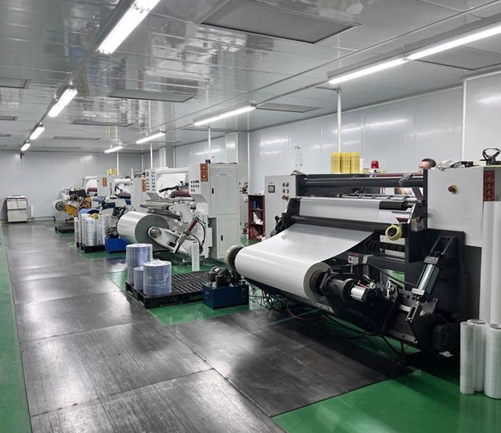

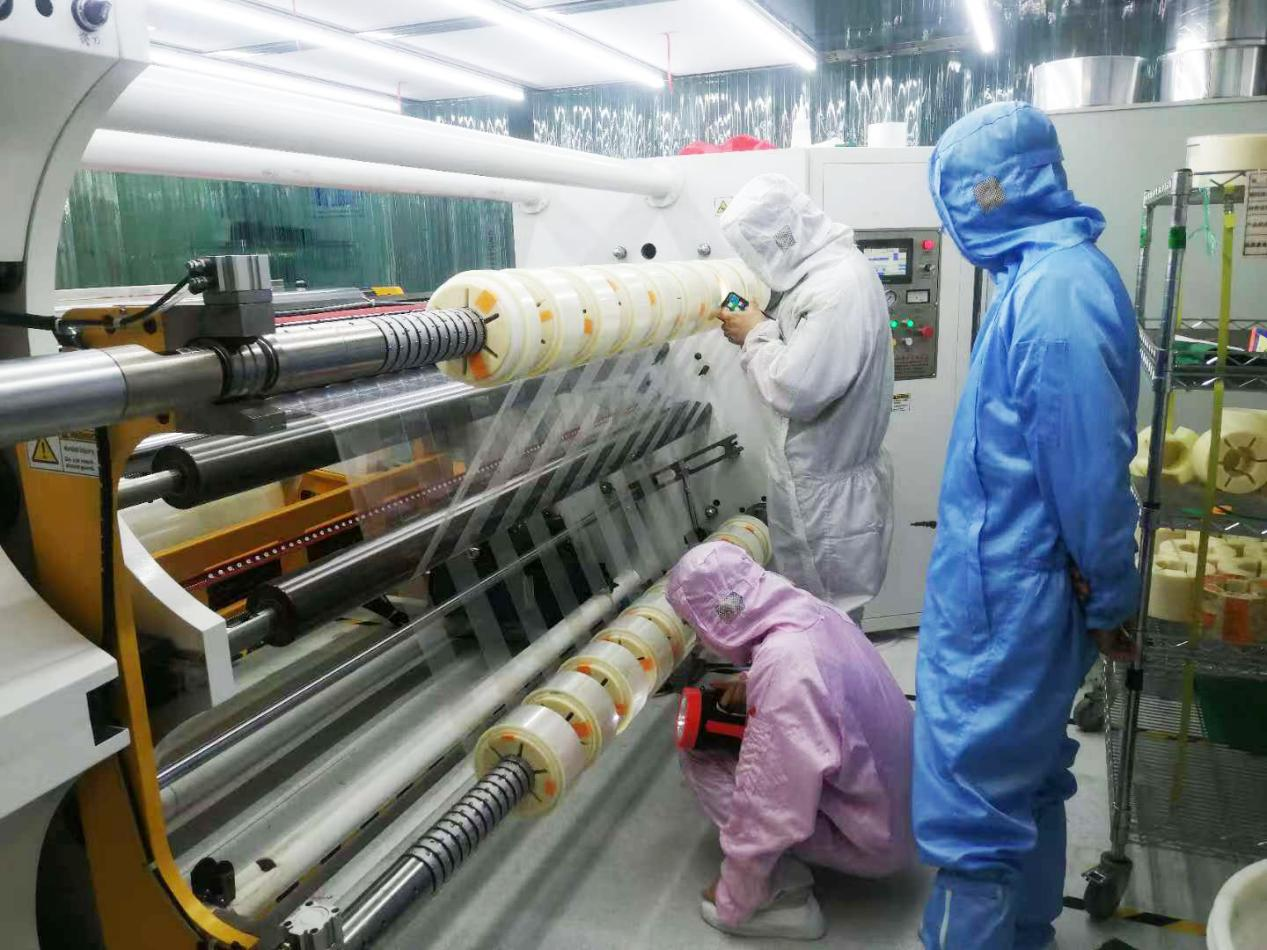

Machine running in Apple and Huawei supplier's factory
Operating environment: thousandgrade dust-free workshop

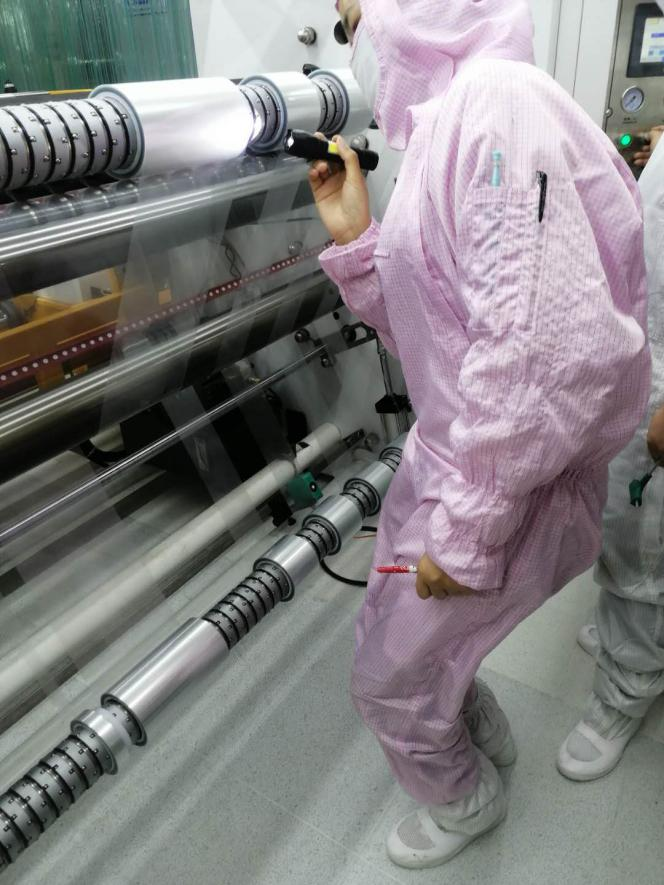

Slitting process control: During slitting, flashlights adopted to observe the scratches
Slitting detection: Microscope inspection, precision should be +0.1mm.

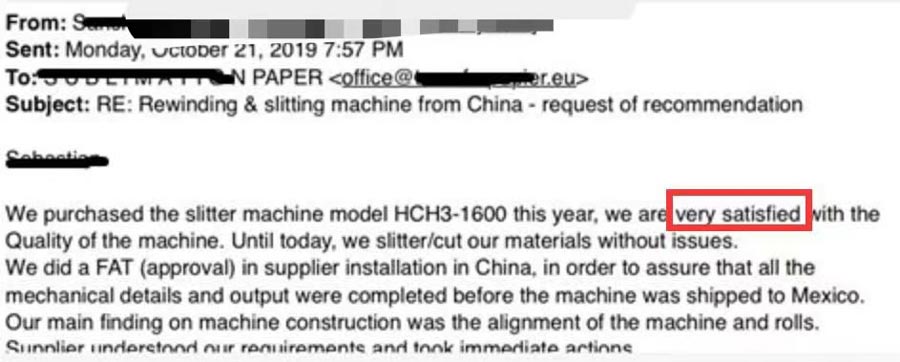

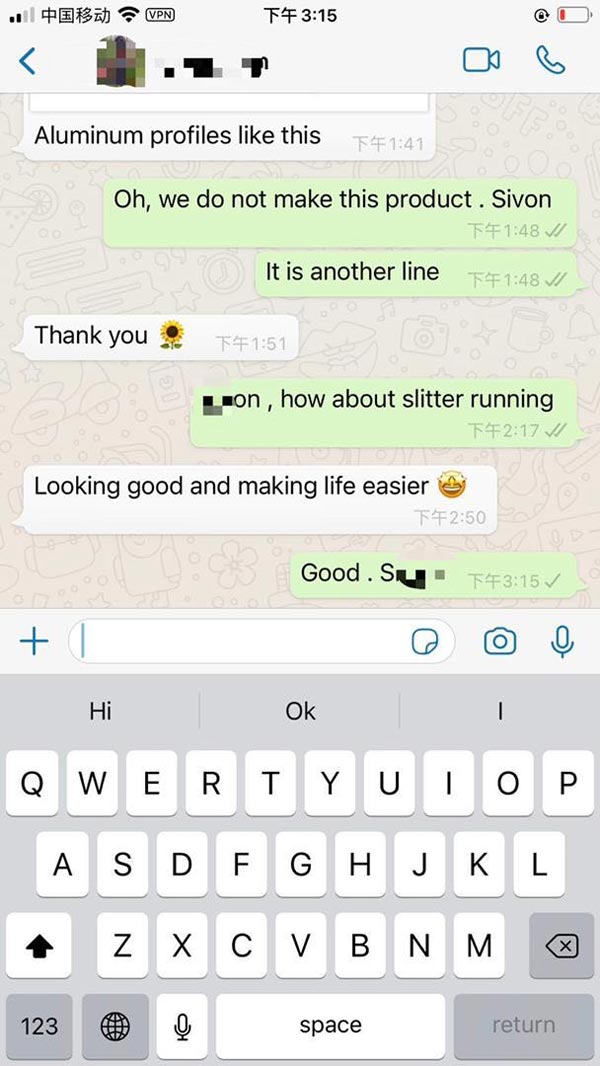

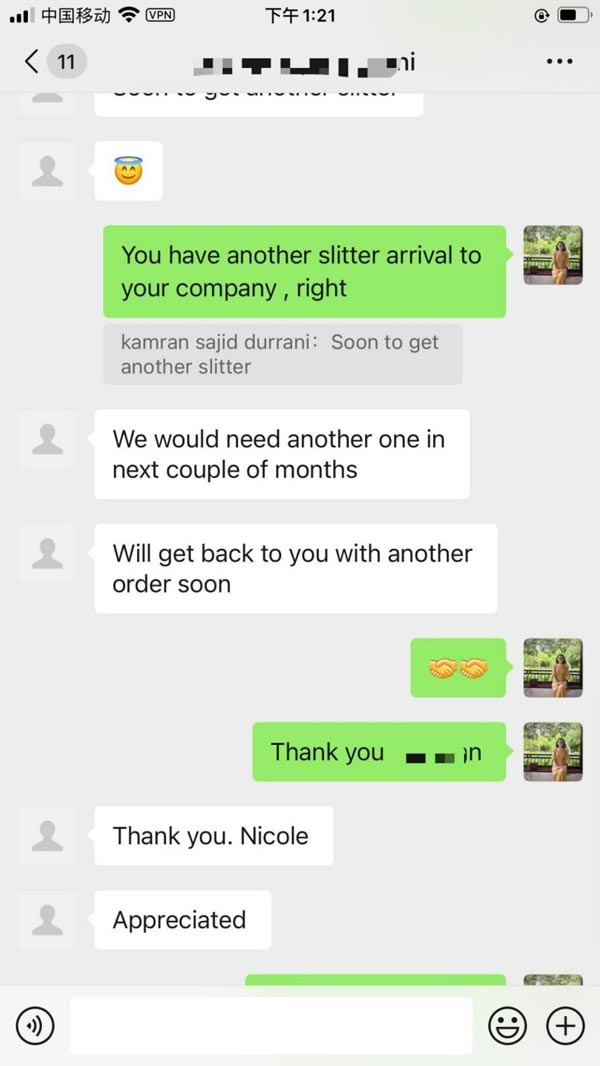

Most feedbacks we received from our customers is “Raloyal slitting machine is the most cost-efficient type slitter machine in the market”
Yes, exactly. Thanks for our regular customers frank and sincere praise for Raloyal.
TOP A Series Researched and developed from year 2018 and updated design on 2019, on this year, we set the overseas department and started to develop the overseas market. Also in this year, we met our good and reputable customer –AVERY. Technology manger Mr. FEDERICO and senior engineer Colin, they visited us on Dec.2018. We held a meeting to talk about the machine structure and the theory deeply by projector.

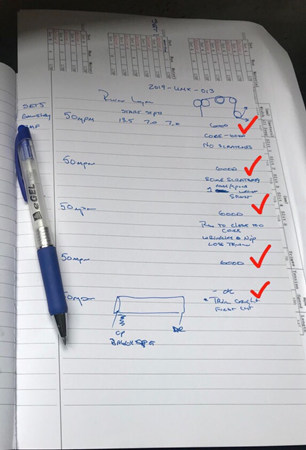

After machine finished, AVERY technology team came again for the FAT in our factory. The result is good without any doubt.

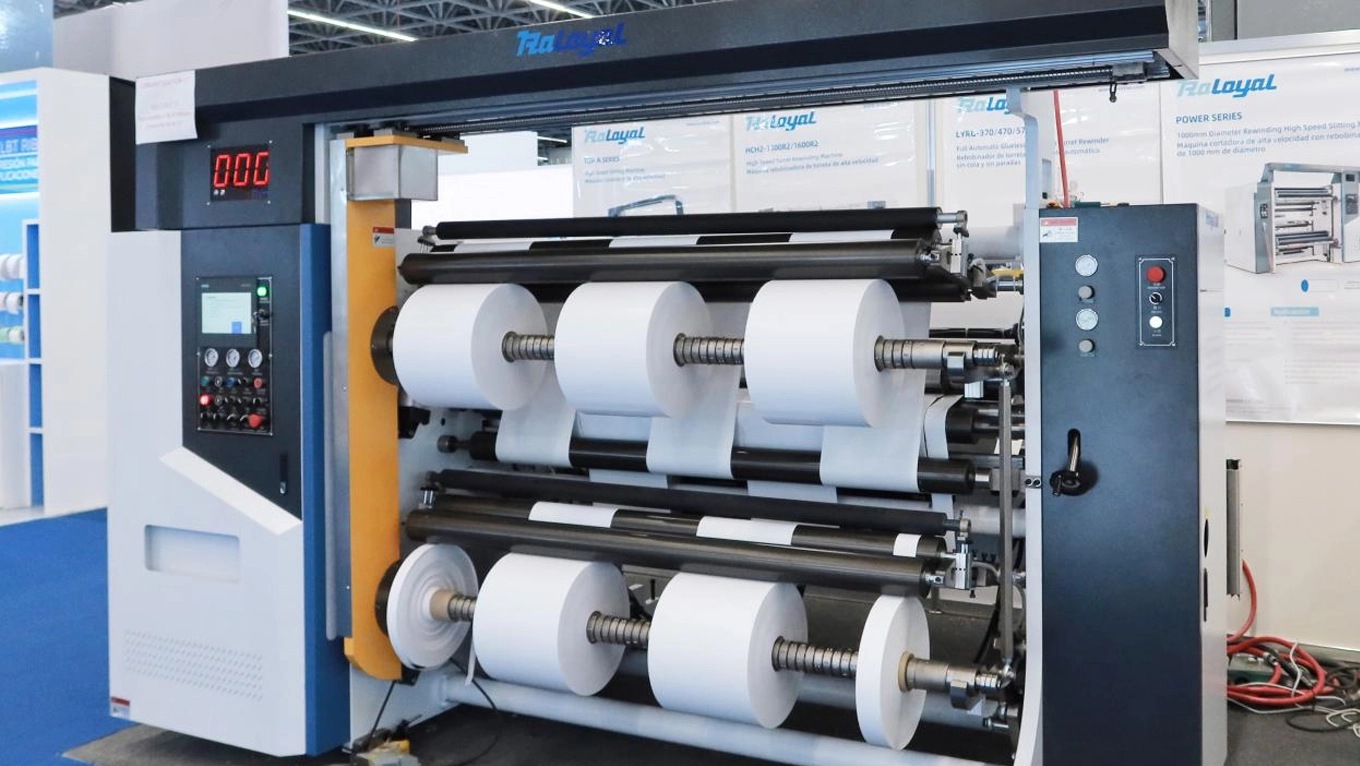

TOP A series slitting machine is our most hot selling machine. By now, we have sold more than 300 sets to all over the world. The number also proved that this slitter owning the matured technology and excellent quality---TOP A series slitter improved our customers manufacture time and reduced their cost.
Raloyal understand it is not easy for all the enterprise to run a company under the pandemic and also the war make the market dim. Raloyal is a company who are willing to and have did that minus their profit without compromising on quality to support the customers to overcome the current hard situation. Raloyal insist their mission all the time: Providing the sustainable, professional solution to the global customer with the most competitive price, excellent service, and lifetime support.
Raloyal, your loyal partner.
